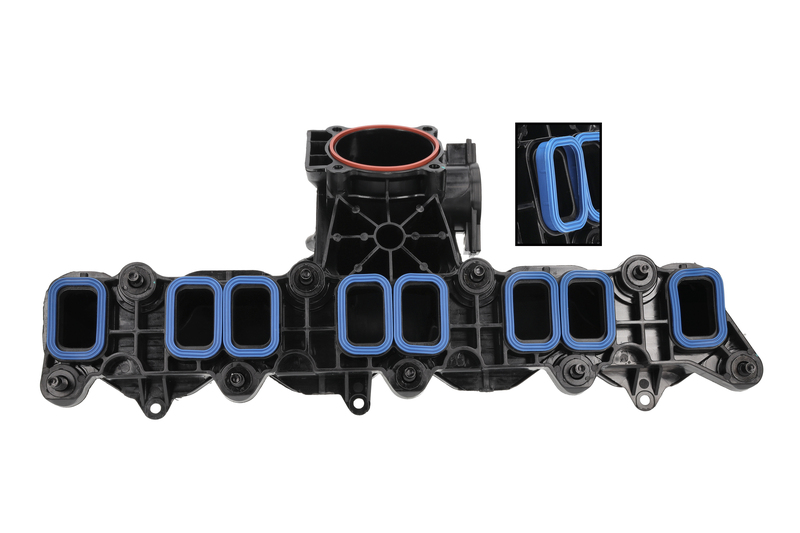

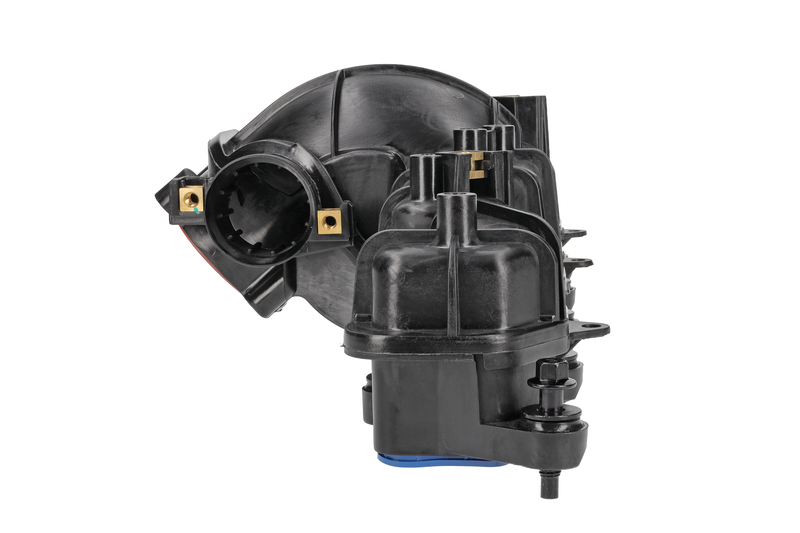

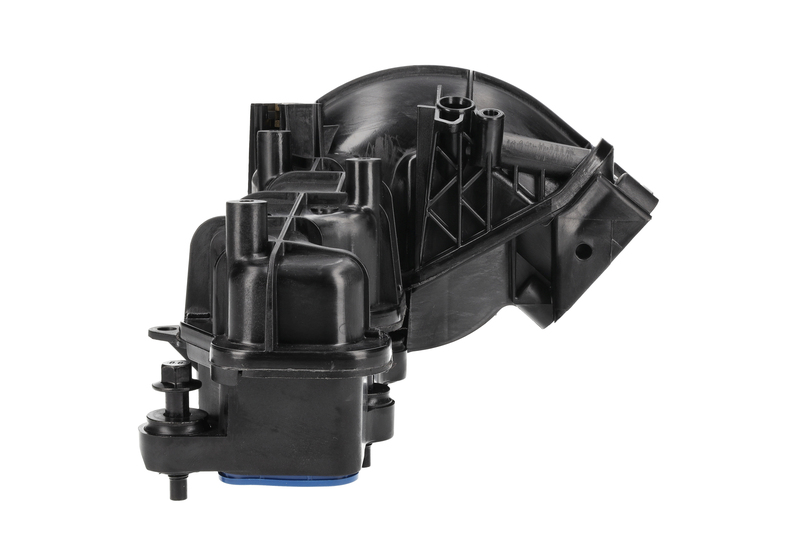

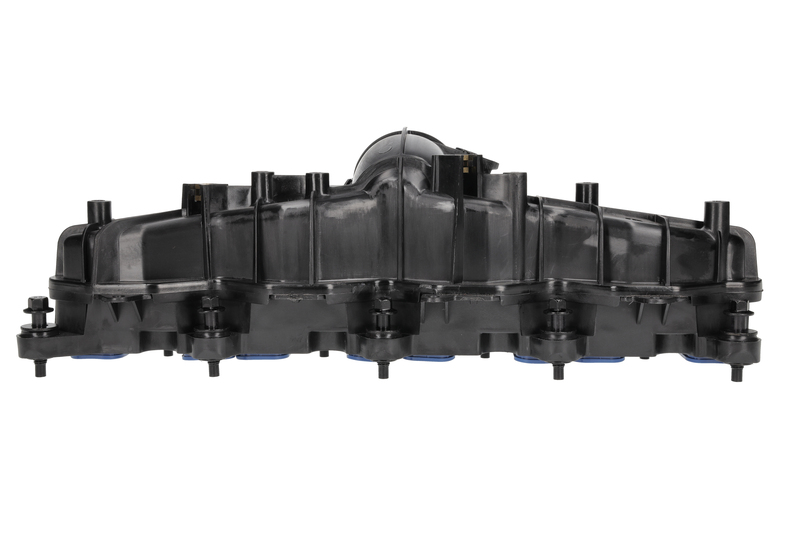

Intake Manifold Module
78247
| Quality | Original AIC quality |
| Supplementary Article/Supplementary Info: | with gaskets/seals |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| CITROEN | RELAY III Bus | 4HV (P22DTE) | 04/2006 | 06/2013 | 19578 | 0074 |
| CITROEN | RELAY III Bus | 4HG (P22DTE) | 07/2011 | 12/2020 | 12057 | 0081 |
| CITROEN | RELAY III Bus | 4HU (P22DTE) | 04/2006 | 12/2016 | 19579 | 0088 |
| CITROEN | RELAY III Bus | 4HH (P22DTE) | 07/2011 | 05/2016 | 12062 | 0096 |
| CITROEN | RELAY III Bus | 4HJ (P22DTE) | 07/2011 | 12/2016 | 12065 | 0110 |
| CITROEN | RELAY III Kasten | 4HV (P22DTE) | 04/2006 | 12/2012 | 19581 | 0074 |
| CITROEN | RELAY III Kasten | 4HG (P22DTE) | 07/2011 | 12/2020 | 12058 | 0081 |
| CITROEN | RELAY III Kasten | 4HU (P22DTE) | 04/2006 | 12/2016 | 19582 | 0088 |
| CITROEN | RELAY III Kasten | 4HH (P22DTE) | 07/2011 | 05/2016 | 12063 | 0096 |
| CITROEN | RELAY III Kasten | 4HJ (P22DTE) | 07/2011 | 12/2016 | 12066 | 0110 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HV (P22DTE) | 04/2006 | 06/2013 | 19584 | 0074 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HG (P22DTE) | 07/2011 | 12/2020 | 12060 | 0081 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HU (P22DTE) | 04/2006 | 12/2016 | 19585 | 0088 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HH (P22DTE) | 07/2006 | 12/2016 | 12064 | 0096 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HJ (P22DTE) | 07/2011 | 12/2016 | 12067 | 0110 |
| CITROEN | RELAY III Kasten | 01/2012 | 05/2016 | 138630 | 0096 | |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | DRFD, DRFC , DRFB , DRFE , DRFA | 10/2011 | 08/2014 | 11955 | 0074 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | DRRB, DRRC , DRRA | 10/2011 | 08/2014 | 11957 | 0074 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | CYFB, CYFD , CYFA , CYFC | 10/2011 | 08/2014 | 11956 | 0092 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | CYRB, CYRA | 09/2011 | 12/2014 | 11958 | 0092 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | USRB, USRA | 09/2011 | 08/2014 | 54979 | 0100 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | PGFA, PGFB , UHFA , UHFB , UHFC | 10/2007 | 08/2014 | 29970 | 0103 |
| FORD | TRANSIT TOURNEO Bus | PGFA, PGFB , UHFB , UHFA | 10/2007 | 08/2014 | 29972 | 0103 |
| FORD | TRANSIT Kasten (FA_ _) | DRFD, DRFC , DRFE , DRFA , DRFB | 10/2011 | 08/2014 | 11960 | 0074 |
| FORD | TRANSIT Kasten (FA_ _) | DRRA, DRRC , DRRB | 10/2011 | 08/2014 | 11961 | 0074 |
| FORD | TRANSIT Kasten (FA_ _) | CYFD, CYFA , CYFB , CYFC | 10/2011 | 08/2014 | 11962 | 0092 |
| FORD | TRANSIT Kasten (FA_ _) | CYRA, CYRB | 09/2011 | 12/2014 | 11963 | 0092 |
| FORD | TRANSIT Kasten (FA_ _) | CYRC, CYRB | 10/2011 | 08/2014 | 11965 | 0092 |
| FORD | TRANSIT Kasten (FA_ _) | PGFA, PGFB , UHFB , UHFA , UHFC | 10/2007 | 08/2014 | 29969 | 0103 |
| FORD | TRANSIT Kasten (FA_ _) | CVRC, CVRB , CVRA | 10/2011 | 08/2014 | 11964 | 0114 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | DRFA, DRFB , DRFC , DRFE , DRFD | 10/2011 | 08/2014 | 11966 | 0074 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | DRRC, DRRA , DRRB | 10/2011 | 08/2014 | 11967 | 0074 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | CYFC, CYFB , CYFD , CYFA | 10/2011 | 08/2014 | 11968 | 0092 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | CYRA, CYRB | 10/2011 | 08/2014 | 11969 | 0092 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | CYRC, CYRB | 10/2011 | 08/2014 | 11970 | 0092 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | PGFA, PGFB , UHFB , UHFC , UHFA | 10/2007 | 08/2014 | 29971 | 0103 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | CVRA, CVRC , CVRB | 10/2011 | 08/2014 | 11971 | 0114 |
| FORD | TOURNEO CUSTOM V362 Bus (F3) | DRFF, DRFG , DRF4 | 09/2012 | 12/2015 | 58535 | 0074 |
| FORD | TOURNEO CUSTOM V362 Bus (F3) | CYF4, CYFF | 09/2012 | 12/2015 | 58536 | 0092 |
| FORD | TOURNEO CUSTOM V362 Bus (F3) | CVFF | 09/2012 | 12/2015 | 58537 | 0114 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | DRF4, DRFG , DRFF | 09/2012 | 06/2016 | 58539 | 0074 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | CYF4, CYFF | 09/2012 | 12/2015 | 58540 | 0092 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | CVFF | 09/2012 | 12/2015 | 58541 | 0114 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | DRF4, DRFG , DRFF | 09/2012 | 06/2016 | 58543 | 0074 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | CYFF, CYF4 | 09/2012 | 12/2023 | 58544 | 0092 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | CVFF | 09/2012 | 12/2015 | 58545 | 0114 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | DRR5 | 08/2013 | 12/2018 | 107657 | 0074 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | DRFG, DRF5 , DRFF | 08/2013 | 12/2018 | 107811 | 0074 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | USR6 | 08/2013 | 12/2018 | 101100 | 0092 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | CYFG, CY14 , CYF5 | 08/2013 | 12/2018 | 107814 | 0092 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | CYR5, CY24 | 08/2013 | 12/2018 | 107819 | 0092 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | CV24, UYR6 , CVR5 | 08/2013 | 12/2018 | 101101 | 0114 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | CVF5 | 12/2014 | 12/2018 | 115815 | 0114 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | DRF5, DRFG , DRFF | 08/2013 | 12/2018 | 101110 | 0074 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | DRR5 | 08/2013 | 12/2018 | 101111 | 0074 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | CYF5, USF6 , CYFG , CY14 | 08/2013 | 12/2018 | 101108 | 0092 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | USR6 | 08/2013 | 12/2018 | 101106 | 0092 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | CY24, CYR5 | 08/2013 | 12/2018 | 101109 | 0092 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | CVF5 | 08/2013 | 12/2018 | 101104 | 0114 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | CV24, CVR5 , UYR6 | 08/2013 | 12/2018 | 101102 | 0114 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | CVR5, CV24 | 08/2015 | 12/2018 | 101103 | 0114 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | DRF5, DRFF , DRFG | 08/2013 | 12/2018 | 101112 | 0074 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | DRR5 | 08/2013 | 12/2018 | 101113 | 0074 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | CYF5 | 08/2013 | 12/2018 | 101114 | 0092 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | USR6 | 08/2013 | 12/2018 | 101115 | 0092 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | CY24, CYR5 | 08/2013 | 12/2018 | 101117 | 0092 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | CVF5 | 08/2013 | 12/2018 | 101118 | 0114 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | CVR5, UYR6 , CV24 | 08/2013 | 12/2018 | 101119 | 0114 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | CVR5, CV24 | 08/2013 | 12/2018 | 101122 | 0114 |
| FORD | TRANSIT Kasten (FA_ _) | 10/2011 | 08/2014 | 108639 | 0100 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 08/2013 | 12/2018 | 113619 | 0099 | |
| FORD | TRANSIT V363 Bus (FAD, FBD) | 08/2013 | 12/2018 | 120773 | 0099 | |
| FORD | TRANSIT V363 Bus (FAD, FBD) | 08/2015 | 12/2018 | 128597 | 0114 | |
| FORD | TRANSIT TOURNEO Bus | 10/2011 | 08/2014 | 131527 | 0092 | |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 10/2011 | 08/2014 | 145254 | 0114 | |
| JAGUAR | / | / | 13971 | |||
| JAGUAR | / | / | 13973 | |||
| LANDROVER | DEFENDER Pritsche/Fahrgestell (L316) | ZSD-422 | 08/2011 | 02/2016 | 56210 | 0090 |
| PEUGEOT | BOXER Bus | 4HV (P22DTE) | 04/2006 | 06/2013 | 19868 | 0074 |
| PEUGEOT | BOXER Bus | 4HG (P22DTE) | 03/2011 | 12/2020 | 11107 | 0081 |
| PEUGEOT | BOXER Bus | 4HU (P22DTE) | 04/2006 | 12/2016 | 19869 | 0088 |
| PEUGEOT | BOXER Bus | 4HH (P22DTE) | 03/2011 | 05/2016 | 11108 | 0096 |
| PEUGEOT | BOXER Bus | 4HJ (P22DTE) | 03/2011 | 12/2016 | 11109 | 0110 |
| PEUGEOT | BOXER Kasten | 4HV (P22DTE) | 04/2006 | 06/2013 | 19871 | 0074 |
| PEUGEOT | BOXER Kasten | 4HG (P22DTE) | 03/2011 | 12/2020 | 11112 | 0081 |
| PEUGEOT | BOXER Kasten | 4HU (P22DTE) | 04/2006 | 12/2016 | 19872 | 0088 |
| PEUGEOT | BOXER Kasten | 4HH (P22DTE) | 03/2011 | 05/2016 | 11113 | 0096 |
| PEUGEOT | BOXER Kasten | 4HJ (P22DTE) | 03/2011 | 12/2016 | 11114 | 0110 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HV (P22DTE) | 04/2006 | 06/2013 | 19874 | 0074 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HG (P22DTE) | 03/2011 | 12/2020 | 11115 | 0081 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HU (P22DTE) | 04/2006 | 12/2016 | 19875 | 0088 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HH (P22DTE) | 04/2006 | 05/2016 | 11116 | 0096 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HJ (P22DTE) | 03/2011 | 12/2016 | 11117 | 0110 |
| PEUGEOT | BOXER Kasten | 03/2011 | 05/2016 | 139362 | 0096 | |
| PEUGEOT | BOXER Kasten | 03/2011 | 12/2016 | 139364 | 0110 | |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 03/2011 | 05/2016 | 150604 | 0096 | |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 03/2011 | 12/2016 | 150605 | 0110 |
| Manufacturer | Comparison number |
|---|---|
| FORD | 1 731 753 |
| FORD | 1 746 721 |
| FORD | 1 770 548 |
| FORD | 2 545 517 |
| CITRO | 96 770 306 80 |
| PSA | 96 770 306 80 |
| PEUGE | 96 770 306 80 |
| FORD | BK2Q9424CD |
| FORD | BK2Q9424CE |
| LANDROVER | LR029717 |
| LANDROVER | LR039110 |
