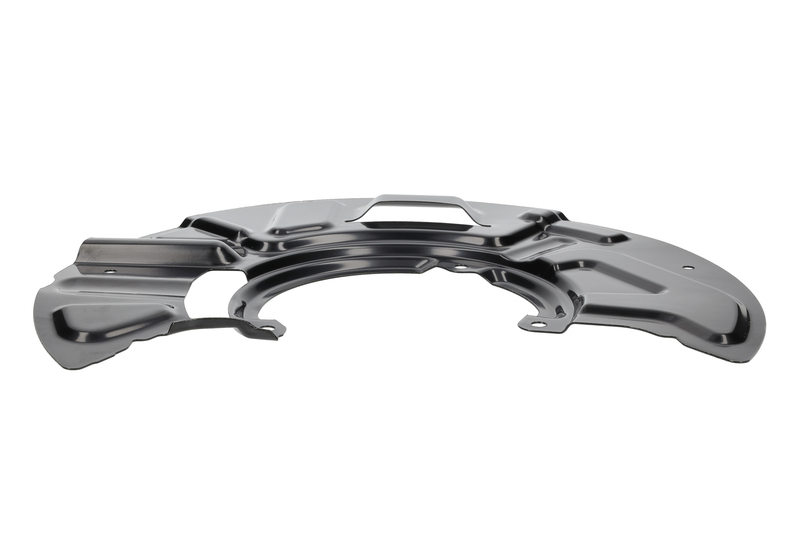

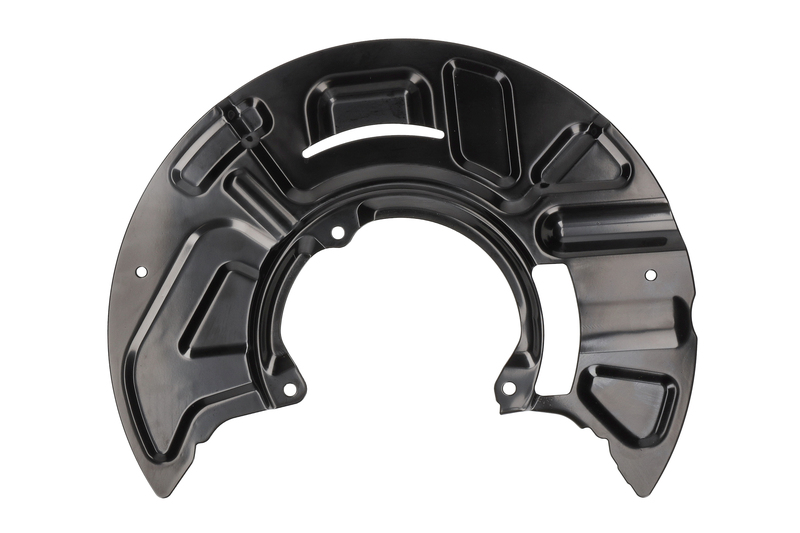

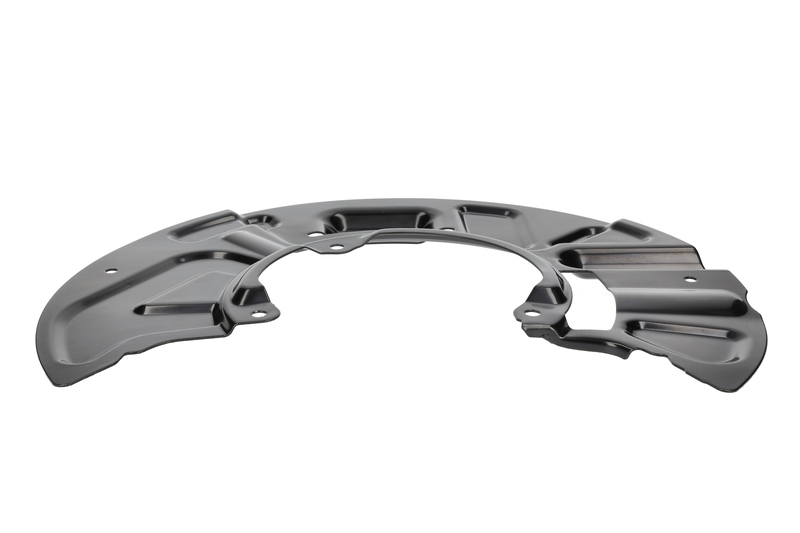

Splash Panel, brake disc
78256
| Quality | new mobility parts |
| Fitting Position: | Front Axle Left |
| Material: | Aluminium |
| Surface: | Cathodic Painting |
| Guarantee: | 5 years guarantee or up to 75,000km |
| paired article number: | 78257 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| FORD | TRANSIT CUSTOM V362 Bus (F3) | YNF6, YNFS | 12/2015 | 12/2023 | 118538 | 0125 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | YMFS, YMF6 | 12/2015 | 12/2023 | 118537 | 0096 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | DRF4, DRFG , DRFF | 09/2012 | 06/2016 | 58539 | 0074 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | CYF4, CYFF | 09/2012 | 12/2015 | 58540 | 0092 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | CVFF | 09/2012 | 12/2015 | 58541 | 0114 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | YLFS, YLF6 | 12/2015 | 12/2023 | 118533 | 0077 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | YMFS, YMF6 | 12/2015 | 12/2023 | 118534 | 0096 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | YNFS, YNF6 | 12/2015 | 12/2023 | 118535 | 0125 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | DRF4, DRFG , DRFF | 09/2012 | 06/2016 | 58543 | 0074 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | CYFF, CYF4 | 09/2012 | 12/2023 | 58544 | 0092 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | CVFF | 09/2012 | 12/2015 | 58545 | 0114 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | YLF6, YLFS | 03/2016 | / | 119481 | 0077 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | YMF6, YMFS | 03/2016 | / | 119482 | 0096 |
| FORD | TRANSIT V363 Bus (FAD, FBD) | YNF6, YNFS | 03/2016 | 06/2024 | 119483 | 0125 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | YLF6, YLFS | 03/2016 | / | 119468 | 0077 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | YMFS, YMF6 | 03/2016 | / | 119467 | 0096 |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | YNF6, YNFS | 03/2016 | 06/2024 | 119470 | 0125 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | YMF6, YMFS | 03/2016 | / | 119476 | 0096 |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | YNFS, YNF6 | 03/2016 | 06/2024 | 119477 | 0125 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 12/2015 | 12/2023 | 118536 | 0077 | |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | 05/2019 | / | 137558 | 0096 | |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | 05/2019 | 06/2024 | 137563 | 0125 | |
| FORD | TRANSIT V363 Bus (FAD, FBD) | 05/2019 | / | 137565 | 0096 | |
| FORD | TRANSIT V363 Bus (FAD, FBD) | 05/2019 | 06/2024 | 137566 | 0125 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 05/2019 | / | 137573 | 0096 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 05/2019 | 06/2024 | 137577 | 0125 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 05/2019 | 12/2023 | 137657 | 0136 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 05/2019 | 12/2023 | 137658 | 0136 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 05/2019 | 12/2023 | 137660 | 0096 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 05/2019 | 12/2023 | 137661 | 0125 | |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | 05/2019 | 12/2023 | 137698 | 0096 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 05/2019 | 12/2023 | 137701 | 0077 | |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | 04/2020 | 12/2023 | 137709 | 0092 | |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | 05/2019 | 12/2023 | 137710 | 0125 | |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | 05/2019 | 12/2023 | 137711 | 0136 | |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | 05/2019 | 12/2023 | 137712 | 0136 | |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | 05/2019 | / | 138182 | 0136 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 05/2019 | / | 138215 | 0136 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 04/2020 | 12/2023 | 141360 | 0092 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 01/2021 | / | 144673 | 0118 | |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | 01/2021 | / | 144674 | 0118 | |
| FORD | TRANSIT V363 Bus (FAD, FBD) | 10/2021 | / | 145763 | 0110 | |
| FORD | TRANSIT V363 Bus (FAD, FBD) | 10/2021 | / | 145764 | 0110 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 01/2022 | 12/2023 | 147111 | 0110 | |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | 01/2022 | 12/2023 | 147115 | 0110 | |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | 03/2022 | 06/2025 | 147339 | 0135 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 03/2022 | 06/2025 | 147357 | 0135 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 03/2022 | 06/2025 | 147358 | 0198 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 01/2018 | 12/2019 | 151945 | 0205 | |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | 05/2022 | / | 152699 | 0114 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 05/2022 | / | 152700 | 0114 | |
| FORD | TRANSIT V363 Kasten (FCD, FDD) | 07/2023 | / | 155574 | 0121 | |
| FORD | TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) | 07/2023 | / | 155576 | 0121 | |
| FORD | TRANSIT V363 Bus (FAD, FBD) | 07/2023 | / | 155578 | 0121 |
| Manufacturer | Comparison number |
|---|---|
| FORD | 2 351 365 |
| FORD | 2 421 781 |
| FORD | 2 600 501 |
| 2351365 | |
| 2421781 | |
| KK21-2K005-AD | |
| FORD | KK212K005AD |
