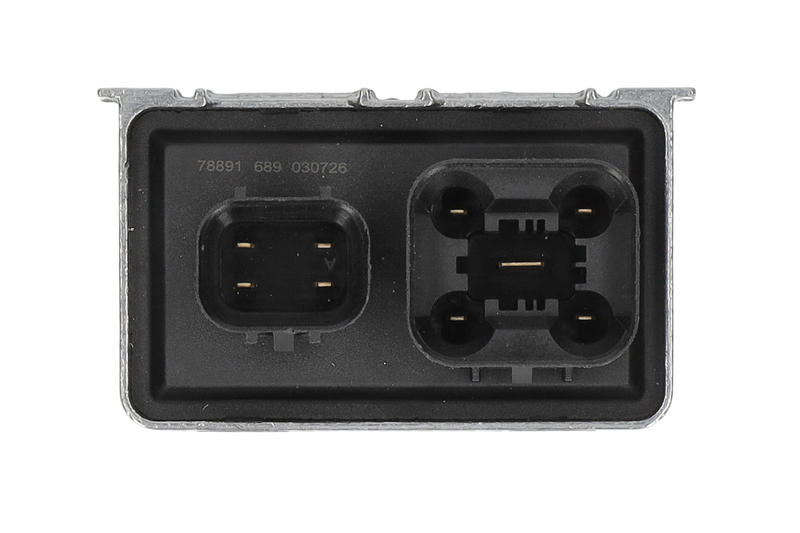

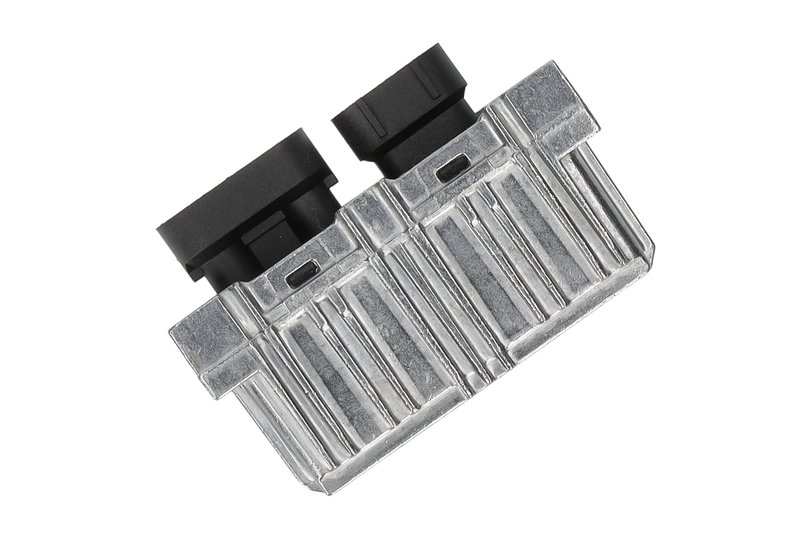

Control Unit, glow time
78891
| Quality | Origina |
| Voltage [V]: | 12 V |
| Number of pins: | 9 -pin connector |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| OPEL | INSIGNIA A Stuf | A 20 D | 07/2008 | 03/2017 | 28225 | 0081 |
| OPEL | INSIGNIA A Stuf | A 20 D | 03/2012 | 03/2017 | 59256 | 0088 |
| OPEL | INSIGNIA A Stuf | A 20 D | 07/2008 | 03/2017 | 28226 | 0096 |
| OPEL | INSIGNIA A Stuf | A 20 D | 06/2013 | 03/2017 | 20737 | 0103 |
| OPEL | INSIGNIA A Stuf | A 20 D | 07/2008 | 03/2017 | 28227 | 0118 |
| OPEL | INSIGNIA A Stuf | A 20 D | 06/2010 | 03/2017 | 33845 | 0118 |
| OPEL | INSIGNIA A Stuf | A 20 D | 07/2013 | 03/2017 | 26831 | 0120 |
| OPEL | INSIGNIA A Stuf | A 20 D | 07/2013 | 03/2017 | 33191 | 0120 |
| OPEL | INSIGNIA A Stuf | A 20 D | 01/2012 | 03/2017 | 13732 | 0143 |
| OPEL | INSIGNIA A Stuf | A 20 D | 01/2012 | 03/2017 | 13734 | 0143 |
| OPEL | INSIGNIA A Spor | A 20 D | 07/2008 | 06/2013 | 29927 | 0081 |
| OPEL | INSIGNIA A Spor | A 20 D | 03/2012 | 06/2015 | 59255 | 0088 |
| OPEL | INSIGNIA A Spor | A 20 D | 07/2008 | 06/2015 | 29928 | 0096 |
| OPEL | INSIGNIA A Spor | A 20 D | 07/2013 | 06/2015 | 27483 | 0103 |
| OPEL | INSIGNIA A Spor | A 20 D | 07/2008 | 06/2015 | 29929 | 0118 |
| OPEL | INSIGNIA A Spor | A 20 D | 06/2010 | 06/2015 | 33847 | 0118 |
| OPEL | INSIGNIA A Spor | A 20 D | 07/2013 | 06/2015 | 26883 | 0120 |
| OPEL | INSIGNIA A Spor | A 20 D | 07/2013 | 06/2015 | 23849 | 0120 |
| OPEL | INSIGNIA A Spor | A 20 D | 01/2012 | 06/2015 | 13737 | 0143 |
| OPEL | INSIGNIA A Spor | A 20 D | 01/2012 | 06/2015 | 13736 | 0143 |
| OPEL | MERIVA B Großra | A 13 D | 06/2010 | 10/2013 | 33851 | 0055 |
| OPEL | MERIVA B Großra | A 13 D | 06/2010 | 11/2014 | 33852 | 0070 |
| OPEL | ZAFIRA TOURER C | A 20 D | 10/2011 | 10/2014 | 11710 | 0081 |
| OPEL | ZAFIRA TOURER C | Y 20 D | 10/2011 | 11/2018 | 11330 | 0096 |
| OPEL | ZAFIRA TOURER C | A 20 D | 10/2011 | 10/2014 | 11329 | 0121 |
| OPEL | ZAFIRA TOURER C | A 20 D | 01/2013 | 10/2014 | 57296 | 0143 |
| OPEL | INSIGNIA A (G09 | 07/2008 | 12/2011 | 29930 | 0140 | |
| OPEL | INSIGNIA A Spor | 07/2008 | 03/2017 | 29932 | 0140 | |
| OPEL | INSIGNIA A (G09 | 05/2009 | 12/2011 | 31122 | 0140 | |
| OPEL | INSIGNIA A Stuf | 07/2008 | 12/2011 | 31123 | 0140 | |
| OPEL | INSIGNIA A Spor | 07/2008 | 03/2017 | 31124 | 0140 | |
| OPEL | ASTRA J Caravan | 01/2014 | 10/2015 | 11785 | 0096 | |
| OPEL | INSIGNIA A Coun | 09/2013 | 03/2017 | 12867 | 0120 | |
| OPEL | INSIGNIA A Coun | 09/2013 | 03/2017 | 12867 | 0143 | |
| OPEL | INSIGNIA A Coun | 07/2014 | 03/2017 | 12867 | 0120 | |
| OPEL | INSIGNIA A Coun | 07/2008 | 03/2017 | 12867 | 0096 | |
| OPEL | INSIGNIA A Coun | 03/2012 | 03/2017 | 12867 | 0088 | |
| OPEL | ASTRA J GTC | 01/2012 | 10/2015 | 13253 | 0096 | |
| OPEL | ASTRA J Kasten/ | 10/2012 | 10/2015 | 13274 | 0070 | |
| OPEL | ASTRA J Kasten/ | 10/2012 | 10/2015 | 13275 | 0121 | |
| OPEL | ASTRA J Stufenh | A 13 D | 06/2012 | 10/2015 | 55383 | 0070 |
| OPEL | ASTRA J (P10) | A 13 D | 12/2009 | 10/2015 | 32090 | 0070 |
| OPEL | ASTRA J (P10) | A 20 D | 09/2009 | 10/2015 | 32093 | 0118 |
| OPEL | ASTRA J (P10) | A 20 D | 06/2011 | 10/2015 | 10445 | 0121 |
| OPEL | ASTRA J (P10) | A 20 D | 09/2012 | 10/2015 | 57392 | 0143 |
| OPEL | ASTRA J GTC | A 20 D | 01/2012 | 06/2015 | 10475 | 0121 |
| OPEL | ASTRA J GTC | A 20 D | 10/2013 | 06/2015 | 57391 | 0143 |
| OPEL | ASTRA J Caravan | A 13 D | 10/2010 | 10/2014 | 986 | 0070 |
| OPEL | ASTRA J Caravan | A 20 D | 10/2010 | 10/2015 | 1026 | 0118 |
| OPEL | ASTRA J Caravan | A 20 D | 08/2011 | 10/2015 | 12033 | 0121 |
| OPEL | ASTRA J Caravan | A 20 D | 09/2012 | 10/2015 | 57395 | 0143 |
| OPEL | ANTARA A (L07) | A 22 D | 12/2010 | 12/2015 | 7240 | 0120 |
| OPEL | ANTARA A (L07) | A 22 D | 12/2010 | 12/2015 | 7241 | 0120 |
| OPEL | ANTARA A (L07) | A 22 D | 12/2010 | 12/2015 | 7242 | 0135 |
| OPEL | CASCADA (W13) | A 20 D | 04/2013 | 06/2015 | 58710 | 0121 |
| OPEL | CASCADA (W13) | A 20 D | 04/2013 | 06/2015 | 58711 | 0143 |
| OPEL | CORSA D (S07) | Z 13 D | 07/2006 | 08/2014 | 19725 | 0055 |
| OPEL | CORSA D (S07) | A 13 D | 06/2009 | 08/2014 | 33721 | 0070 |
| OPEL | CORSA D Kasten/ | Z 13 D | 07/2006 | 08/2014 | 9171 | 0055 |
| OPEL | CORSA D Kasten/ | A 13 D | 11/2009 | 08/2014 | 9175 | 0070 |
| OPEL | INSIGNIA A (G09 | A 20 D | 07/2008 | 03/2017 | 28218 | 0081 |
| OPEL | INSIGNIA A (G09 | A 20 D | 03/2012 | 03/2017 | 59257 | 0088 |
| OPEL | INSIGNIA A (G09 | A 20 D | 07/2008 | 03/2017 | 28219 | 0096 |
| OPEL | INSIGNIA A (G09 | A 20 D | 06/2013 | 03/2017 | 20739 | 0103 |
| OPEL | INSIGNIA A (G09 | A 20 D | 07/2008 | 03/2017 | 28220 | 0118 |
| OPEL | INSIGNIA A (G09 | A 20 D | 06/2010 | 03/2017 | 33844 | 0118 |
| OPEL | INSIGNIA A (G09 | A 20 D | 07/2013 | 03/2017 | 24303 | 0120 |
| OPEL | INSIGNIA A (G09 | A 20 D | 07/2013 | 03/2017 | 29806 | 0120 |
| OPEL | INSIGNIA A (G09 | A 20 D | 01/2012 | 03/2017 | 13727 | 0143 |
| OPEL | INSIGNIA A (G09 | A 20 D | 01/2012 | 03/2017 | 13729 | 0143 |
| Manufacturer | Comparison number |
|---|---|
| OPEL | 12 32 331 |
| OPEL | 12 37 233 |
| OPEL | 12 37 783 |
| SAAB | 55 574 293 |
| 55574293 |
