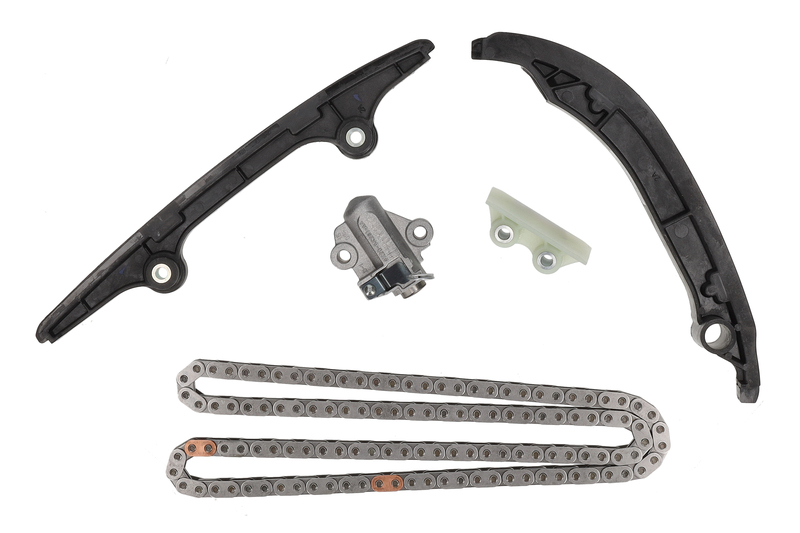

Timing Chain Kit
59018Set
| Quality | iwis original OEM quality, Made in Germany |
| Fitting Position: | Upper |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,Check and replace gears if necessary |
| Number of chain links: | 122 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| ABARTH | / | / | 19977 | |||
| ABARTH | / | / | 19980 | |||
| ABARTH | / | / | 19974 | |||
| CITROEN | RELAY III Bus | 4HV (P22DTE) | 04/2006 | 06/2013 | 19578 | 0074 |
| CITROEN | RELAY III Bus | 4HU (P22DTE) | 04/2006 | 12/2016 | 19579 | 0088 |
| CITROEN | RELAY III Kasten | 4HV (P22DTE) | 04/2006 | 12/2012 | 19581 | 0074 |
| CITROEN | RELAY III Kasten | 4HG (P22DTE) | 07/2011 | 12/2020 | 12058 | 0081 |
| CITROEN | RELAY III Kasten | 4HU (P22DTE) | 04/2006 | 12/2016 | 19582 | 0088 |
| CITROEN | RELAY III Kasten | 4HH (P22DTE) | 07/2011 | 05/2016 | 12063 | 0096 |
| CITROEN | RELAY III Kasten | 4HJ (P22DTE) | 07/2011 | 12/2016 | 12066 | 0110 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HV (P22DTE) | 04/2006 | 06/2013 | 19584 | 0074 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HG (P22DTE) | 07/2011 | 12/2020 | 12060 | 0081 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HU (P22DTE) | 04/2006 | 12/2016 | 19585 | 0088 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HH (P22DTE) | 07/2006 | 12/2016 | 12064 | 0096 |
| CITROEN | RELAY III Pritsche/Fahrgestell | 4HJ (P22DTE) | 07/2011 | 12/2016 | 12067 | 0110 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | ABFA | 08/2000 | 05/2006 | 15642 | 0074 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | FIFA | 08/2002 | 05/2006 | 16877 | 0092 |
| FORD | TRANSIT Van (FA_ _) | ABFA | 08/2000 | 05/2006 | 15644 | 0074 |
| FORD | TRANSIT Van (FA_ _) | FIFA | 08/2002 | 05/2006 | 16879 | 0092 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _) | ABFA | 08/2000 | 05/2006 | 15646 | 0074 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _) | FIFA | 08/2002 | 05/2006 | 16878 | 0092 |
| FORD | TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | PGFA, PGFB , UHFA , UHFB , UHFC | 10/2007 | 08/2014 | 29970 | 0103 |
| FORD | TRANSIT Kasten (FA_ _) | PGFA, PGFB , UHFB , UHFA , UHFC | 10/2007 | 08/2014 | 29969 | 0103 |
| FORD | TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) | PGFA, PGFB , UHFB , UHFC , UHFA | 10/2007 | 08/2014 | 29971 | 0103 |
| FORD | TOURNEO CUSTOM V362 Bus (F3) | DRFF, DRFG , DRF4 | 09/2012 | 12/2015 | 58535 | 0074 |
| FORD | TOURNEO CUSTOM V362 Bus (F3) | CYF4, CYFF | 09/2012 | 12/2015 | 58536 | 0092 |
| FORD | TOURNEO CUSTOM V362 Bus (F3) | CVFF | 09/2012 | 12/2015 | 58537 | 0114 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | DRF4, DRFG , DRFF | 09/2012 | 06/2016 | 58539 | 0074 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | CYF4, CYFF | 09/2012 | 12/2015 | 58540 | 0092 |
| FORD | TRANSIT CUSTOM V362 Bus (F3) | CVFF | 09/2012 | 12/2015 | 58541 | 0114 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | DRF4, DRFG , DRFF | 09/2012 | 06/2016 | 58543 | 0074 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | CYFF, CYF4 | 09/2012 | 12/2023 | 58544 | 0092 |
| FORD | TRANSIT CUSTOM V362 Kasten (FY, FZ) | CVFF | 09/2012 | 12/2015 | 58545 | 0114 |
| PEUGEOT | BOXER Bus | 4HV (P22DTE) | 04/2006 | 06/2013 | 19868 | 0074 |
| PEUGEOT | BOXER Bus | 4HG (P22DTE) | 03/2011 | 12/2020 | 11107 | 0081 |
| PEUGEOT | BOXER Bus | 4HU (P22DTE) | 04/2006 | 12/2016 | 19869 | 0088 |
| PEUGEOT | BOXER Bus | 4HH (P22DTE) | 03/2011 | 05/2016 | 11108 | 0096 |
| PEUGEOT | BOXER Bus | 4HJ (P22DTE) | 03/2011 | 12/2016 | 11109 | 0110 |
| PEUGEOT | BOXER Kasten | 4HV (P22DTE) | 04/2006 | 06/2013 | 19871 | 0074 |
| PEUGEOT | BOXER Kasten | 4HG (P22DTE) | 03/2011 | 12/2020 | 11112 | 0081 |
| PEUGEOT | BOXER Kasten | 4HU (P22DTE) | 04/2006 | 12/2016 | 19872 | 0088 |
| PEUGEOT | BOXER Kasten | 4HH (P22DTE) | 03/2011 | 05/2016 | 11113 | 0096 |
| PEUGEOT | BOXER Kasten | 4HJ (P22DTE) | 03/2011 | 12/2016 | 11114 | 0110 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HV (P22DTE) | 04/2006 | 06/2013 | 19874 | 0074 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HG (P22DTE) | 03/2011 | 12/2020 | 11115 | 0081 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HU (P22DTE) | 04/2006 | 12/2016 | 19875 | 0088 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HH (P22DTE) | 04/2006 | 05/2016 | 11116 | 0096 |
| PEUGEOT | BOXER Pritsche/Fahrgestell | 4HJ (P22DTE) | 03/2011 | 12/2016 | 11117 | 0110 |
| PEUGEOT | BOXER Kasten | 03/2011 | 05/2016 | 139362 | 0096 | |
| PEUGEOT | BOXER Kasten | 03/2011 | 12/2016 | 139364 | 0110 |
| Manufacturer | Comparison number |
|---|---|
| FORD | 1 372 427 |
| FORD | 1 372 434 |
| FORD | 1 372 438 |
| FORD | 1 704 049 |
| FORD | 1 704 066 |
| FORD | 1 704 067 |
| FORD | 1 704 087 |
| CITRO | 96 757 776 80 |
| PEUGE | 96 757 776 80 |
| CITRO | 96 774 277 80 |
| PEUGE | 96 774 277 80 |
| FIAT | 96594 38580 |
| FIAT | 96596 79980 |
| FIAT | 96596 80180 |
| FIAT | 96757 77680 |
| FIAT | 96758 05880 |
| FIAT | 96758 05980 |
| FIAT | 96774 27780 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59172 | 1 | |
| Guides, timing chain | 59232 | 1 | |
| Guides, timing chain | 59233 | 1 | |
| Guides, timing chain | 59234 | 1 | |
| Tensioner, timing chain | 59276 | 1 |
