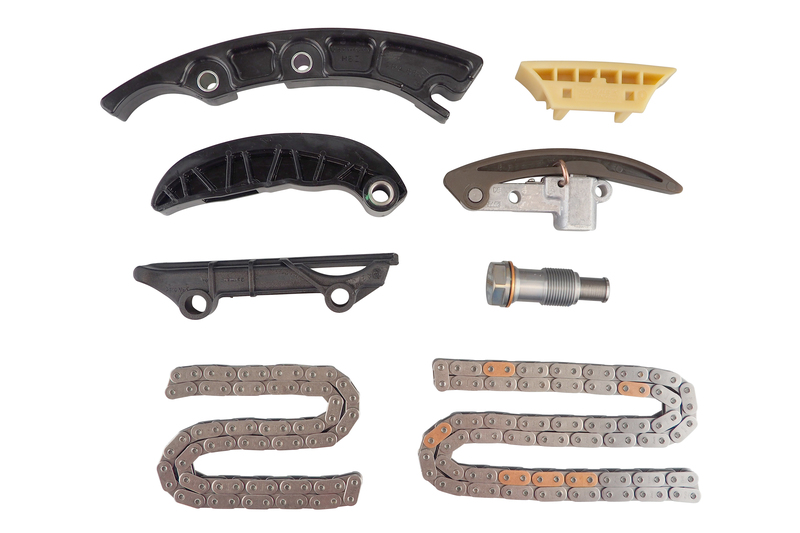

Timing Chain Kit
59824Set
| Quality | iwis original OEM quality, Made in Germany |
| Fitting Position: | Left,Right |
| Supplementary Article/Supplementary Info: | with slide rail,with chain tensioner,Check and replace gears if necessary |
| Number of chain links: | 70,98 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| SKODA | SUPERB II (3T4) | CDVA | 11/2008 | 05/2015 | 28258 | 0191 |
| SKODA | SUPERB II Kombi (3T5) | CDVA | 10/2009 | 05/2015 | 32786 | 0191 |
| VW | PASSAT B6 (3C2) | AXZ | 11/2005 | 07/2010 | 19485 | 0184 |
| VW | PASSAT B6 (3C2) | BWS | 04/2007 | 07/2010 | 22531 | 0220 |
| VW | PASSAT B6 Estate (3C5) | AXZ | 11/2005 | 11/2010 | 19486 | 0184 |
| VW | PASSAT B6 Estate (3C5) | BWS | 04/2007 | 11/2010 | 22532 | 0220 |
| VW | PASSAT CC B6 (357) | BWS | 02/2008 | 12/2011 | 26608 | 0220 |
| VW | CC B7 (358) | BWS | 11/2011 | 12/2016 | 26739 | 0220 |
| VW | TOUAREG (7LA, 7L6, 7L7) | BHL, BHK | 10/2005 | 05/2010 | 19455 | 0206 |
| VW | TOUAREG (7P5, 7P6) | CGRA | 04/2010 | 03/2018 | 33306 | 0206 |
| VW | EOS (1F7, 1F8) | CDVA | 05/2009 | 11/2010 | 31105 | 0191 |
| VW | TOUAREG (7P5, 7P6) | 08/2010 | 03/2018 | 8359 | 0183 | |
| AUDI | Q7 (4LB) | BHK | 08/2006 | 05/2010 | 19803 | 0206 |
| PORSCHE | CAYENNE (92A) | M 55.02, MCE.YA | 06/2010 | 12/2018 | 33662 | 0220 |
| Manufacturer | Comparison number |
|---|---|
| SKODA | 021 109 465B |
| VW | 021 109 465B |
| VAG | 021 109 465B |
| AUDI | 021 109 465B |
| SKODA | 021 109 465 |
| VW | 021 109 465 |
| VAG | 021 109 465 |
| AUDI | 021 109 465 |
| SKODA | 021 109 467 |
| VW | 021 109 467 |
| VAG | 021 109 467 |
| AUDI | 021 109 467 |
| SKODA | 03H 109 503 |
| VW | 03H 109 503 |
| VAG | 03H 109 503 |
| AUDI | 03H 109 503 |
| SKODA | 03H 109 507 |
| VW | 03H 109 507 |
| VAG | 03H 109 507 |
| AUDI | 03H 109 507 |
| SKODA | 03H 109 509 |
| VW | 03H 109 509 |
| VAG | 03H 109 509 |
| AUDI | 03H 109 509 |
| SKODA | 03H 109 513B |
| VW | 03H 109 513B |
| VAG | 03H 109 513B |
| AUDI | 03H 109 513B |
| SKODA | 066 109 514A |
| VW | 066 109 514A |
| VAG | 066 109 514A |
| AUDI | 066 109 514A |
| PORSC | 955 105 066 00 |
| PORSC | 955 105 169 00 |
| PORSC | 955 105 465 00 |
| PORSC | 955 105 465 01 |
| PORSC | 955 105 467 00 |
| PORSC | 955 105 514 00 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59965 | 1 | |
| Chain, intermediate shaft | 59977 | 1 | |
| Guides, timing chain | 59994 | 1 | |
| Guides, timing chain | 59995 | 1 | |
| Guides, timing chain | 59996 | 1 | |
| Guides, timing chain | 59999 | 1 | |
| Tensioner, timing chain | 60167 | 1 | |
| Tensioner, timing chain | 60168 | 1 |
