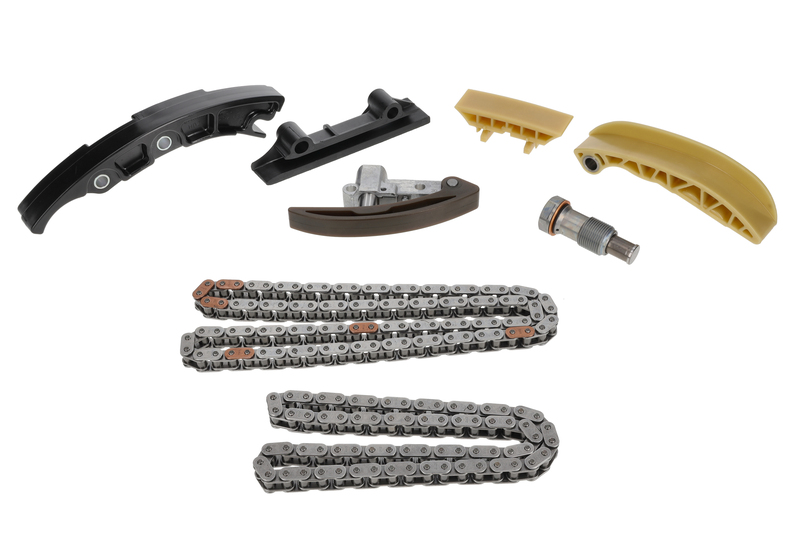

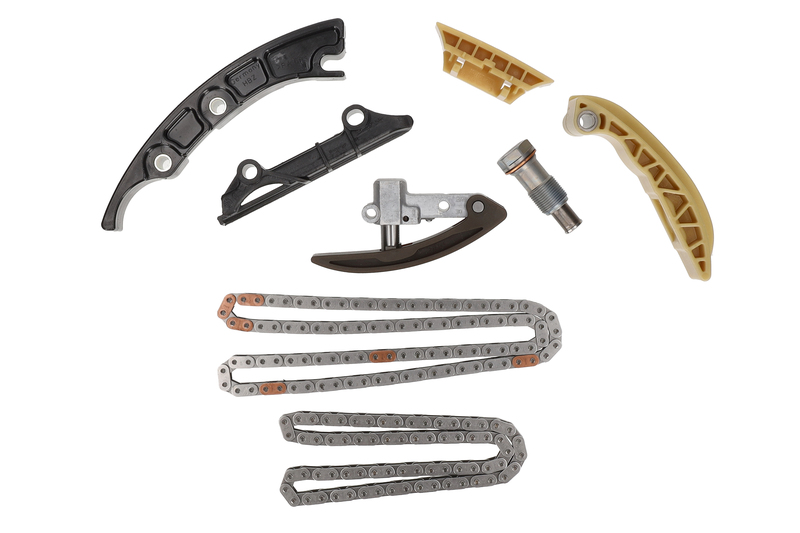

Timing Chain Kit
59830Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,Check and replace gears if necessary |
| Number of chain links: | 98,70 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) | BKL, AYT | 04/2002 | 05/2005 | 16693 | 0177 |
| VW | PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) | BRK, BKL | 02/2004 | 11/2008 | 18394 | 0177 |
| VW | SHARAN (7M8, 7M9, 7M6) | AYL | 04/2000 | 03/2010 | 14854 | 0150 |
| VW | SHARAN (7M8, 7M9, 7M6) | AYL | 04/2000 | 03/2010 | 14896 | 0150 |
| VW | TOUAREG (7LA, 7L6, 7L7) | AZZ, BKJ , BAA, BMV , BMX , BRJ | 10/2002 | 11/2006 | 16819 | 0162 |
| VW | TOUAREG (7LA, 7L6, 7L7) | BMV | 11/2004 | 11/2006 | 18427 | 0177 |
| VW | MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) | BKK, CFLA | 02/2004 | 12/2009 | 18189 | 0173 |
| VW | MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) | BKK, CFLA | 07/2004 | 12/2009 | 18190 | 0173 |
| VW | EOS (1F7, 1F8) | BUB, CBRA | 06/2006 | 05/2009 | 18985 | 0184 |
| VW | CARAVELLE T5 Bus (7HB, 7HJ, 7EB, 7EJ) | BKK, CFLA | 02/2004 | 11/2009 | 17771 | 0173 |
| VW | CARAVELLE T5 Bus (7HB, 7HJ, 7EB, 7EJ) | BKK, CFLA | 11/2003 | 12/2009 | 20661 | 0173 |
| VW | TRANSPORTER Mk V Kasten (7HA, 7HH, 7EA, 7EH) | BKK, CFLA | 02/2004 | 11/2009 | 17772 | 0173 |
| VW | TRANSPORTER Mk V Kasten (7HA, 7HH, 7EA, 7EH) | BKK, CFLA | 11/2003 | 11/2009 | 20485 | 0173 |
| VW | TRANSPORTER Mk V Pritsche/Fahrgestell (7JD, 7JE, 7JL, 7JY, 7 | BKK | 08/2003 | 11/2009 | 17773 | 0173 |
| VW | GOLF Mk IV (1J1) | AQN | 10/2000 | 06/2005 | 15540 | 0125 |
| VW | GOLF Mk IV (1J1) | AQN | 10/2000 | 06/2005 | 15541 | 0125 |
| VW | GOLF Mk IV (1J1) | BDE, AUE , AQP | 03/1999 | 06/2005 | 10944 | 0150 |
| VW | GOLF Mk IV (1J1) | BFH, BML | 09/2002 | 06/2005 | 16846 | 0177 |
| VW | GOLF IV Estate (1J5) | AQN | 10/2000 | 06/2006 | 17478 | 0125 |
| VW | GOLF IV Estate (1J5) | AQN | 10/2000 | 06/2006 | 17479 | 0125 |
| VW | GOLF IV Estate (1J5) | AUE, BDE , AQP | 05/1999 | 06/2006 | 14566 | 0150 |
| VW | GOLF V (1K1) | BUB, CBRA | 11/2005 | 11/2008 | 18921 | 0184 |
| VW | NEW BEETLE (9C1, 1C1) | AQN | 10/2000 | 09/2010 | 15629 | 0125 |
| AUDI | A3 Sportback (8PA) | BMJ, BUB | 09/2004 | 05/2009 | 18070 | 0184 |
| AUDI | TT (8N3) | BHE, BPF, BPF, BPF, BPF | 07/2003 | 06/2006 | 17144 | 0184 |
| AUDI | TT Roadster (8N9) | BHE, BPF, BPF, BPF, BPF | 07/2003 | 06/2006 | 17472 | 0184 |
| AUDI | TT (8J3) | BUB | 08/2006 | 06/2010 | 19454 | 0184 |
| AUDI | TT Roadster (8J9) | BUB | 03/2007 | 06/2010 | 19807 | 0184 |
| AUDI | A3 (8P1) | BMJ, BDB , BUB | 07/2003 | 05/2009 | 17577 | 0184 |
| PORSCHE | CAYENNE (9PA) | M02.2Y | 10/2003 | 09/2007 | 17693 | 0184 |
| PORSCHE | CAYENNE (9PA) | 08/2003 | 09/2007 | 21569 | 0177 | |
| SEAT | ALHAMBRA (7V8, 7V9) | AYL, AUE | 06/2000 | 03/2010 | 15291 | 0150 |
| SEAT | LEON (1M1) | AUE | 02/2001 | 06/2006 | 15724 | 0150 |
| SEAT | ALHAMBRA (7V8, 7V9) | AUE, AYL | 06/2000 | 03/2010 | 14939 | 0150 |
| SEAT | TOLEDO Mk II (1M2) | AQN | 09/2000 | 11/2003 | 16071 | 0125 |
| SEAT | LEON (1M1) | 05/2002 | 06/2004 | 27288 | 0150 |
| Manufacturer | Comparison number |
|---|---|
| SEAT | 021 109 169 |
| VW | 021 109 169 |
| VAG | 021 109 169 |
| AUDI | 021 109 169 |
| SEAT | 021 109 465B |
| VW | 021 109 465B |
| VAG | 021 109 465B |
| AUDI | 021 109 465B |
| SEAT | 021 109 467 |
| VW | 021 109 467 |
| VAG | 021 109 467 |
| AUDI | 021 109 467 |
| SEAT | 021 109 469 |
| VW | 021 109 469 |
| VAG | 021 109 469 |
| AUDI | 021 109 469 |
| SEAT | 03H 109 465 |
| VW | 03H 109 465 |
| VAG | 03H 109 465 |
| AUDI | 03H 109 465 |
| SEAT | 03H 109 503 |
| VW | 03H 109 503 |
| VAG | 03H 109 503 |
| AUDI | 03H 109 503 |
| SEAT | 03H 109 507A |
| VW | 03H 109 507A |
| VAG | 03H 109 507A |
| AUDI | 03H 109 507A |
| SEAT | 066 109 503B |
| VW | 066 109 503B |
| VAG | 066 109 503B |
| AUDI | 066 109 503B |
| SEAT | 066 109 503C |
| VW | 066 109 503C |
| VAG | 066 109 503C |
| AUDI | 066 109 503C |
| SEAT | 066 109 509A |
| VW | 066 109 509A |
| VAG | 066 109 509A |
| AUDI | 066 109 509A |
| SEAT | 066 109 513A |
| VW | 066 109 513A |
| VAG | 066 109 513A |
| AUDI | 066 109 513A |
| SEAT | 066 109 514A |
| VW | 066 109 514A |
| VAG | 066 109 514A |
| AUDI | 066 109 514A |
| PORSC | 955 105 169 00 |
| PORSC | 955 105 465 00 |
| PORSC | 955 105 465 01 |
| PORSC | 955 105 469 00 |
| PORSC | 955 105 503 00 |
| PORSC | 955 105 503 01 |
| PORSC | 955 105 509 00 |
| PORSC | 955 105 513 00 |
| PORSC | 955 105 514 00 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59965 | 1 | |
| Chain, intermediate shaft | 59977 | 1 | |
| Guides, timing chain | 59996 | 1 | |
| Guides, timing chain | 59997 | 1 | |
| Guides, timing chain | 59998 | 1 | |
| Guides, timing chain | 59999 | 1 | |
| Tensioner, timing chain | 60167 | 1 | |
| Tensioner, timing chain | 60168 | 1 |
