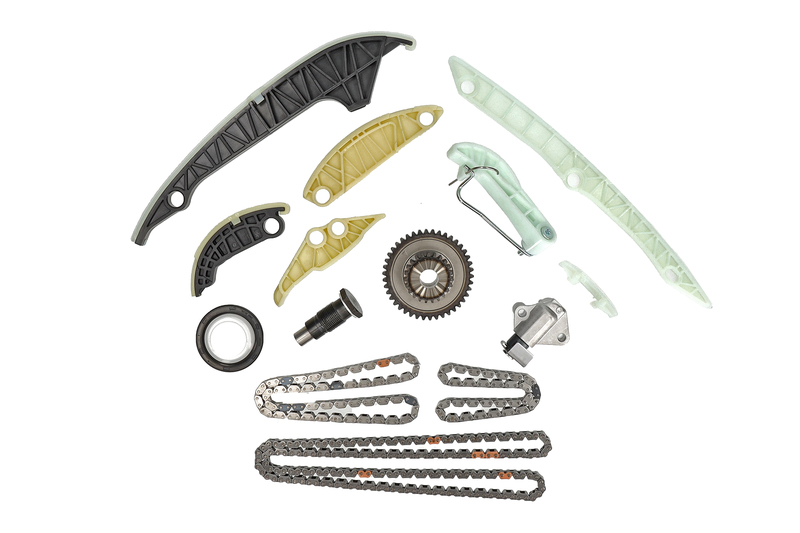

Timing Chain Kit

Timing Chain Kit

Timing Chain KitTiming Chain KitTiming Chain Kit
73987Set
Quality iwis original OEM quality, Made in Germany
Supplementary Article/Supplementary Info: with slide rails,with chain tensioner,with crankshaft gear,with crankshaft seal,Check and replace gears if necessary
Number of chain links: 170,96,60
Guarantee: 5 years guarantee or up to 100,000 km
Chain Type: Silent Chain,Closed chain
Number of chains: 3
Unit 1
Vehicle list
Manufacturer Model Motorcode Built from to K-type KW
AUDI A6 C7 (4G2, 4GC) CDNB 05/2011 09/2018 9309 0132
AUDI A6 C7 Avant (4G5, 4GD) CDNB 06/2011 09/2018 11724 0132
AUDI Q5 (8RB) CDNB, CNCB 08/2009 05/2017 31955 0132
AUDI Q5 (8RB) CDNC, CAEB , CPMA 11/2008 09/2012 27563 0155
AUDI Q5 (8RB) CHJA 06/2011 06/2016 11054 0180
AUDI A6 C7 (4G2, 4GC) 03/2011 05/2013 12077 0155
AUDI A4 B8 (8K2) 11/2009 03/2012 57214 0132
AUDI Q5 Van (8RB) 11/2008 09/2012 142549 0155
AUDI A4 B8 (8K2) CDNB, CAEA , CFKA 06/2008 12/2015 26911 0132
AUDI A4 B8 (8K2) CFKA 11/2009 12/2015 33365 0132
AUDI A4 B8 (8K2) CFKA 11/2009 12/2015 33366 0132
AUDI A4 B8 (8K2) CDNC, CAEB 06/2008 05/2013 26912 0155
AUDI A4 B8 (8K2) CDNC, CAEB, CPMA 06/2008 12/2015 26913 0155
AUDI A4 B8 Avant (8K5) CDNB, CAEA, CFKA 06/2008 12/2015 28276 0132
AUDI A4 B8 Avant (8K5) CFKA 11/2009 12/2015 33367 0132
AUDI A4 B8 Avant (8K5) CFKA 11/2009 12/2015 33368 0132
AUDI A4 B8 Avant (8K5) CDNC, CAEB 06/2008 05/2013 26914 0155
AUDI A4 B8 Avant (8K5) CAEB, CDNC 06/2008 12/2015 28277 0155
AUDI A4 Allroad B8 (8KH) CDNC, CPMA 04/2009 05/2016 30990 0155
AUDI A5 (8T3) CDNB 11/2008 03/2012 29973 0132
AUDI A5 (8T3) CDNC 06/2008 11/2013 29974 0155
AUDI A5 (8T3) CDNC, CAEB 06/2008 01/2017 29975 0155
AUDI A5 Sportback (8TA) CDNB 09/2009 06/2014 31569 0132
AUDI A5 Sportback (8TA) CDNC 09/2009 11/2013 33410 0155
AUDI A5 Sportback (8TA) CDNC, CAEB 09/2009 01/2017 31570 0155
AUDI A5 Cabriolet (8F7) CDNB, CAEA 03/2009 03/2012 30979 0132
AUDI A5 Cabriolet (8F7) CAEB, CDNC 03/2009 06/2014 30980 0155
AUDI A5 Cabriolet (8F7) CAEB, CDNC , CPMA 03/2009 01/2017 30981 0155
SEAT EXEO (3R2) CDND 05/2010 05/2013 34810 0155
Reference list
Manufacturer Comparison number
SEAT 06H 105 209AT
VAG 06H 105 209AT
AUDI 06H 105 209AT
SEAT 06H 109 467AR
VAG 06H 109 467AR
AUDI 06H 109 467AR
SEAT 06H 109 469AH
VAG 06H 109 469AH
AUDI 06H 109 469AH
SEAT 06H 109 469AP
VAG 06H 109 469AP
AUDI 06H 109 469AP
SEAT 06H 109 469AQ
VAG 06H 109 469AQ
AUDI 06H 109 469AQ
SEAT 06H 109 469T
VAG 06H 109 469T
AUDI 06H 109 469T
SEAT 06H 109 507M
VAG 06H 109 507M
AUDI 06H 109 507M
SEAT 06H 109 509P
VAG 06H 109 509P
AUDI 06H 109 509P
SEAT 06H 109 509Q
VAG 06H 109 509Q
AUDI 06H 109 509Q
SEAT 06K 109 158AD
VAG 06K 109 158AD
AUDI 06K 109 158AD
SEAT 06K 109 158A
VAG 06K 109 158A
AUDI 06K 109 158A
SEAT 06K 109 158BE
VAG 06K 109 158BE
AUDI 06K 109 158BE
SEAT 06K 109 158BS
VAG 06K 109 158BS
AUDI 06K 109 158BS
SEAT 06K 109 467K
VAG 06K 109 467K
AUDI 06K 109 467K
SEAT 06K 109 467Q
VAG 06K 109 467Q
AUDI 06K 109 467Q
SEAT 06K 115 225C
VAG 06K 115 225C
AUDI 06K 115 225C
SEAT 6H 103 085G
VAG 6H 103 085G
AUDI 6H 103 085G
Parts list
Description Article number OE comparison number Amount
Timing Chain 59192 1
Timing Chain 60210 1
Chain, oil pump drive 60296 1
Guides, timing chain 59263 1
Guides, timing chain 59264 1
Guides, timing chain 59265 1
Guides, timing chain 59405 1
Guides, timing chain 59407 1
Guides, timing chain 59408 1
Tensioner, timing chain 59295 1
Tensioner, timing chain 60213 1
Chain Tensioner, oil pump drive 60288 1
Gear, crankshaft 60214 1
Shaft Seal, crankshaft 60220 1
