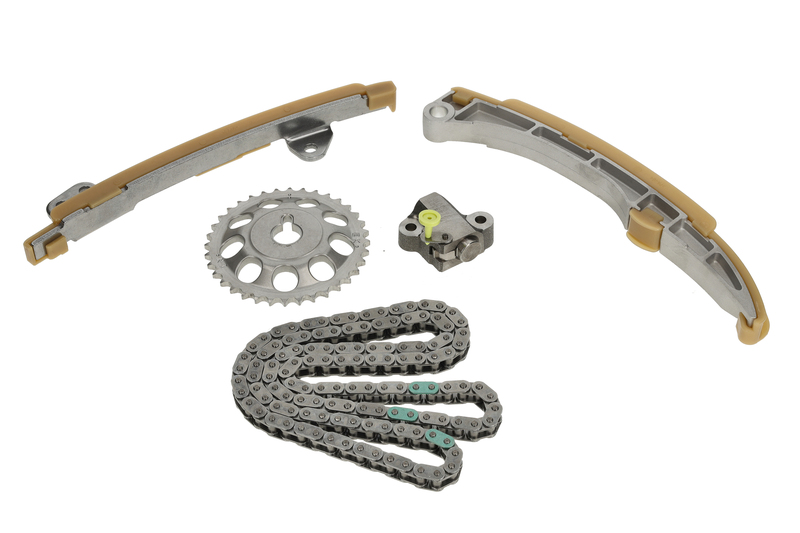

Timing Chain Kit
74017Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft sprocket,Check and replace gears if necessary |
| Number of chain links: | 124 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| TOYOTA | AQUA (_NHP1_) | 12/2011 | / | 15967 | 0054 | |
| TOYOTA | PRIUS Stufenheck (_W1_) | 09/2000 | 12/2003 | 49415 | 0085 | |
| TOYOTA | PRIUS C (NHP10_) | 09/2011 | / | 55004 | 0074 | |
| TOYOTA | PRIUS Stufenheck (_W1_) | 12/1997 | 08/2000 | 123226 | 0043 | |
| TOYOTA | YARIS Kasten/Schrägheck (_P13_) | 04/2015 | 06/2020 | 136643 | 0074 | |
| TOYOTA | PRIUS Liftback (_W2_) | 1NZ-FXE | 09/2003 | 12/2009 | 17711 | 0082 |
| TOYOTA | YARIS/VITZ (_P13_) | 1NZ-FXE | 04/2015 | 03/2017 | 116073 | 0074 |
| TOYOTA | YARIS/VITZ (_P13_) | 1NZ-FXE | 03/2012 | 06/2020 | 55249 | 0074 |
| Manufacturer | Comparison number |
|---|---|
| TOYOT | 13506-0Q010 |
| TOYOT | 13523-22020 |
| TOYOT | 13540-0Q010 |
| TOYOT | 13559-21030 |
| TOYOT | 13561-21040 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 60419 | 1 | |
| Guides, timing chain | 60537 | 1 | |
| Guides, timing chain | 60538 | 1 | |
| Tensioner, timing chain | 60448 | 1 | |
| Gear, camshaft | 60457 | 1 |
