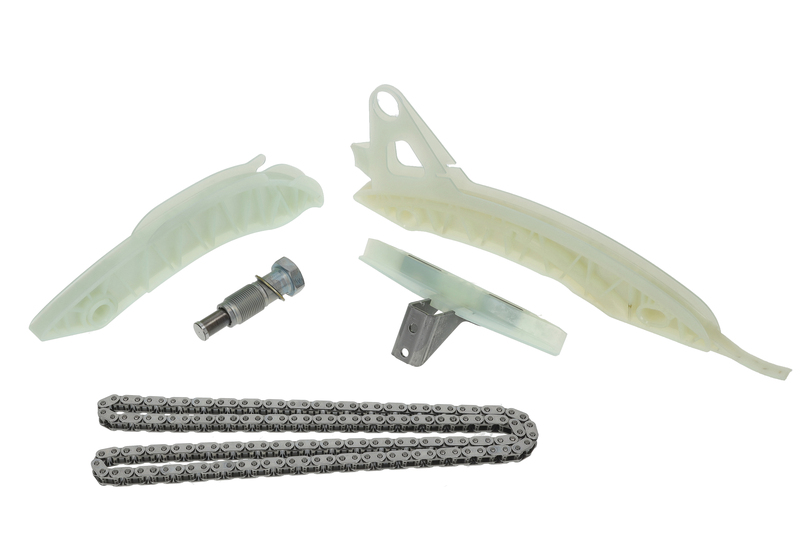

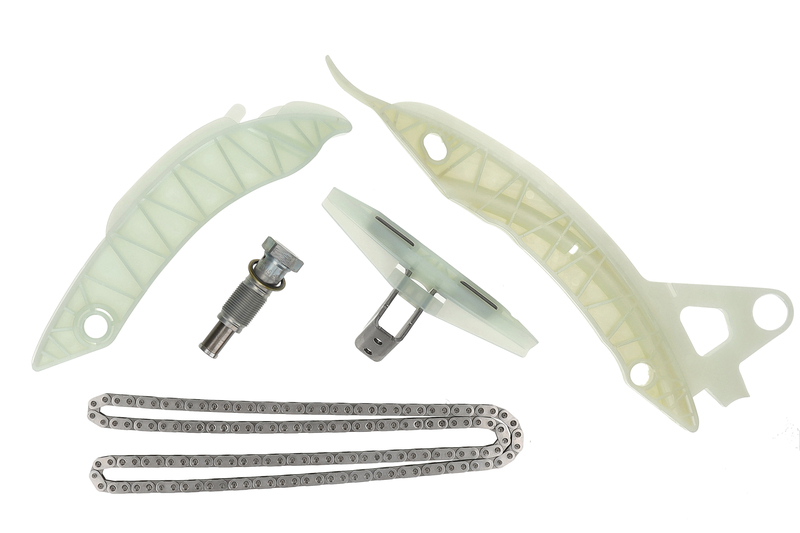

Timing Chain Kit

Timing Chain Kit

Timing Chain KitTiming Chain KitTiming Chain Kit
74639Set
Quality iwis original OEM quality, Made in Germany
Supplementary Article/Supplementary Info: with slide rails,with chain tensioner,Check and replace gears if necessary
Number of chain links: 144
Guarantee: 5 years guarantee or up to 100,000 km
Chain Type: Simplex,Closed chain
Unit 1
Vehicle list
Manufacturer Model Motorcode Built from to K-type KW
CITROEN DS5 06/2012 07/2015 108053 0121
CITROEN DS3 Cabriolet 03/2014 07/2015 108686 0152
CITROEN DS3 Cabriolet 03/2014 07/2015 129219 0149
CITROEN C4 SPACETOURER (3D_) 04/2018 / 131191 0121
CITROEN C4 I (LC_) 5FT (EP6DT) 07/2008 07/2011 28591 0103
CITROEN C4 I (LC_) 5FX (EP6DT) 07/2008 07/2011 28590 0110
CITROEN C4 II (NC_) 5FV (EP6CDT) 11/2009 12/2016 467 0115
CITROEN C4 Coupe (LA_) 5FX (EP6DT) 07/2008 07/2011 28593 0110
CITROEN C4 PICASSO I Großraumlimousine (UD_) 5FT (EP6DT) 07/2008 08/2013 28597 0103
CITROEN C4 PICASSO I Großraumlimousine (UD_) 5FX (EP6DT) 07/2008 08/2013 32969 0110
CITROEN C4 PICASSO I Großraumlimousine (UD_) 5FV (EP6CDT) 09/2010 08/2013 6440 0115
CITROEN C4 PICASSO II 5FV (EP6CDT) 02/2013 / 59021 0115
CITROEN C4 GRAND PICASSO II (DA_, DE_) 5FV (EP6CDT) 09/2013 / 53217 0115
CITROEN C4 GRAND PICASSO I (UA_) 5FV (EP6CDT) 09/2010 08/2013 6634 0115
CITROEN C4 GRAND PICASSO II (DA_, DE_) 5GZ (EP6FDT) 07/2014 / 108158 0121
CITROEN C5 III (RD_) 5FN (EP6CDT) 07/2010 07/2016 100641 0110
CITROEN C5 III (RD_) 5FV (EP6CDT) 04/2009 07/2016 32793 0115
CITROEN DS3 Cabriolet 5FN (EP6CDT) 01/2013 07/2015 59305 0110
CITROEN DS3 Cabriolet 5FV (EP6CDT) 01/2013 07/2015 58585 0115
CITROEN DS3 Cabriolet 5GZ (EP6FDT) 10/2014 07/2015 109321 0121
CITROEN DS3 (SA_) 5FX (EP6DT), 5FN (EP6CDT) 01/2010 07/2015 12290 0110
CITROEN DS3 (SA_) 5FR (EP6DT), 5FV (EP6CDT) 04/2010 07/2015 32035 0115
CITROEN DS3 (SA_) 5GZ (EP6FDT) 10/2014 06/2015 109261 0121
CITROEN DS3 (SA_) 5FU (EP6CDTX) 02/2011 07/2015 5091 0149
CITROEN DS3 (SA_) 5FD (EP6DTS) 02/2011 07/2015 9284 0152
CITROEN DS4 (NX_) 5FV (EP6CDT) 04/2011 07/2015 6349 0115
CITROEN DS4 (NX_) 5FM (EP6DT), 5GZ (EP6FDT) 01/2012 07/2015 49684 0121
CITROEN DS5 5FV (EP6CDT) 11/2011 07/2015 10877 0115
CITROEN DS5 5FM (EP6DT), 5GZ (EP6FDT) 01/2012 07/2015 51869 0121
DS DS 3 (SA_) 07/2015 07/2019 118005 0121
DS DS 3 Cabriolet (SB_) 07/2015 07/2019 118009 0121
DS DS 4 / DS 4 CROSSBACK (NX_) 07/2015 12/2018 118013 0121
DS DS 5 (KF_) 07/2015 12/2018 118607 0121
PEUGEOT 5008 (0U_, 0E_) 5GZ (EP6FDT) 02/2012 03/2017 117933 0121
PEUGEOT RCZ EP6CDT 03/2010 12/2015 32038 0115
PEUGEOT 5008 (0U_, 0E_) 02/2012 03/2017 108056 0120
PEUGEOT 508 SW I (8E_) 02/2012 12/2018 109335 0121
PEUGEOT 207 SW (WK_) 02/2007 12/2012 110730 0110
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 06/2014 06/2021 110760 0120
PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 12/2016 / 124951 0121
PEUGEOT 508 II (FB_, FH_, F3_) 09/2018 / 134175 0121
PEUGEOT 508 SW II (FC_, FJ_, F4_) 09/2018 / 134176 0121
PEUGEOT 207/207+ (WA_, WC_) 5FX (EP6DT) 02/2006 10/2013 19351 0110
PEUGEOT 508 II (FB_, FH_, F3_) 09/2018 / 136311 0110
PEUGEOT 207/207+ (WA_, WC_) 5FR (EP6DT) 10/2009 12/2012 33259 0115
PEUGEOT 207/207+ (WA_, WC_) 5FY (EP6DTS) 02/2007 12/2012 22685 0128
PEUGEOT 207 CC (WD_) 5FX (EP6DT) 02/2007 12/2012 20028 0110
PEUGEOT 207 CC (WD_) 5FR (EP6DT), EP6CDT 10/2009 12/2013 33263 0115
PEUGEOT 207 SW (WK_) 5FY (EP6DTS) 02/2007 12/2012 31167 0128
PEUGEOT 208 I (CA_, CC_) EP6CDT, 5FV (EP6DT) 03/2012 12/2019 8683 0115
PEUGEOT 208 I (CA_, CC_) 03/2015 12/2019 112328 0121
PEUGEOT 308 I (4A_, 4C_) 5FT (EP6DT) 09/2007 10/2014 30846 0103
PEUGEOT 308 I (4A_, 4C_) 5FX (EP6DT) 09/2007 10/2014 23381 0110
PEUGEOT 308 I (4A_, 4C_) EP6CDT 10/2009 10/2014 33269 0115
PEUGEOT 308 I (4A_, 4C_) 5FY (EP6DTS) 03/2008 10/2014 26606 0128
PEUGEOT 308 SW I (4E_, 4H_) 5FT (EP6DT) 09/2007 10/2014 31166 0103
PEUGEOT 308 SW I (4E_, 4H_) 5FX (EP6DT) 09/2007 10/2014 26612 0110
PEUGEOT 308 SW I (4E_, 4H_) EP6CDT 10/2009 10/2014 33272 0115
PEUGEOT 308 SW I (4E_, 4H_) 5FY (EP6DTS) 03/2008 10/2014 26613 0128
PEUGEOT 308 CC (4B_) 5FT (EP6DT) 06/2009 12/2014 32807 0103
PEUGEOT 308 CC (4B_) 5FX (EP6DT) 06/2009 12/2014 28201 0110
PEUGEOT 308 CC (4B_) EP6CDT 06/2009 12/2014 32806 0115
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 09/2013 06/2021 59725 0092
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 5FV (EP6DT) 09/2013 06/2021 59724 0115
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 03/2014 06/2021 110749 0092
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 5FV (EP6DT) 03/2014 06/2021 100645 0115
PEUGEOT 508 I (8D_) 09/2011 12/2018 56438 0121
PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 05/2016 / 121649 0121
PEUGEOT 3008 I Großraumlimousine (0U_) 5FX (EP6DT) 06/2009 08/2016 30822 0110
PEUGEOT 3008 I Großraumlimousine (0U_) 5FV (EP6DT) 06/2009 08/2016 31524 0115
PEUGEOT 3008 I Großraumlimousine (0U_) 5GZ (EP6FDT) 05/2014 08/2016 106340 0121
Reference list
Manufacturer Comparison number
CITRO 0816.H9
PEUGE 0816.H9
CITRO 0818.30
PEUGE 0818.30
CITRO 0818.31
PEUGE 0818.31
CITRO 98 160 586 80
PEUGE 98 160 586 80
CITRO 98 228 271 80
PEUGE 98 228 271 80
CITRO 98 248 315 80
PEUGE 98 248 315 80
Parts list
Description Article number OE comparison number Amount
Timing Chain 59166 1
Guides, timing chain 59216 1
Guides, timing chain 59218 1
Guides, timing chain 59221 1
Tensioner, timing chain 59270 1
