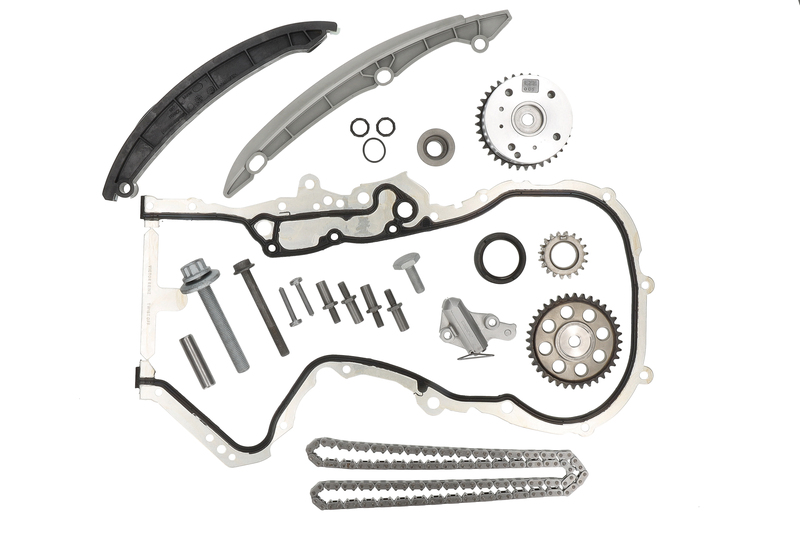

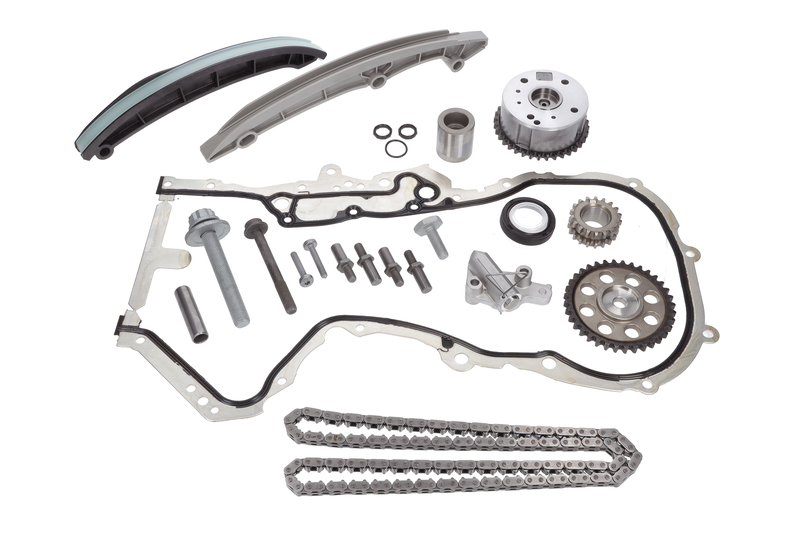

Timing Chain Kit
74650Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft adjuster,with camshaft sprocket,with crankshaft gear,with gaskets/seals,with sleeve,with runner ring,Check and replace gears if necessary |
| Supplementary Article/Supplementary Info 2: | with bolts/screws,with bolts |
| Number of chain links: | 132 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Silent Chain,Closed chain |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| VW | JETTA IV (162, 163, AV3, AV2) | 04/2011 | 12/2017 | 55069 | 0110 | |
| VW | JETTA IV (162, 163, AV3, AV2) | CAXA, CMSB | 05/2011 | 12/2017 | 11829 | 0090 |
| VW | JETTA IV (162, 163, AV3, AV2) | CAVD, CTHD | 04/2011 | 12/2017 | 9629 | 0118 |
| Manufacturer | Comparison number |
|---|---|
| VW | 038 103 085E |
| VAG | 038 103 085E |
| VW | 03C 103 825A |
| VAG | 03C 103 825A |
| VW | 03C 105 159H |
| VAG | 03C 105 159H |
| VW | 03C 105 209BD |
| VAG | 03C 105 209BD |
| VW | 03C 109 088G |
| VAG | 03C 109 088G |
| VW | 03C 109 158H |
| VAG | 03C 109 158H |
| VW | 03C 109 287G |
| VAG | 03C 109 287G |
| VW | 03C 109 293 |
| VAG | 03C 109 293 |
| VW | 03C 109 469R |
| VAG | 03C 109 469R |
| VW | 03C 109 507AH |
| VAG | 03C 109 507AH |
| VW | 03C 109 507BA |
| VAG | 03C 109 507BA |
| VW | 03C 109 509AA |
| VAG | 03C 109 509AA |
| VW | 03C 109 571K |
| VAG | 03C 109 571K |
| VW | 03E 109 511 |
| VAG | 03E 109 511 |
| VW | N 902 562 02 |
| VAG | N 902 562 02 |
| VW | N 909 032 01 |
| VAG | N 909 032 01 |
| VW | N 910 486 01 |
| VAG | N 910 486 01 |
| VW | N 910 972 01 |
| VAG | N 910 972 01 |
| VW | N 911 970 01 |
| VAG | N 911 970 01 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Tensioner, timing chain | 59285 | 1 | |
| Screw, camshaft gear | 59340 | 1 | |
| Gasket, timing case | 59323 | 1 | |
| Seal Ring | 59328 | 2 | |
| Bolt, crankshaft gear | 59783 | 1 | |
| Gear, crankshaft | 61323 | 1 | |
| Sliding Rail Bolts, timing chain | 59785 | 4 | |
| Screw | 59790 | 2 | |
| Screw | 59791 | 1 | |
| Sleeve | 59792 | 1 | |
| Shaft Seal, crankshaft | 59795 | 1 | |
| Seal Ring, timing chain tensioner | 60394 | 1 | |
| Ring Gear, crankshaft | 60398 | 1 | |
| Timing Chain | 60757 | 1 | |
| Guides, timing chain | 60766 | 1 | |
| Guides, timing chain | 60767 | 1 | |
| Camshaft Adjuster | 61321 | 1 | |
| Gear, camshaft | 61322 | 1 |
