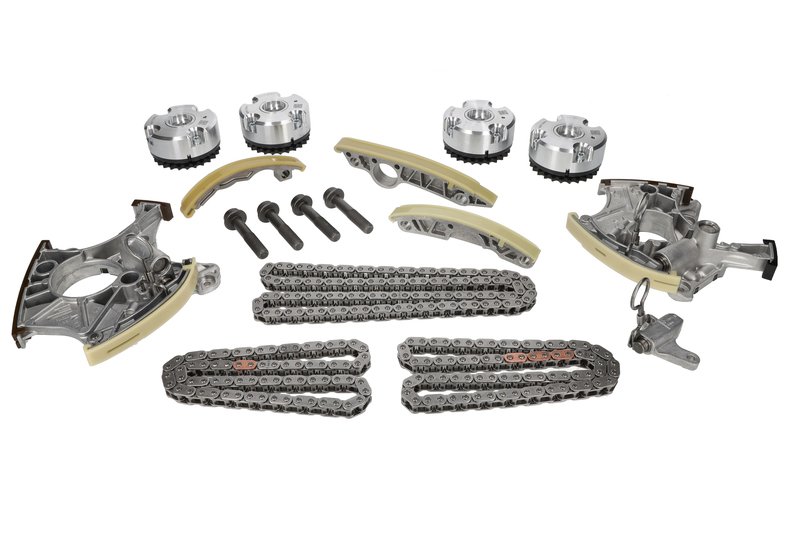

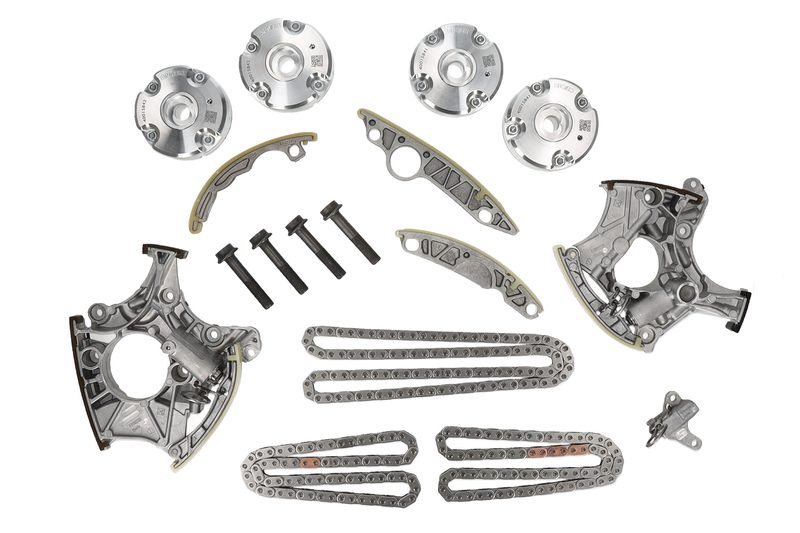

Timing Chain Kit
74706Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft adjuster,Check and replace gears if necessary |
| Supplementary Article/Supplementary Info 2: | with screw |
| Number of chain links: | 104,78,74 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Number of chains: | 4 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| AUDI | A6 Allroad C6 (4FH) | AUK | 05/2006 | 10/2008 | 19472 | 0188 |
| AUDI | A8 D3 (4E2, 4E8) | BPK | 06/2005 | 07/2010 | 18672 | 0191 |
| AUDI | A8 D3 (4E2, 4E8) | BPK | 06/2005 | 07/2010 | 18673 | 0191 |
| AUDI | A6 C6 (4F2) | 09/2006 | 10/2008 | 21323 | 0183 | |
| AUDI | A4 B7 Cabriolet (8HE) | AUK | 01/2006 | 03/2009 | 19169 | 0188 |
| AUDI | A4 B7 Cabriolet (8HE) | AUK | 01/2006 | 03/2009 | 19170 | 0188 |
| AUDI | A4 B7 (8EC) | AUK | 01/2005 | 06/2008 | 18373 | 0188 |
| AUDI | A4 B7 (8EC) | AUK, BKH | 01/2005 | 06/2008 | 18374 | 0188 |
| AUDI | A4 B7 Avant (8ED) | AUK | 01/2005 | 06/2008 | 18409 | 0188 |
| AUDI | A4 B7 Avant (8ED) | AUK | 01/2005 | 06/2008 | 18410 | 0188 |
| AUDI | A6 C6 (4F2) | BDW | 05/2004 | 10/2008 | 17893 | 0130 |
| AUDI | A6 C6 (4F2) | BDW | 01/2005 | 10/2008 | 18417 | 0130 |
| AUDI | A6 C6 (4F2) | AUK, BKH | 05/2004 | 05/2009 | 17894 | 0188 |
| AUDI | A6 C6 (4F2) | AUK, BKH | 05/2004 | 10/2008 | 17895 | 0188 |
| AUDI | A6 C6 Avant (4F5) | BDW | 03/2005 | 10/2008 | 18424 | 0130 |
| AUDI | A6 C6 Avant (4F5) | BDW | 03/2005 | 10/2008 | 18425 | 0130 |
| AUDI | A6 C6 Avant (4F5) | AUK | 03/2005 | 10/2008 | 18421 | 0188 |
| AUDI | A6 C6 Avant (4F5) | AUK | 03/2005 | 10/2008 | 18422 | 0188 |
| Manufacturer | Comparison number |
|---|---|
| VAG | 059 109 469E |
| AUDI | 059 109 469E |
| VAG | 059 109 469F |
| AUDI | 059 109 469F |
| VAG | 06E 109 083E |
| AUDI | 06E 109 083E |
| VAG | 06E 109 083G |
| AUDI | 06E 109 083G |
| VAG | 06E 109 084E |
| AUDI | 06E 109 084E |
| VAG | 06E 109 084G |
| AUDI | 06E 109 084G |
| VAG | 06E 109 217H |
| AUDI | 06E 109 217H |
| VAG | 06E 109 218H |
| AUDI | 06E 109 218H |
| VAG | 06E 109 229A |
| AUDI | 06E 109 229A |
| VAG | 06E 109 229F |
| AUDI | 06E 109 229F |
| VAG | 06E 109 467C |
| AUDI | 06E 109 467C |
| VAG | 06E 109 467G |
| AUDI | 06E 109 467G |
| VAG | 06E 109 467H |
| AUDI | 06E 109 467H |
| VAG | 06E 109 467M |
| AUDI | 06E 109 467M |
| VAG | 079 109 229B |
| AUDI | 079 109 229B |
| VAG | 079 109 229L |
| AUDI | 079 109 229L |
| VAG | 079 109 510F |
| AUDI | 079 109 510F |
| VAG | 079 109 510M |
| AUDI | 079 109 510M |
| VAG | N 910 428 01 |
| AUDI | N 910 428 01 |
| VAG | N 910 428 02 |
| AUDI | N 910 428 02 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59404 | 1 | |
| Timing Chain | 60559 | 1 | |
| Timing Chain | 60560 | 1 | |
| Guides, timing chain | 59261 | 1 | |
| Guides, timing chain | 59262 | 1 | |
| Guides, timing chain | 59266 | 1 | |
| Tensioner, timing chain | 60563 | 1 | |
| Tensioner, timing chain | 60564 | 1 | |
| Tensioner, timing chain | 60565 | 1 | |
| Camshaft Adjuster | 60831 | 06E 109 083G | 2 |
| Camshaft Adjuster | 60832 | 06E 109 084G | 2 |
| Screw, camshaft gear | 60834 | 4 |
