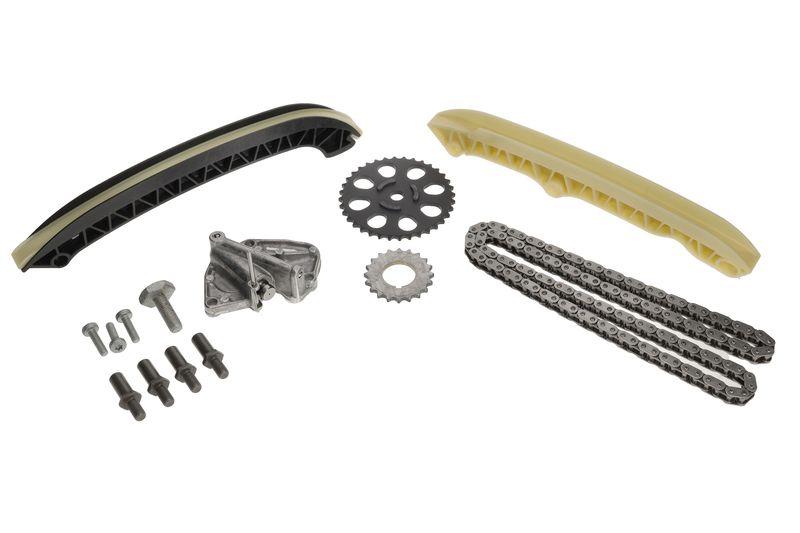

Timing Chain Kit

Timing Chain Kit

Timing Chain KitTiming Chain KitTiming Chain Kit
74736Set
Quality iwis original OEM quality, Made in Germany
Supplementary Article/Supplementary Info: with slide rails,with chain tensioner,with camshaft sprocket,with crankshaft gear,Check and replace gears if necessary
Supplementary Article/Supplementary Info 2: with bolts/screws,with bolts
Number of chain links: 118
Guarantee: 5 years guarantee or up to 100,000 km
Chain Type: Simplex,Closed chain
Unit 1
Vehicle list
Manufacturer Model Motorcode Built from to K-type KW
SKODA FABIA II Combi (545) BBM, CHFA 10/2007 11/2014 28175 0044
SKODA FABIA I Stufenheck (6Y3) AWY, BMD 07/2001 12/2007 18149 0040
SKODA FABIA I Combi (6Y5) AWY, BMD 07/2001 12/2007 19270 0040
SKODA FABIA I Praktik (6Y5) 07/2001 12/2007 19271 0040
SKODA FABIA I (6Y2) AWY, BMD 07/2001 04/2007 16944 0040
SKODA FABIA II (542) BBM, CHFA 12/2006 12/2014 22944 0044
VW POLO IV (9N_, 9A_) AWY, BMD 01/2002 05/2007 16521 0040
VW POLO IV (9N_, 9A_) BBM 05/2007 11/2009 23205 0044
VW FOX Schrägheck (5Z1, 5Z3, 5Z4, 5Z5) BMD, CHFB 04/2005 07/2011 18608 0040
SEAT IBIZA Mk III (6L1) BBM 06/2007 05/2008 30937 0044
Reference list
Manufacturer Comparison number
VAG 03C 109 571F
SEAT 03D 105 209E
SKODA 03D 105 209E
VW 03D 105 209E
VAG 03D 105 209E
SEAT 03D 109 229
SKODA 03D 109 229
VW 03D 109 229
VAG 03D 109 229
SEAT 03D 109 469C
SKODA 03D 109 469C
VW 03D 109 469C
VAG 03D 109 469C
SEAT 03D 109 509L
SKODA 03D 109 509L
VW 03D 109 509L
VAG 03D 109 509L
SEAT 03D 109 571G
SKODA 03D 109 571G
VW 03D 109 571G
VAG 03D 109 571G
SEAT 03D 109 571K
SKODA 03D 109 571K
VW 03D 109 571K
VAG 03D 109 571K
SEAT 03D 109 571L
SKODA 03D 109 571L
VW 03D 109 571L
VAG 03D 109 571L
SEAT 03E 109 507G
SKODA 03E 109 507G
VW 03E 109 507G
VAG 03E 109 507G
SEAT 03E 109 507K
SKODA 03E 109 507K
VW 03E 109 507K
VAG 03E 109 507K
SEAT 03E 109 507L
SKODA 03E 109 507L
VW 03E 109 507L
VAG 03E 109 507L
SEAT 03E 109 507N
SKODA 03E 109 507N
VW 03E 109 507N
VAG 03E 109 507N
SEAT 03E 109 507S
SKODA 03E 109 507S
VW 03E 109 507S
VAG 03E 109 507S
SEAT 03E 109 511
SKODA 03E 109 511
VW 03E 109 511
VAG 03E 109 511
VAG N 104 416 01
VAG N 104 416 02
VAG N 107 002 01
VAG N 902 562 01
VAG N 902 562 02
VAG N 907 575 01
Parts list
Description Article number OE comparison number Amount
Timing Chain 59184 1
Guides, timing chain 59254 1
Guides, timing chain 59255 1
Tensioner, timing chain 59288 1
Gear, camshaft 59412 1
Screw, camshaft gear 59340 1
Gear, crankshaft 59414 1
Sliding Rail Bolts, timing chain 59785 4
Screw 60393 3
