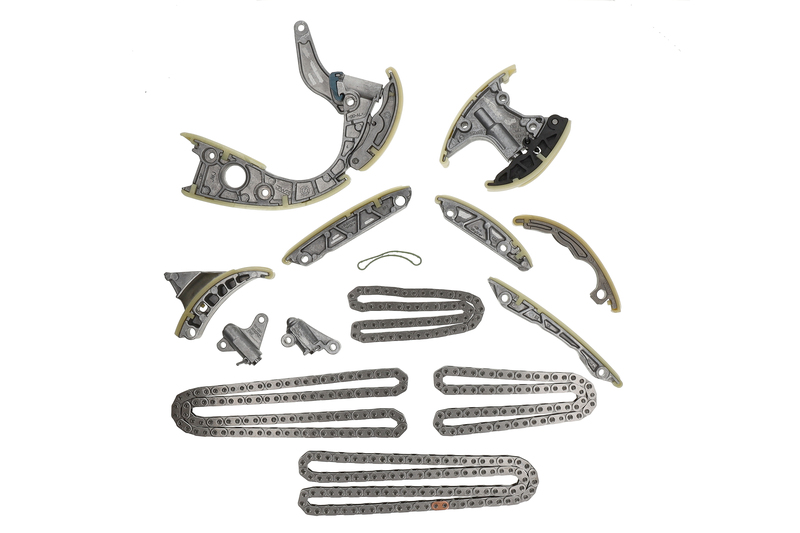

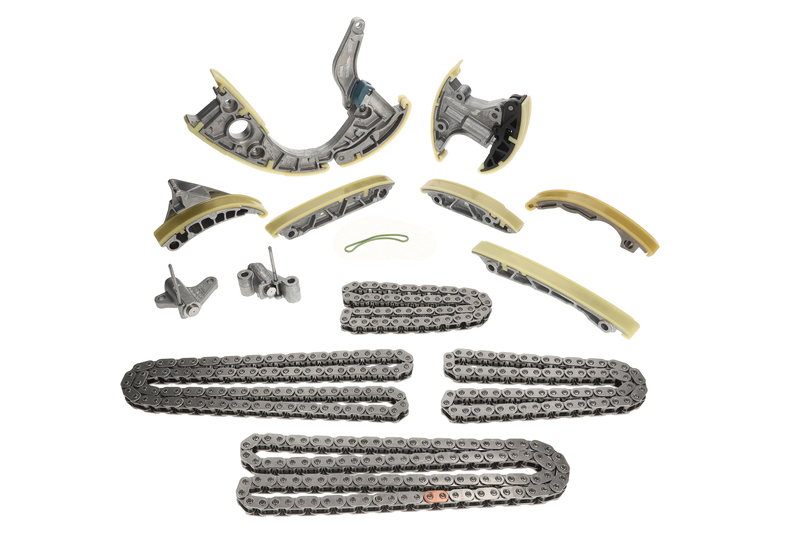

Timing Chain Kit

Timing Chain Kit

Timing Chain KitTiming Chain KitTiming Chain Kit
74738Set
Quality iwis original OEM quality, Made in Germany
Supplementary Article/Supplementary Info: with slide rails,with chain tensioner,Check and replace gears if necessary
Supplementary Article/Supplementary Info 2: with control housing gasket
Number of chain links: 106,104,72,58
Guarantee: 5 years guarantee or up to 100,000 km
Chain Type: Simplex,Closed chain
Number of chains: 4
Unit 1
Vehicle list
Manufacturer Model Motorcode Built from to K-type KW
VW TOUAREG (7P5, 7P6) CKDA 01/2010 03/2018 33308 0250
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) CDSB 11/2009 04/2014 33432 0258
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) CTEC 10/2013 01/2018 53315 0283
AUDI Q7 (4LB) CCFC, CCFA 05/2009 08/2015 31430 0250
AUDI Q7 Van (4LB) 03/2007 08/2015 142578 0250
Reference list
Manufacturer Comparison number
VW 057 109 217J
VAG 057 109 217J
AUDI 057 109 217J
VW 057 109 218F
VAG 057 109 218F
AUDI 057 109 218F
VW 057 109 218G
VAG 057 109 218G
AUDI 057 109 218G
VW 057 109 218J
VAG 057 109 218J
AUDI 057 109 218J
VW 057 109 218K
VAG 057 109 218K
AUDI 057 109 218K
VW 057 109 229A
VAG 057 109 229A
AUDI 057 109 229A
VW 057 109 229G
VAG 057 109 229G
AUDI 057 109 229G
VW 057 109 229K
VAG 057 109 229K
AUDI 057 109 229K
VW 057 109 229L
VAG 057 109 229L
AUDI 057 109 229L
VW 057 109 469G
VAG 057 109 469G
AUDI 057 109 469G
VW 057 109 469L
VAG 057 109 469L
AUDI 057 109 469L
VW 057 109 510A
VAG 057 109 510A
AUDI 057 109 510A
VW 057 109 510B
VAG 057 109 510B
AUDI 057 109 510B
VW 057 109 513B
VAG 057 109 513B
AUDI 057 109 513B
VW 059 109 229A
VAG 059 109 229A
AUDI 059 109 229A
VW 059 109 229H
VAG 059 109 229H
AUDI 059 109 229H
VW 059 109 229J
VAG 059 109 229J
AUDI 059 109 229J
VW 059 109 229K
VAG 059 109 229K
AUDI 059 109 229K
VW 059 109 229M
VAG 059 109 229M
AUDI 059 109 229M
VW 059 109 229N
VAG 059 109 229N
AUDI 059 109 229N
VW 059 109 467E
VAG 059 109 467E
AUDI 059 109 467E
VW 059 109 507A
VAG 059 109 507A
AUDI 059 109 507A
VW 059 109 507C
VAG 059 109 507C
AUDI 059 109 507C
VW 059 109 507D
VAG 059 109 507D
AUDI 059 109 507D
VW 079 109 139A
VAG 079 109 139A
AUDI 079 109 139A
VW 079 109 139M
VAG 079 109 139M
AUDI 079 109 139M
VW 079 109 229J
VAG 079 109 229J
AUDI 079 109 229J
VW 079 109 510F
VAG 079 109 510F
AUDI 079 109 510F
VW 079 109 510M
VAG 079 109 510M
AUDI 079 109 510M
Parts list
Description Article number OE comparison number Amount
Timing Chain 59188 1
Timing Chain 59190 1
Timing Chain 60307 1
Timing Chain 61220 1
Tensioner, timing chain 59291 1
Tensioner, timing chain 60333 1
Tensioner, timing chain 60334 1
Tensioner, timing chain 60366 1
Guides, timing chain 59266 1
Guides, timing chain 60318 1
Guides, timing chain 61225 1
Guides, timing chain 61226 1
Guides, timing chain 61227 1
Gasket, housing cover (crankcase) 60355 1
