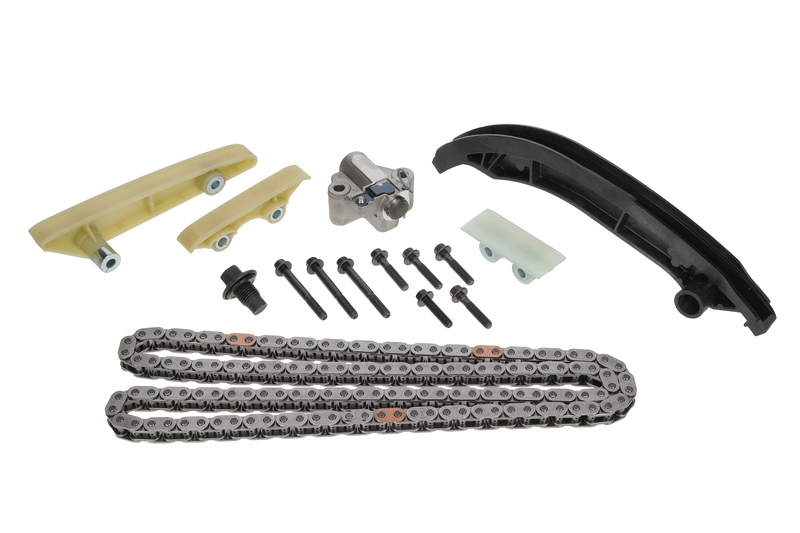

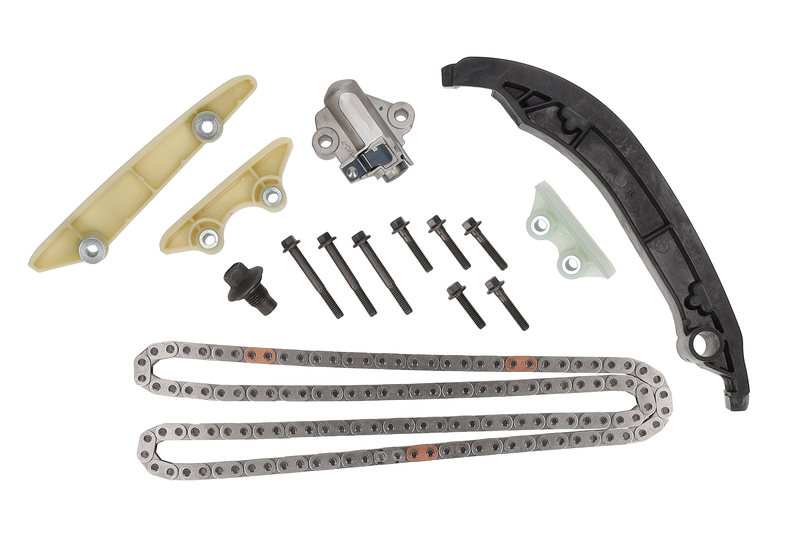

Timing Chain Kit

Timing Chain Kit

Timing Chain KitTiming Chain KitTiming Chain Kit
75733Set
Quality iwis original OEM quality, Made in Germany
Supplementary Article/Supplementary Info: with slide rails,with chain tensioner,Check and replace gears if necessary
Supplementary Article/Supplementary Info 2: with bolts/screws
Number of chain links: 132
Guarantee: 5 years guarantee or up to 100,000 km
Chain Type: Simplex,Closed chain
Unit 1
Vehicle list
Manufacturer Model Motorcode Built from to K-type KW
FORD RANGER (TKE) GBVAJQW 04/2011 / 12573 0092
FORD RANGER (TKE) GBVAJQW 04/2011 / 12574 0092
FORD RANGER (TKE) 05/2015 / 116220 0096
FORD RANGER (TKE) 05/2015 / 116221 0096
FORD RANGER (TKE) GBVAJQJ 11/2011 / 57328 0110
FORD RANGER (TKE) GBVAJQJ 04/2011 / 12605 0110
FORD RANGER (TKE) 05/2015 / 116219 0118
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) DRRB, DRRC , DRRA 10/2011 08/2014 11957 0074
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) CYRB, CYRA 09/2011 12/2014 11958 0092
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) USRB, USRA 09/2011 08/2014 54979 0100
FORD TRANSIT Kasten (FA_ _) DRRA, DRRC , DRRB 10/2011 08/2014 11961 0074
FORD TRANSIT Kasten (FA_ _) CYRA, CYRB 09/2011 12/2014 11963 0092
FORD TRANSIT Kasten (FA_ _) CYRC, CYRB 10/2011 08/2014 11965 0092
FORD TRANSIT Kasten (FA_ _) CVRC, CVRB , CVRA 10/2011 08/2014 11964 0114
FORD TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) DRRC, DRRA , DRRB 10/2011 08/2014 11967 0074
FORD TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) CYRA, CYRB 10/2011 08/2014 11969 0092
FORD TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) CYRC, CYRB 10/2011 08/2014 11970 0092
FORD TRANSIT Pritsche/Fahrgestell (FM_ _, FN_ _, FF_ _) CVRA, CVRC , CVRB 10/2011 08/2014 11971 0114
FORD TRANSIT V363 Bus (FAD, FBD) DRR5 08/2013 12/2018 107657 0074
FORD TRANSIT V363 Bus (FAD, FBD) USR6 08/2013 12/2018 101100 0092
FORD TRANSIT V363 Bus (FAD, FBD) CYR5, CY24 08/2013 12/2018 107819 0092
FORD TRANSIT V363 Bus (FAD, FBD) CV24, UYR6 , CVR5 08/2013 12/2018 101101 0114
FORD TRANSIT V363 Kasten (FCD, FDD) DRR5 08/2013 12/2018 101111 0074
FORD TRANSIT V363 Kasten (FCD, FDD) CY24, CYR5 08/2013 12/2018 101109 0092
FORD TRANSIT V363 Kasten (FCD, FDD) CV24, CVR5 , UYR6 08/2013 12/2018 101102 0114
FORD TRANSIT V363 Kasten (FCD, FDD) CVR5, CV24 08/2015 12/2018 101103 0114
FORD TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) YMR6 01/2017 / 123031 0096
FORD TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) DRR5 08/2013 12/2018 101113 0074
FORD TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) USR6 08/2013 12/2018 101115 0092
FORD TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) CY24, CYR5 08/2013 12/2018 101117 0092
FORD TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) CVR5, UYR6 , CV24 08/2013 12/2018 101119 0114
FORD TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) CVR5, CV24 08/2013 12/2018 101122 0114
FORD RANGER (TKE) 04/2011 / 55033 0088
FORD TRANSIT Kasten (FA_ _) 10/2011 08/2014 108639 0100
FORD TRANSIT V363 Pritsche/Fahrgestell (FED, FFD) 08/2013 12/2018 113619 0099
FORD TRANSIT V363 Bus (FAD, FBD) 08/2013 12/2018 120773 0099
FORD TRANSIT V363 Kasten (FCD, FDD) 01/2017 / 123043 0096
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 10/2011 08/2014 145254 0114
JAGUAR / / 13971
JAGUAR / / 13973
JAGUAR / / 112181
LANDROVER DEFENDER Station Wagon (L316, L315) ZSD-424 10/2006 02/2016 29983 0090
LANDROVER DEFENDER Pritsche/Fahrgestell (L316) 05/2007 02/2016 59758 0090
LANDROVER DEFENDER Cabrio (L316) ZSD-422 08/2011 02/2016 13972 0090
LANDROVER DEFENDER Cabrio (L316) ZSD-424 05/2007 02/2016 29982 0090
LANDROVER DEFENDER Station Wagon (L316, L315) 07/2007 02/2016 131583 0103
LANDROVER DEFENDER Pick Up (L316) ZSD-424 05/2007 02/2016 29984 0090
LANDROVER DEFENDER Pritsche/Fahrgestell (L316) ZSD-422 08/2011 02/2016 56210 0090
LANDROVER DEFENDER Pick Up (L316) 10/2009 05/2016 144640 0103
Reference list
Manufacturer Comparison number
FORD 1 013 938
FORD 1 102 710
FORD 1 107 166
FORD 1 372 433
FORD 1 372 434
FORD 1 372 435
FORD 1 372 438
FORD 1 372 807
FORD 1 372 841
FORD 1 465 146
FORD 1 465 148
FORD 1 490 858
FORD 1 704 049
FORD 1 704 066
FORD 1 704 069
FORD 1 704 070
FORD 1 704 089
FORD 1 743 564
FORD 1 753 155
FORD 1 753 161
FORD 2 261 879
FORD 6C1Q6K261AB
FORD 6C1Q6K261AC
FORD 6C1Q6K282AC
FORD 6C1Q6M256BB
FORD 97JM6730BA
FORD 97JM6730CA
FORD BK2Q6K254AB
FORD BK2Q6K261AA
FORD BK3Q6268AA
FORD BK3Q6M256AA
FORD BK3Q6M256BA
FORD BK3Q6M256BB
FORD CK3Q6M256AA
FORD CK3Q6M256BA
LANDROVER LR000437
LANDROVER LR004367
LANDROVER LR004449
LANDROVER LR004450
LANDROVER LR004457
LANDROVER LR004559
LANDROVER LR005329
LANDROVER LR005330
LANDROVER LR023524
LANDROVER LR023526
LANDROVER LR029910
LANDROVER LR029911
LANDROVER LR031384
LANDROVER LR031817
LANDROVER LR032979
LANDROVER LR032980
LANDROVER LR073675
FORD W500500S430
FORD W600604S430
Parts list
Description Article number OE comparison number Amount
Timing Chain 61292 1
Guides, timing chain 59232 1
Guides, timing chain 59233 1
Guides, timing chain 61293 1
Guides, timing chain 61294 1
Tensioner, timing chain 59276 1
Sliding Rail Bolts, timing chain 61295 1
screw 61296 4
screw 61297 3
Screw Plug, oil sump 59383 1
screw 61460 1
