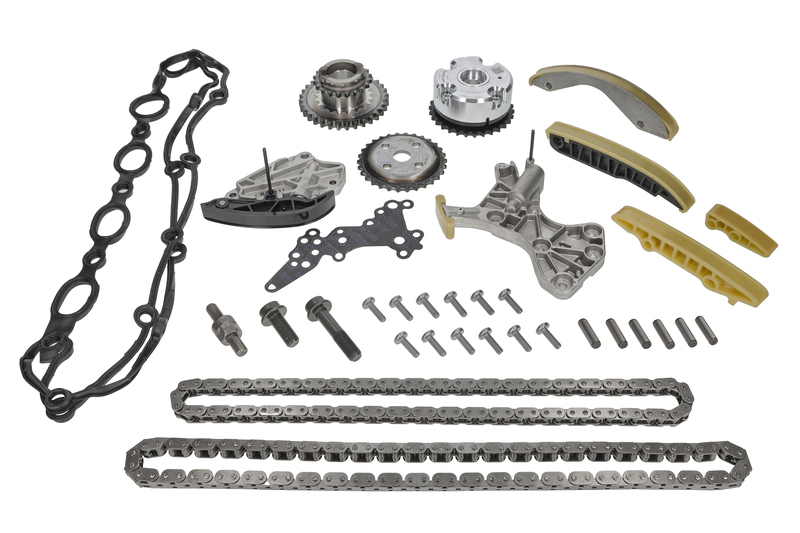

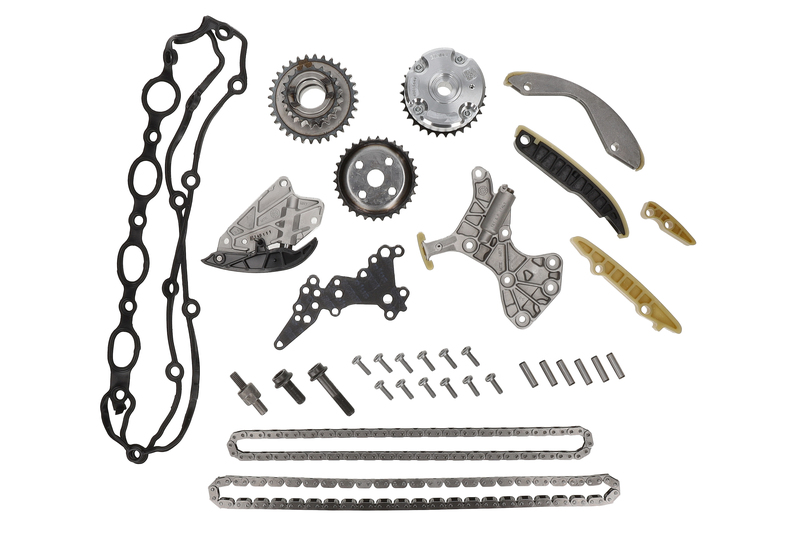

Timing Chain Kit
75852Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft adjuster,with gears,with cylinder head gasket,Check and replace gears if necessary |
| Supplementary Article/Supplementary Info 2: | with bolts/screws |
| Number of chain links: | 94,84 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Silent Chain,Closed chain |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| VW | JETTA IV (162, 163, AV3, AV2) | 04/2010 | 12/2017 | 9749 | 0125 | |
| VW | NEW BEETLE (9C1, 1C1) | 07/2005 | 09/2010 | 23865 | 0110 | |
| VW | NEW BEETLE Cabriolet (1Y7) | 07/2005 | 09/2010 | 23866 | 0110 | |
| VW | BJALLA (5C1, 5C2) | 04/2011 | 07/2019 | 58101 | 0125 | |
| VW | GOLF VI (5K1) | 07/2009 | 05/2013 | 58524 | 0125 | |
| VW | BEETLE Cabriolet (5C7, 5C8) | 12/2011 | 07/2016 | 116818 | 0125 |
| Manufacturer | Comparison number |
|---|---|
| VW | 06E 109 083L |
| VAG | 06E 109 083L |
| VW | 06E 109 281A |
| VAG | 06E 109 281A |
| VW | 07K 103 483B |
| VAG | 07K 103 483B |
| VW | 07K 103 483 |
| VAG | 07K 103 483 |
| VW | 07K 109 077E |
| VAG | 07K 109 077E |
| VW | 07K 109 083F |
| VAG | 07K 109 083F |
| VW | 07K 109 158B |
| VAG | 07K 109 158B |
| VW | 07K 109 217C |
| VAG | 07K 109 217C |
| VW | 07K 109 217D |
| VAG | 07K 109 217D |
| VW | 07K 109 217E |
| VAG | 07K 109 217E |
| VW | 07K 109 217F |
| VAG | 07K 109 217F |
| VW | 07K 109 231A |
| VAG | 07K 109 231A |
| VW | 07K 109 235A |
| VAG | 07K 109 235A |
| VW | 07K 109 467E |
| VAG | 07K 109 467E |
| VW | 07K 109 467F |
| VAG | 07K 109 467F |
| VW | 07K 109 467H |
| VAG | 07K 109 467H |
| VW | 07K 109 469G |
| VAG | 07K 109 469G |
| VW | 07K 109 510B |
| VAG | 07K 109 510B |
| VW | 07K 109 513C |
| VAG | 07K 109 513C |
| VW | 07K 109 513D |
| VAG | 07K 109 513D |
| VW | 07K 109 514D |
| VAG | 07K 109 514D |
| VW | 07K 109 571D |
| VAG | 07K 109 571D |
| VW | N 910 502 02 |
| VAG | N 910 502 02 |
| VW | N 910 991 01 |
| VAG | N 910 991 01 |
| VW | WHT 000 041 |
| VAG | WHT 000 041 |
| VW | WHT 000 195 |
| VAG | WHT 000 195 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 61355 | 1 | |
| Timing Chain | 61356 | 1 | |
| Guides, timing chain | 61363 | 1 | |
| Guides, timing chain | 61364 | 1 | |
| Guides, timing chain | 61365 | 1 | |
| Guides, timing chain | 61366 | 1 | |
| Tensioner, timing chain | 61367 | 1 | |
| Tensioner, timing chain | 61369 | 1 | |
| Camshaft Adjuster | 61370 | 06E 109 083L | 1 |
| Gear, camshaft | 61371 | 1 | |
| Gear, timing chain deflector | 61372 | 1 | |
| Seal, timing chain tensioner | 61373 | 1 | |
| Gasket, cylinder head cover | 61374 | 1 | |
| Screw, camshaft gear | 61376 | 1 | |
| screw | 61377 | 12 | |
| screw | 61378 | 1 | |
| screw | 61379 | 1 | |
| screw | 61380 | 6 |
