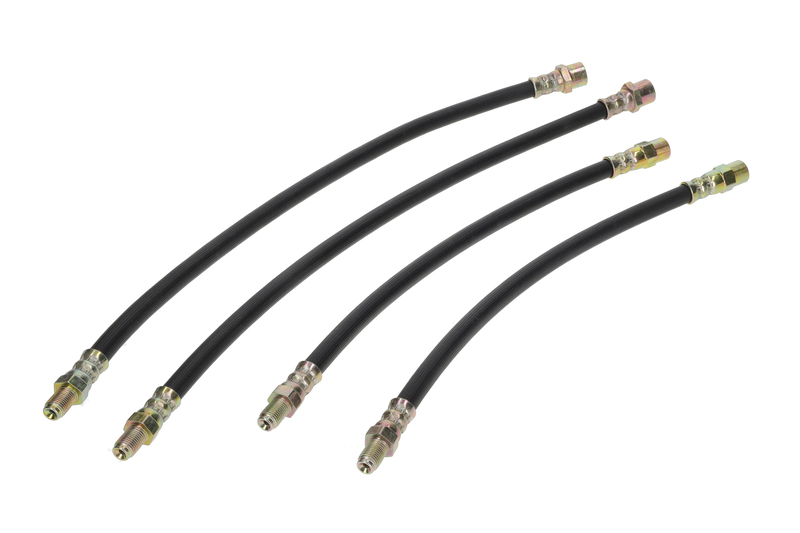

Brake Hose Set
76077Set
| Quality | Original AIC quality |
| Fitting Position: | Front Axle Left,Front Axle Right,Rear Axle Left,Rear Axle Right |
| Internal Thread [mm]: | M10x1 mm |
| External Thread [mm]: | M10x1 mm |
| Length 1 [mm]: | 385 mm |
| Length 2 [mm]: | 280 mm |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Number of Parts [parts]: | 4 -part |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| MAYBACH | / | / | 18717 | |||
| MAYBACH | / | / | 18713 | |||
| MAYBACH | / | / | 18715 | |||
| MAYBACH | / | / | 119919 | |||
| MAYBACH | / | / | 119918 | |||
| MAYBACH | / | / | 23136 | |||
| MAYBACH | / | / | 23461 | |||
| MAYBACH | / | / | 26571 | |||
| MAYBACH | / | / | 31500 | |||
| MAYBACH | / | / | 59084 | |||
| MAYBACH | / | / | 7519 | |||
| MAYBACH | / | / | 32678 | |||
| MAYBACH | / | / | 17943 | |||
| MAYBACH | / | / | 10110 | |||
| MAYBACH | / | / | 18709 | |||
| MAYBACH | / | / | 18719 | |||
| MERCEDES | E-KLASSE (W210) | M 112.911 | 06/1997 | 08/2000 | 8687 | 0125 |
| MERCEDES | E-KLASSE (W210) | M 104.945 | 01/1996 | 06/1997 | 5372 | 0142 |
| MERCEDES | E-KLASSE (W210) | M 112.921 | 12/1996 | 03/2002 | 7832 | 0150 |
| MERCEDES | E-KLASSE (W210) | M 104.995 | 06/1995 | 06/1997 | 4694 | 0162 |
| MERCEDES | E-KLASSE (W210) | M 112.941 | 06/1997 | 03/2002 | 7834 | 0165 |
| MERCEDES | E-KLASSE (W210) | M 119.985 | 01/1996 | 06/1997 | 5374 | 0205 |
| MERCEDES | E-KLASSE (W210) | M 113.940 | 06/1997 | 03/2002 | 8688 | 0205 |
| MERCEDES | E-KLASSE (W210) | M 119.985 (AMG 5.0) | 02/1996 | 08/1997 | 5375 | 0255 |
| MERCEDES | E-KLASSE (W210) | M 113.980 | 08/1997 | 03/2002 | 8833 | 0260 |
| MERCEDES | E-KLASSE (W210) | OM 604.917 | 01/1996 | 03/2002 | 8557 | 0065 |
| MERCEDES | E-KLASSE (W210) | OM 611.961 | 06/1998 | 03/2002 | 10146 | 0075 |
| MERCEDES | E-KLASSE (W210) | OM 604.912 | 06/1995 | 07/1999 | 4689 | 0070 |
| MERCEDES | E-KLASSE (W210) | OM 611.961 | 06/1998 | 07/1999 | 10144 | 0092 |
| MERCEDES | E-KLASSE (W210) | OM 605.912 | 06/1995 | 07/1999 | 4690 | 0083 |
| MERCEDES | E-KLASSE (W210) | OM 605.962 | 06/1997 | 07/1999 | 8388 | 0110 |
| MERCEDES | E-KLASSE (W210) | OM 602.982 | 03/1996 | 07/1999 | 5371 | 0095 |
| MERCEDES | E-KLASSE (W210) | OM 606.912 | 06/1995 | 06/1997 | 4692 | 0100 |
| MERCEDES | E-KLASSE (W210) | OM 606.962 | 12/1996 | 07/1999 | 7835 | 0130 |
| MERCEDES | E-CLASS Break (S210) | M 111.947 | 06/1997 | 03/2003 | 8691 | 0137 |
| MERCEDES | E-CLASS Break (S210) | M 112.911 | 06/1997 | 03/2003 | 8689 | 0125 |
| MERCEDES | E-CLASS Break (S210) | M 112.941 | 12/1996 | 03/2003 | 7838 | 0165 |
| MERCEDES | E-CLASS Break (S210) | M 119.985 | 06/1996 | 06/1997 | 5542 | 0205 |
| MERCEDES | E-CLASS Break (S210) | M 113.940 | 06/1997 | 03/2003 | 8690 | 0205 |
| MERCEDES | E-CLASS Break (S210) | M 113.980 | 08/1997 | 03/2003 | 8834 | 0260 |
| MERCEDES | E-CLASS Break (S210) | OM 611.961 | 06/1998 | 07/1999 | 10145 | 0092 |
| MERCEDES | E-CLASS Break (S210) | OM 605.912 | 06/1996 | 07/1999 | 5544 | 0083 |
| MERCEDES | E-CLASS Break (S210) | OM 605.962 | 06/1997 | 07/1999 | 8389 | 0110 |
| MERCEDES | E-CLASS Break (S210) | OM 602.982 | 06/1996 | 07/1999 | 5543 | 0095 |
| MERCEDES | E-CLASS Break (S210) | OM 606.962 | 12/1996 | 07/1999 | 7839 | 0130 |
| MERCEDES | S-KLASSE (W220, V220) | M 275.950 | 09/2002 | 08/2005 | 16960 | 0368 |
| MERCEDES | S-KLASSE (W220, V220) | M 113.991 | 06/2002 | 08/2005 | 16963 | 0368 |
| MERCEDES | S-KLASSE Coupe (C215) | M 113.960 | 03/1999 | 03/2006 | 11459 | 0225 |
| MERCEDES | S-KLASSE Coupe (C215) | M 275.950 | 09/2002 | 03/2006 | 16961 | 0368 |
| MERCEDES | S-KLASSE Coupe (C215) | M 137.970 | 03/1999 | 03/2006 | 11460 | 0270 |
| MERCEDES | S-KLASSE Coupe (C215) | M 113.986 | 10/1999 | 03/2006 | 14596 | 0265 |
| MERCEDES | S-KLASSE Coupe (C215) | M 113.991 | 06/2002 | 03/2006 | 16977 | 0368 |
| MERCEDES | S-KLASSE Coupe (C215) | M 275.980 | 09/2003 | 03/2006 | 17390 | 0450 |
| MERCEDES | C-KLASSE (W202) | M 111.920, M 111.921 | 03/1993 | 05/2000 | 966 | 0090 |
| MERCEDES | C-KLASSE (W202) | M 111.941, M 111.945 | 01/1994 | 05/2000 | 3945 | 0100 |
| MERCEDES | C-KLASSE (W202) | M 111.944 | 10/1995 | 05/2000 | 5116 | 0132 |
| MERCEDES | C-KLASSE (W202) | M 111.961 | 03/1993 | 05/2000 | 967 | 0110 |
| MERCEDES | C-KLASSE (W202) | M 111.974 | 06/1996 | 06/1997 | 5934 | 0110 |
| MERCEDES | C-KLASSE (W202) | M 111.975 | 10/1995 | 05/2000 | 5115 | 0142 |
| MERCEDES | C-KLASSE (W202) | M 112.910 | 06/1997 | 05/2000 | 8384 | 0125 |
| MERCEDES | C-KLASSE (W202) | M 104.941 | 05/1993 | 05/2000 | 968 | 0142 |
| MERCEDES | C-KLASSE (W202) | M 112.920 | 06/1997 | 05/2000 | 8385 | 0145 |
| MERCEDES | C-KLASSE (W202) | M 104.941 (AMG 3.6) | 05/1994 | 05/2000 | 3950 | 0206 |
| MERCEDES | C-KLASSE (W202) | M 113.944 | 08/1997 | 05/2000 | 8846 | 0225 |
| MERCEDES | C-KLASSE (W202) | OM 604.915 | 10/1996 | 05/2000 | 5942 | 0065 |
| MERCEDES | C-KLASSE (W202) | OM 611.960 | 03/1998 | 05/2000 | 10229 | 0075 |
| MERCEDES | C-KLASSE (W202) | OM 611.960 | 09/1997 | 05/2000 | 8888 | 0092 |
| MERCEDES | C-KLASSE (W202) | OM 604.910 | 08/1993 | 05/2000 | 963 | 0070 |
| MERCEDES | C-KLASSE (W202) | OM 605.910 | 05/1993 | 05/2000 | 964 | 0083 |
| MERCEDES | C-KLASSE (W202) | OM 605.960 | 10/1995 | 05/2000 | 5117 | 0110 |
| MERCEDES | C-CLASS Break (S202) | M 111.920, M 111.921 | 06/1996 | 09/2000 | 5405 | 0090 |
| MERCEDES | C-CLASS Break (S202) | M 111.941, M 111.945 | 06/1996 | 03/2001 | 5406 | 0100 |
| MERCEDES | C-CLASS Break (S202) | M 111.944 | 11/1996 | 03/2001 | 9039 | 0141 |
| MERCEDES | C-CLASS Break (S202) | M 111.974 | 06/1996 | 06/1998 | 5956 | 0110 |
| MERCEDES | C-CLASS Break (S202) | M 111.975 | 06/1997 | 09/2000 | 8380 | 0142 |
| MERCEDES | C-CLASS Break (S202) | M 112.910 | 06/1997 | 09/2000 | 8381 | 0125 |
| MERCEDES | C-CLASS Break (S202) | M 112.920 | 06/1997 | 03/2001 | 8382 | 0145 |
| MERCEDES | C-CLASS Break (S202) | M 113.944 | 08/1997 | 03/2001 | 14415 | 0225 |
| MERCEDES | C-CLASS Break (S202) | OM 604.915 | 10/1996 | 03/2001 | 5977 | 0065 |
| MERCEDES | C-CLASS Break (S202) | OM 611.960 | 03/1998 | 03/2001 | 10966 | 0075 |
| MERCEDES | C-CLASS Break (S202) | OM 611.960 | 09/1997 | 03/2001 | 8889 | 0092 |
| MERCEDES | C-CLASS Break (S202) | OM 604.910 | 06/1996 | 09/1998 | 5407 | 0070 |
| MERCEDES | C-CLASS Break (S202) | OM 605.960 | 06/1996 | 03/2001 | 5408 | 0110 |
| MERCEDES | C-KLASSE (W203) | M 112.953 | 07/2002 | 02/2007 | 16928 | 0160 |
| MERCEDES | C-KLASSE (W204) | 07/2007 | 01/2014 | 23135 | 0150 | |
| MERCEDES | S-KLASSE (W140) | 10/1995 | 08/1998 | 30013 | 0162 | |
| MERCEDES | C-KLASSE T-Model (S203) | M 112.953 | 07/2002 | 08/2007 | 16930 | 0160 |
| MERCEDES | SPRINTER 4,6-t Kasten (B906) | 06/2009 | 12/2009 | 59465 | 0110 | |
| MERCEDES | VARIO Triebkopf | 01/2006 | 12/2013 | 100304 | 0095 | |
| MERCEDES | VARIO Triebkopf | 01/2006 | 12/2013 | 100305 | 0115 | |
| MERCEDES | VARIO Triebkopf | 09/2006 | 12/2013 | 100306 | 0130 | |
| MERCEDES | SPRINTER 5-t Bus (B906) | 03/2009 | 12/2018 | 117827 | 0140 | |
| MERCEDES | SPRINTER 5-t Bus (B906) | 03/2009 | 12/2018 | 117828 | 0120 | |
| MERCEDES | SPRINTER 5-t Bus (B906) | 03/2009 | 12/2016 | 117829 | 0095 | |
| MERCEDES | SPRINTER 4,6-t Kasten (B906) | 05/2016 | 12/2018 | 135691 | 0105 | |
| MERCEDES | SPRINTER 4,6-t Kasten (B906) | 11/2013 | 12/2018 | 138913 | 0120 | |
| MERCEDES | CLK (C208) | M 111.945 | 06/1997 | 06/2002 | 8375 | 0100 |
| MERCEDES | CLK (C208) | M 112.940 | 06/1997 | 06/2002 | 8379 | 0160 |
| MERCEDES | CLK (C208) | M 113.943 | 07/1998 | 06/2002 | 9340 | 0205 |
| MERCEDES | CLK Cabriolet (A208) | M 111.941, M 111.945 | 03/1998 | 03/2002 | 9500 | 0100 |
| MERCEDES | CLK Cabriolet (A208) | M 111.975, M 111.973 | 03/1998 | 06/2000 | 9501 | 0142 |
| MERCEDES | CLK Cabriolet (A208) | M 112.940 | 03/1998 | 03/2002 | 9502 | 0160 |
| Manufacturer | Comparison number |
|---|---|
| 171 428 0035 | |
| MERCE | 171 428 0035 |
| 202 428 0135 | |
| MERCE | 202 428 0135 |
| 202 428 0735 | |
| MERCE | 202 428 0735 |
| 204 428 0135 | |
| MERCE | 204 428 0135 |
| 204 428 0435 | |
| MERCE | 204 428 0435 |
| 210 428 00 35 | |
| MERCE | 210 428 00 35 |
| MERCE | A171 428 0035 |
| MERCE | A202 428 0135 |
| MERCE | A202 428 0735 |
| MERCE | A204 428 0135 |
| MERCE | A204 428 0435 |
| MERCE | A210 428 0035 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Brake Hose | 50921 | 210 428 0035 | 2 |
| Brake Hose | 50930 | 202 428 0735 | 2 |
| Brake Hose | 50921 | 210 428 0035 | 2 |
| Brake Hose | 50930 | 202 428 0735 | 2 |
