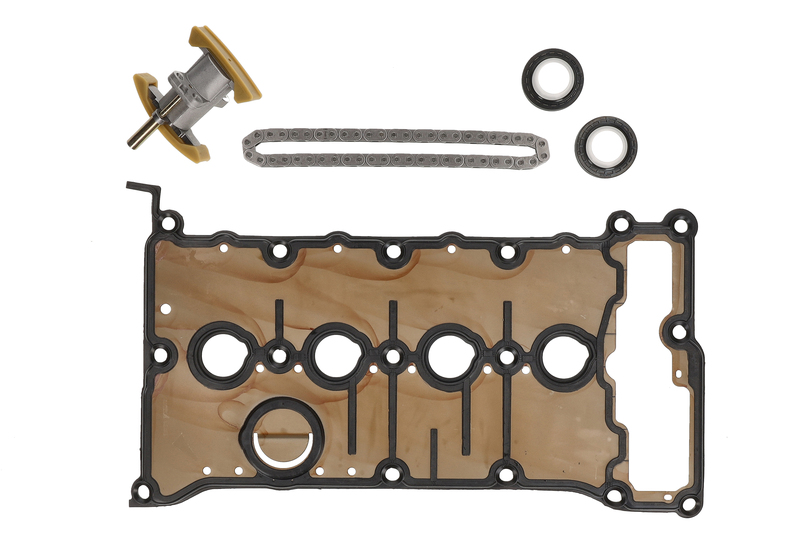

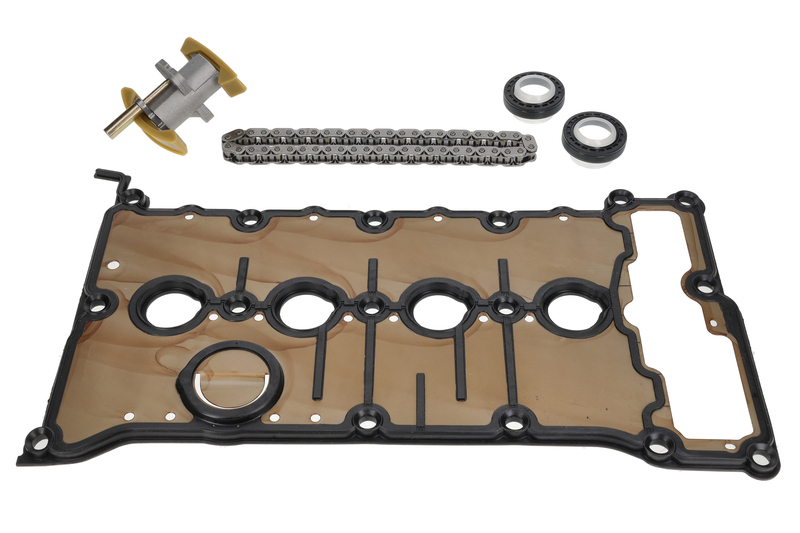

Timing Chain Kit
76096Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with chain tensioner,with cylinder head cover gasket,with camshaft seal,Check and replace gears if necessary |
| Number of chain links: | 50 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| VW | PASSAT B5.5 (3B3) | ALT | 11/2001 | 05/2005 | 16346 | 0096 |
| VW | PASSAT B5.5 Estate (3B6) | ALT | 11/2001 | 05/2005 | 16347 | 0096 |
| AUDI | A4 B6 (8E2) | ALT | 11/2000 | 12/2004 | 15507 | 0096 |
| AUDI | A4 B6 Avant (8E5) | ALT | 09/2001 | 12/2004 | 16044 | 0096 |
| AUDI | A4 B6 Cabriolet (8H7) | ALT | 09/2004 | 12/2005 | 18678 | 0096 |
| AUDI | A4 B7 (8EC) | ALT | 11/2004 | 06/2008 | 18398 | 0096 |
| AUDI | A4 B7 Avant (8ED) | ALT | 11/2004 | 06/2008 | 18404 | 0096 |
| AUDI | A6 C5 (4B2, 4B4) | ALT | 08/2001 | 01/2005 | 16003 | 0096 |
| AUDI | A6 C5 Avant (4B5, 4B6) | ALT | 08/2001 | 01/2005 | 16011 | 0096 |
| Manufacturer | Comparison number |
|---|---|
| VAG | 038 103 085A |
| AUDI | 038 103 085A |
| VAG | 058 109 229B |
| AUDI | 058 109 229B |
| VAG | 058 109 229 |
| AUDI | 058 109 229 |
| VAG | 06B 103 483H |
| AUDI | 06B 103 483H |
| VAG | 06B 109 217B |
| AUDI | 06B 109 217B |
| VAG | 078 109 120 |
| AUDI | 078 109 120 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59189 | 1 | |
| Tensioner, timing chain | 61316 | 1 | |
| Gasket, cylinder head cover | 61399 | 1 | |
| Shaft Seal, crankshaft | 59327 | 2 |
