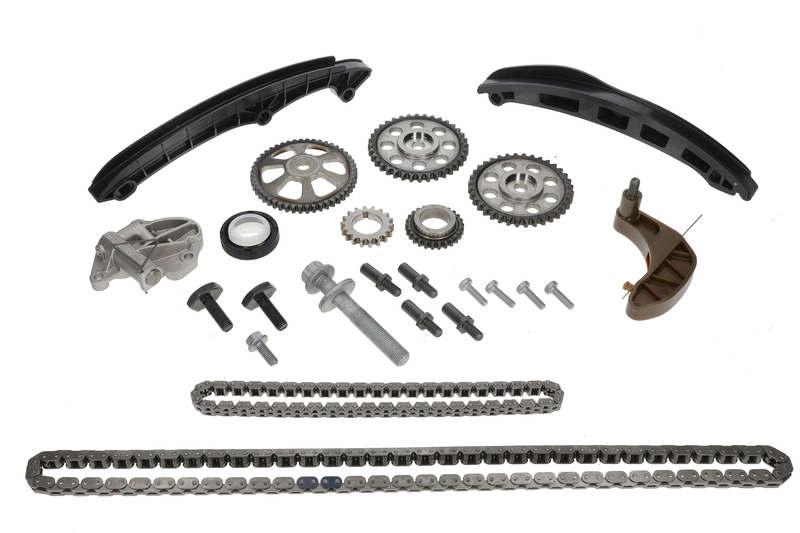

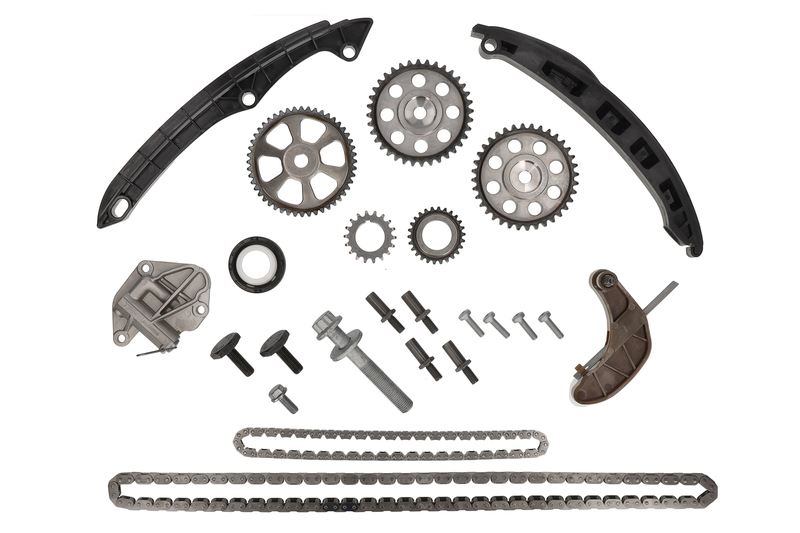

Timing Chain Kit
76134Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft sprocket,with crankshaft gear,with oil pump gears,with crankshaft seal,Check and replace gears if necessary |
| Supplementary Article/Supplementary Info 2: | with bolts/screws |
| Number of chain links: | 86,130 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Silent Chain,Closed chain |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| SKODA | FABIA II Combi (545) | CGPB | 11/2011 | 12/2014 | 9410 | 0044 |
| SKODA | FABIA II Combi (545) | BZG, CEVA , CHTA , CGPA | 10/2007 | 12/2014 | 23165 | 0051 |
| SKODA | RAPID (NH3, NK3, NK6) | CGPC | 07/2012 | 06/2015 | 56161 | 0055 |
| SKODA | RAPID Spaceback (NH1) | CGPC | 07/2012 | 06/2015 | 107504 | 0055 |
| SKODA | ROOMSTER (5J7) | BZG, CGPA | 01/2007 | 05/2015 | 23292 | 0051 |
| SKODA | ROOMSTER Praktik (5J) | BZG, CGPA | 03/2007 | 05/2015 | 23240 | 0051 |
| SKODA | FABIA II (542) | 07/2007 | 11/2014 | 133135 | 0051 | |
| SKODA | FABIA II Combi (545) | 10/2007 | 11/2014 | 133139 | 0051 | |
| SKODA | ROOMSTER (5J7) | 03/2009 | 05/2015 | 133245 | 0051 | |
| SKODA | FABIA II (542) | CGPB | 11/2011 | 12/2014 | 9409 | 0044 |
| SKODA | FABIA II (542) | BZG, CEVA , CHTA , CGPA | 01/2007 | 12/2014 | 22945 | 0051 |
| VW | POLO V (6R1, 6C1) | CGPB | 06/2009 | 05/2014 | 30972 | 0044 |
| VW | POLO V (6R1, 6C1) | CGPA | 06/2009 | 05/2014 | 30973 | 0051 |
| VW | POLO V Kasten/Schrägheck (6R1, 6C1) | 03/2009 | 05/2014 | 133515 | 0044 | |
| VW | POLO V Kasten/Schrägheck (6R1, 6C1) | 03/2009 | 05/2014 | 133516 | 0051 | |
| SEAT | CORDOBA (6L2) | BXV | 05/2006 | 11/2009 | 20054 | 0051 |
| SEAT | IBIZA Mk IV (6J5, 6P1) | CGPB | 07/2009 | 05/2015 | 523 | 0044 |
| SEAT | IBIZA Mk IV (6J5, 6P1) | BZG, CGPA , CJLB | 03/2008 | 05/2015 | 27584 | 0051 |
| SEAT | IBIZA Mk IV SC (6J1, 6P5) | CGPB | 07/2009 | 05/2015 | 31601 | 0044 |
| SEAT | IBIZA Mk IV SC (6J1, 6P5) | BZG, CGPA , CJLB | 07/2008 | 05/2015 | 28130 | 0051 |
| SEAT | IBIZA Mk IV ST (6J8, 6P8) | CGPB | 05/2010 | 05/2015 | 33326 | 0044 |
| SEAT | IBIZA Mk IV ST (6J8, 6P8) | BZG, CGPA , CJLB | 05/2010 | 05/2015 | 33327 | 0051 |
| SEAT | TOLEDO IV (KG3) | CGPC | 07/2012 | 06/2015 | 57522 | 0055 |
| SEAT | IBIZA Mk IV (6J5, 6P1) | 03/2008 | 05/2011 | 133073 | 0051 | |
| SEAT | IBIZA IV Kasten/Schrägheck (6J1) | 04/2008 | 05/2015 | 133078 | 0051 |
| Manufacturer | Comparison number |
|---|---|
| SEAT | 038 103 085E |
| SKODA | 038 103 085E |
| VW | 038 103 085E |
| VAG | 038 103 085E |
| SEAT | 03C 109 158A |
| SKODA | 03C 109 158A |
| VW | 03C 109 158A |
| VAG | 03C 109 158A |
| SEAT | 03C 109 469K |
| SKODA | 03C 109 469K |
| VW | 03C 109 469K |
| VAG | 03C 109 469K |
| SEAT | 03C 109 509P |
| SKODA | 03C 109 509P |
| VW | 03C 109 509P |
| VAG | 03C 109 509P |
| SEAT | 03E 105 209N |
| SKODA | 03E 105 209N |
| VW | 03E 105 209N |
| VAG | 03E 105 209N |
| SEAT | 03E 105 209S |
| SKODA | 03E 105 209S |
| VW | 03E 105 209S |
| VAG | 03E 105 209S |
| SEAT | 03E 109 507AA |
| SKODA | 03E 109 507AA |
| VW | 03E 109 507AA |
| VAG | 03E 109 507AA |
| SEAT | 03E 109 507AE |
| SKODA | 03E 109 507AE |
| VW | 03E 109 507AE |
| VAG | 03E 109 507AE |
| SKODA | 03E 109 511A |
| VW | 03E 109 511A |
| VAG | 03E 109 511A |
| SEAT | 03E 109 511 |
| SEAT | 03E 109 571D |
| SKODA | 03E 109 571D |
| VW | 03E 109 571D |
| VAG | 03E 109 571D |
| SEAT | 03E 115 121E |
| SKODA | 03E 115 121E |
| VW | 03E 115 121E |
| VAG | 03E 115 121E |
| SEAT | 03E 115 225 |
| SKODA | 03E 115 225 |
| VW | 03E 115 225 |
| VAG | 03E 115 225 |
| SEAT | N 101 559 06 |
| SKODA | N 101 559 06 |
| VW | N 101 559 06 |
| VAG | N 101 559 06 |
| SEAT | N 107 002 01 |
| SKODA | N 107 002 01 |
| VW | N 107 002 01 |
| VAG | N 107 002 01 |
| SEAT | N 909 873 02 |
| SKODA | N 909 873 02 |
| VW | N 909 873 02 |
| VAG | N 909 873 02 |
| SEAT | N 909 948 02 |
| SKODA | N 909 948 02 |
| VW | N 909 948 02 |
| VAG | N 909 948 02 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Tensioner, timing chain | 59287 | 1 | |
| Bolt, crankshaft gear | 59338 | 1 | |
| Screw, camshaft gear | 59341 | 2 | |
| Timing Chain | 59182 | 1 | |
| Guides, timing chain | 59251 | 1 | |
| Guides, timing chain | 59253 | 1 | |
| Chain Tensioner, oil pump drive | 59286 | 1 | |
| Sprocket/Gear, oil pump | 59316 | 1 | |
| Chain, oil pump drive | 59194 | 1 | |
| Gear, crankshaft | 59413 | 1 | |
| Gear, camshaft | 59775 | 1 | |
| Sliding Rail Bolts, timing chain | 59786 | 4 | |
| Shaft Seal, crankshaft | 59795 | 1 | |
| Gear, crankshaft | 60391 | 1 | |
| Screw | 60393 | 4 | |
| screw | 61408 | 1 |
