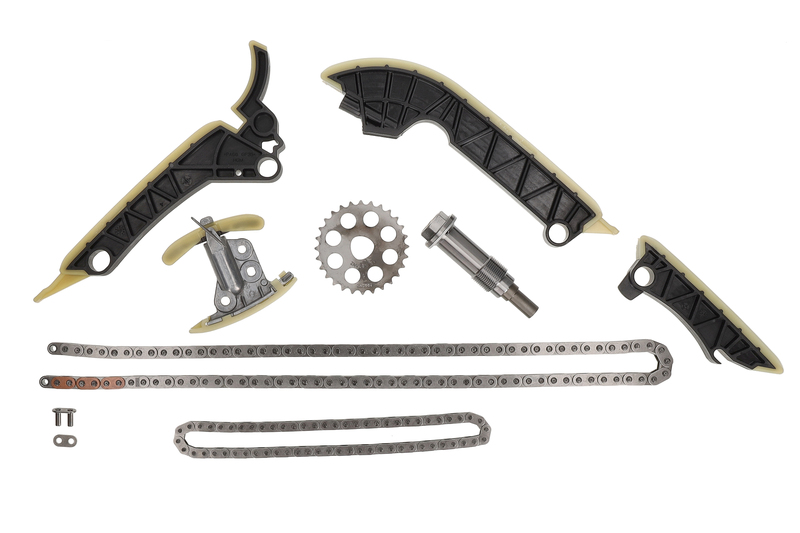

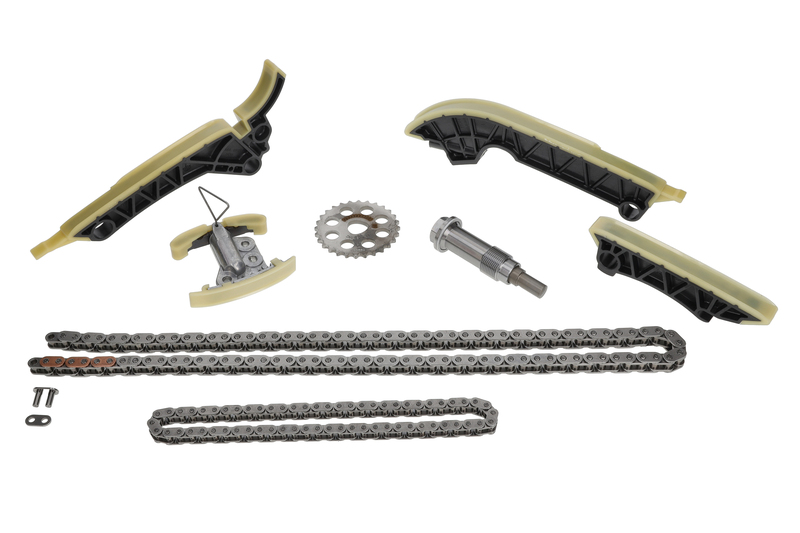

Timing Chain Kit
76406Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | Chain bolts with TRITAN® coating,with slide rails,with chain tensioner,with oil pump gears,Check and replace gears if necessary |
| Number of chain links: | 102,62 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain,Open chain,with chain lock |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| MAYBACH | / | / | 130797 | |||
| MAYBACH | / | / | 131315 | |||
| MAYBACH | / | / | 131297 | |||
| MAYBACH | / | / | 130970 | |||
| MAYBACH | / | / | 131369 | |||
| MAYBACH | / | / | 140439 | |||
| MAYBACH | / | / | 131858 | |||
| MAYBACH | / | / | 131857 | |||
| MAYBACH | / | / | 131373 | |||
| MAYBACH | / | / | 131294 | |||
| MAYBACH | / | / | 130972 | |||
| MAYBACH | / | / | 130969 | |||
| MAYBACH | / | / | 130971 | |||
| MAYBACH | / | / | 131368 | |||
| MAYBACH | / | / | 139281 | |||
| MAYBACH | / | / | 131844 | |||
| MAYBACH | / | / | 131993 | |||
| MAYBACH | / | / | 131843 | |||
| MAYBACH | / | / | 131994 | |||
| MAYBACH | / | / | 131992 | |||
| MAYBACH | / | / | 131979 | |||
| MAYBACH | / | / | 131980 | |||
| MAYBACH | / | / | 131985 | |||
| MAYBACH | / | / | 131986 | |||
| MAYBACH | / | / | 131372 | |||
| MAYBACH | / | / | 131314 | |||
| MAYBACH | / | / | 134238 | |||
| MAYBACH | / | / | 134237 | |||
| MAYBACH | / | / | 134048 | |||
| MAYBACH | / | / | 134049 | |||
| MAYBACH | / | / | 136124 | |||
| MAYBACH | / | / | 136125 | |||
| MAYBACH | / | / | 132849 | |||
| MAYBACH | / | / | 136181 | |||
| MAYBACH | / | / | 136184 | |||
| MAYBACH | / | / | 136133 | |||
| MAYBACH | / | / | 136130 | |||
| MAYBACH | / | / | 136129 | |||
| MAYBACH | / | / | 136128 | |||
| MAYBACH | / | / | 136132 | |||
| MAYBACH | / | / | 136127 | |||
| MAYBACH | / | / | 136131 | |||
| MAYBACH | / | / | 136268 | |||
| MAYBACH | / | / | 136269 | |||
| MAYBACH | / | / | 136010 | |||
| MAYBACH | / | / | 141298 | |||
| MAYBACH | / | / | 136004 | |||
| MAYBACH | / | / | 136005 | |||
| MAYBACH | / | / | 136270 | |||
| MAYBACH | / | / | 136271 | |||
| MAYBACH | / | / | 136012 | |||
| MAYBACH | / | / | 136013 | |||
| MAYBACH | / | / | 136026 | |||
| MAYBACH | / | / | 136027 | |||
| MAYBACH | / | / | 136006 | |||
| MAYBACH | / | / | 136007 | |||
| MAYBACH | / | / | 136272 | |||
| MAYBACH | / | / | 136273 | |||
| MAYBACH | / | / | 136014 | |||
| MAYBACH | / | / | 136015 | |||
| MAYBACH | / | / | 136028 | |||
| MAYBACH | / | / | 136029 | |||
| MAYBACH | / | / | 136008 | |||
| MAYBACH | / | / | 136009 | |||
| MAYBACH | / | / | 138980 | |||
| MAYBACH | / | / | 138981 | |||
| MAYBACH | / | / | 136030 | |||
| MAYBACH | / | / | 136031 | |||
| MAYBACH | / | / | 136523 | |||
| MAYBACH | / | / | 136522 | |||
| MAYBACH | / | / | 137528 | |||
| MAYBACH | / | / | 137527 | |||
| MAYBACH | / | / | 137602 | |||
| MAYBACH | / | / | 137601 | |||
| MAYBACH | / | / | 137599 | |||
| MERCEDES | VITO Kasten (W447) | 04/2020 | / | 136011 | 0100 | |
| MERCEDES | GLB (X247) | 08/2019 | / | 137600 | 0110 | |
| MERCEDES | B-KLASSE Sports Tourer (W247) | 10/2019 | 09/2021 | 138068 | 0110 | |
| MERCEDES | B-KLASSE Sports Tourer (W247) | 10/2019 | / | 138071 | 0140 | |
| MERCEDES | A-KLASSE (W177) | 10/2019 | / | 138072 | 0110 | |
| MERCEDES | A-KLASSE (W177) | 10/2019 | / | 138073 | 0140 | |
| MERCEDES | A-KLASSE Stufenheck (V177) | 10/2019 | / | 138082 | 0110 | |
| MERCEDES | A-KLASSE Stufenheck (V177) | 10/2019 | / | 138083 | 0140 | |
| MERCEDES | CLA Shooting Brake (X118) | 10/2019 | / | 138109 | 0110 | |
| MERCEDES | CLA Shooting Brake (X118) | 10/2019 | / | 138110 | 0140 | |
| MERCEDES | GLB (X247) | 12/2019 | / | 138761 | 0140 | |
| MERCEDES | GLA (H247) | 02/2020 | / | 139655 | 0110 | |
| MERCEDES | GLA (H247) | 02/2020 | / | 139656 | 0110 | |
| MERCEDES | GLA (H247) | 02/2020 | / | 139658 | 0140 | |
| MERCEDES | GLA (H247) | 02/2020 | / | 139659 | 0140 | |
| MERCEDES | VITO Tourer (W447) | 04/2020 | 12/2020 | 140406 | 0176 | |
| MERCEDES | VITO Tourer (W447) | 04/2020 | 12/2020 | 140408 | 0176 | |
| MERCEDES | VITO Dualiner (W447) | 04/2020 | 12/2020 | 140412 | 0176 | |
| MERCEDES | VITO Dualiner (W447) | 04/2020 | 12/2020 | 140413 | 0176 | |
| MERCEDES | GLE (V167) | 03/2020 | 03/2023 | 140436 | 0235 | |
| MERCEDES | VITO Kasten (W447) | 04/2020 | / | 140459 | 0100 | |
| MERCEDES | VITO Kasten (W447) | 04/2020 | / | 140460 | 0120 | |
| MERCEDES | VITO Kasten (W447) | 04/2020 | / | 140461 | 0120 | |
| MERCEDES | VITO Kasten (W447) | 04/2020 | / | 140462 | 0140 | |
| MERCEDES | VITO Kasten (W447) | 04/2020 | / | 140463 | 0140 | |
| MERCEDES | GLA (H247) | 03/2020 | / | 140670 | 0085 | |
| MERCEDES | GLC (X253) | 05/2020 | 06/2022 | 140691 | 0225 | |
| MERCEDES | GLC Coupe (C253) | 05/2020 | 03/2023 | 140694 | 0225 | |
| MERCEDES | GLE (V167) | 11/2019 | 03/2023 | 140709 | 0225 | |
| MERCEDES | GLE Coupe (C167) | 03/2020 | 03/2023 | 140712 | 0235 | |
| MERCEDES | E-KLASSE T-Model (S213) | 01/2021 | 10/2023 | 143491 | 0195 | |
| MERCEDES | E-KLASSE (W213) | 01/2021 | 10/2023 | 143498 | 0195 | |
| MERCEDES | E-KLASSE Cabriolet (A238) | 04/2021 | / | 143728 | 0195 | |
| MERCEDES | E-KLASSE Coupe (C238) | 01/2021 | / | 143729 | 0195 | |
| MERCEDES | E-KLASSE T-Model (S213) | 02/2022 | 10/2023 | 146698 | 0147 | |
| MERCEDES | E-KLASSE T-Model (S213) | 02/2022 | 10/2023 | 146699 | 0147 | |
| MERCEDES | E-KLASSE (W213) | 02/2022 | 10/2023 | 147212 | 0147 | |
| MERCEDES | E-KLASSE (W213) | 02/2022 | 10/2023 | 147213 | 0147 |
| Manufacturer | Comparison number |
|---|---|
| MERCE | 000 993 2300 |
| MERCE | 000 993 2503 |
| MERCE | 000 993 3802 |
| MERCE | 000 993 4102 |
| MERCE | 000 993 6000 |
| MERCE | 000 993 8902 |
| MERCE | 000 993 9300 |
| MERCE | 001 993 0576 |
| MERCE | 654 050 0300 |
| MERCE | 654 050 0500 |
| MERCE | 654 050 2601 |
| MERCE | 654 050 3601 |
| MERCE | 654 050 3901 28 |
| MERCE | 654 050 3901 |
| MERCE | 654 050 6300 |
| MERCE | 654 050 6901 |
| MERCE | 654 181 2200 |
| MERCE | A000 993 2300 |
| MERCE | A000 993 2503 |
| MERCE | A000 993 3802 |
| MERCE | A000 993 4102 |
| MERCE | A000 993 6000 |
| MERCE | A000 993 8902 |
| MERCE | A000 993 9300 |
| MERCE | A001 993 0576 |
| MERCE | A654 050 0300 |
| MERCE | A654 050 0500 |
| MERCE | A654 050 2601 |
| MERCE | A654 050 3601 |
| MERCE | A654 050 3901 28 |
| MERCE | A654 050 3901 |
| MERCE | A654 050 6300 |
| MERCE | A654 050 6901 |
| MERCE | A654 181 2200 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Chain, oil pump drive | 61312 | 1 | |
| Chain Tensioner, oil pump drive | 61313 | 1 | |
| Timing Chain | 61333 | 1 | |
| Guides, timing chain | 61346 | 1 | |
| Guides, timing chain | 61348 | 1 | |
| Tensioner, timing chain | 61353 | 1 | |
| Guides, timing chain | 61441 | 1 | |
| Sprocket/Gear, oil pump | 61442 | 1 |
