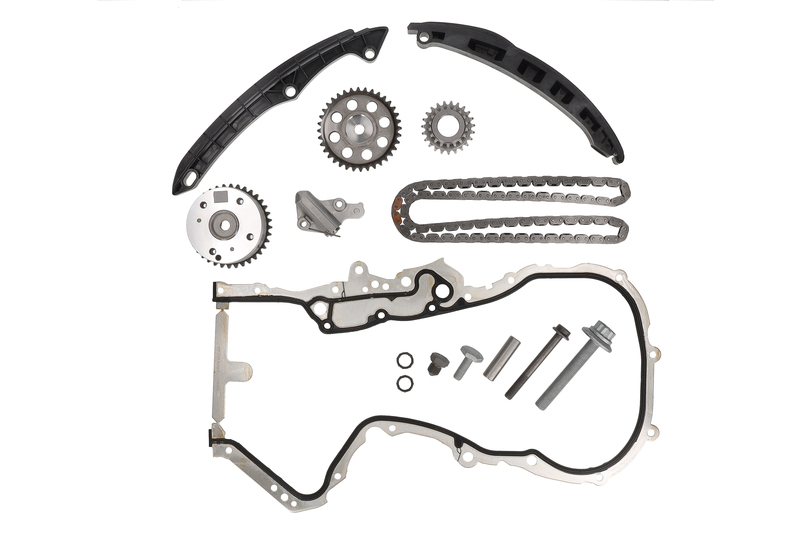

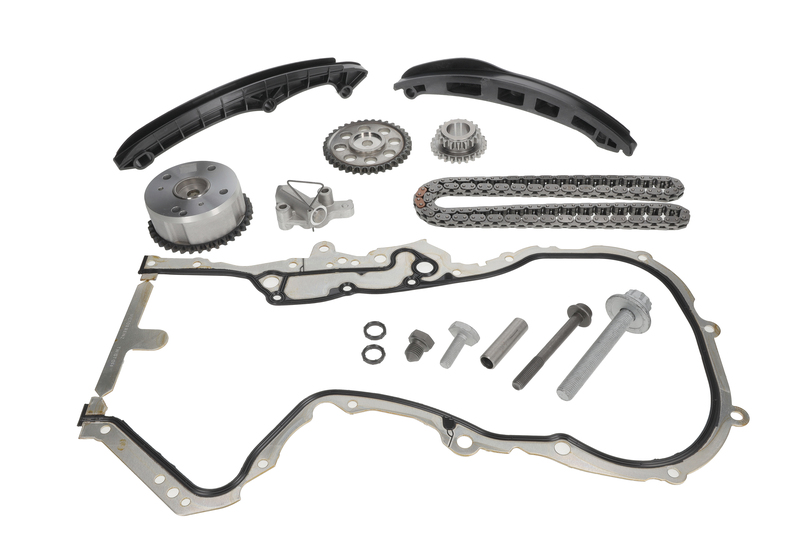

Timing Chain Kit
76557Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rail,with chain tensioner,with camshaft adjuster,with camshaft sprocket,with crankshaft gear,with crankshaft seal,with runner ring,with sleeve,Check and replace gears if necessary |
| Supplementary Article/Supplementary Info 2: | with control housing gasket,with bolts/screws |
| Number of chain links: | 130 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Silent Chain,Closed chain |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| SKODA | FABIA II Combi (545) | CAVE, CTHE | 05/2010 | 12/2014 | 33682 | 0132 |
| SKODA | FABIA II (542) | CAVE, CTHE | 05/2010 | 12/2014 | 33681 | 0132 |
| VW | PASSAT B6 (3C2) | CAXA | 05/2007 | 07/2010 | 27544 | 0090 |
| VW | PASSAT B6 (3C2) | CDGA | 01/2009 | 07/2010 | 30976 | 0110 |
| VW | PASSAT B6 Estate (3C5) | CAXA | 05/2007 | 11/2010 | 27540 | 0090 |
| VW | PASSAT B6 Estate (3C5) | CDGA | 01/2009 | 11/2010 | 30977 | 0110 |
| VW | PASSAT CC B6 (357) | CKMA | 01/2011 | 01/2012 | 11258 | 0118 |
| VW | PASSAT B7 (362) | CDGA | 08/2010 | 12/2014 | 315 | 0110 |
| VW | PASSAT B7 (362) | CTHD | 11/2012 | 12/2014 | 57298 | 0118 |
| VW | PASSAT B7 (362) | CKMA | 11/2010 | 12/2014 | 10577 | 0118 |
| VW | PASSAT B7 Estate (365) | CDGA | 08/2010 | 12/2014 | 361 | 0110 |
| VW | PASSAT B7 Estate (365) | CTHD | 11/2012 | 12/2014 | 57348 | 0118 |
| VW | PASSAT B7 Estate (365) | CKMA | 11/2010 | 12/2014 | 10586 | 0118 |
| VW | POLO V (6R1, 6C1) | CAVE, CTHE | 05/2010 | 05/2014 | 33491 | 0132 |
| VW | SCIROCCO III (137, 138) | CAVD, CNWA , CTHD , CTKA | 05/2008 | 11/2017 | 28231 | 0118 |
| VW | TIGUAN (5N_) | BWK, CAVA , CTHA | 09/2007 | 07/2018 | 23182 | 0110 |
| VW | TOURAN (1T3) | CAVC, CTHC | 05/2010 | 05/2015 | 55510 | 0103 |
| VW | TOURAN (1T3) | CDGA | 05/2010 | 05/2015 | 55513 | 0110 |
| VW | TOURAN (1T3) | CAVB, CTHB | 05/2010 | 05/2015 | 55585 | 0125 |
| VW | TOURAN (1T1, 1T2) | BMY, CAVC | 02/2006 | 05/2010 | 19651 | 0103 |
| VW | TOURAN (1T1, 1T2) | CDGA | 05/2009 | 05/2010 | 30978 | 0110 |
| VW | TOURAN (1T1, 1T2) | BLG, CAVB | 11/2006 | 05/2010 | 27994 | 0125 |
| VW | EOS (1F7, 1F8) | CAVD, CTHD | 05/2008 | 08/2015 | 31100 | 0118 |
| VW | TOURAN Kasten/Großraumlimousine (1T3) | 05/2010 | 05/2015 | 142643 | 0125 | |
| VW | TOURAN Kasten/Großraumlimousine (1T3) | 05/2010 | 05/2015 | 142645 | 0103 | |
| VW | GOLF V (1K1) | CAXA | 05/2007 | 11/2008 | 23162 | 0090 |
| VW | GOLF V (1K1) | BMY | 05/2006 | 11/2008 | 19469 | 0103 |
| VW | GOLF V (1K1) | BLG | 11/2005 | 11/2008 | 18920 | 0125 |
| VW | GOLF V Estate (1K5) | CAXA | 06/2007 | 07/2009 | 23163 | 0090 |
| VW | GOLF V Estate (1K5) | BMY | 06/2007 | 07/2009 | 22554 | 0103 |
| VW | GOLF V Estate (1K5) | BLG | 06/2007 | 07/2009 | 23195 | 0125 |
| VW | GOLF PLUS V (5M1, 521) | CAXA | 06/2007 | 12/2013 | 23164 | 0090 |
| VW | JETTA III (1K2) | CAXA | 05/2007 | 10/2010 | 23295 | 0090 |
| VW | JETTA III (1K2) | BMY | 07/2006 | 10/2010 | 19706 | 0103 |
| VW | JETTA III (1K2) | BLG | 07/2006 | 10/2010 | 19707 | 0125 |
| AUDI | A1 Sportback (8XA, 8XF) | CAVG, CTJA , CTHG | 11/2011 | 04/2015 | 11785 | 0136 |
| AUDI | A1 (8X1, 8XK) | CAVG, CTHG , CTJA | 01/2011 | 04/2015 | 9304 | 0136 |
| SEAT | IBIZA Mk IV (6J5, 6P1) | CAVF, CTJB , CNUB , CTHF | 06/2009 | 05/2015 | 31599 | 0110 |
| SEAT | IBIZA Mk IV SC (6J1, 6P5) | CAVF, CNUB , CTJB , CTHF | 01/2009 | 05/2015 | 31602 | 0110 |
| SEAT | IBIZA Mk IV SC (6J1, 6P5) | CAVE, CTHE , CTJC | 06/2009 | 05/2015 | 31603 | 0132 |
| SEAT | IBIZA Mk IV ST (6J8, 6P8) | CAVF, CTJB , CNUB , CTHF | 02/2012 | 05/2015 | 29319 | 0110 |
| Manufacturer | Comparison number |
|---|---|
| SEAT | 03C 103 825A |
| SKODA | 03C 103 825A |
| VW | 03C 103 825A |
| VAG | 03C 103 825A |
| AUDI | 03C 103 825A |
| SEAT | 03C 105 209AG |
| SKODA | 03C 105 209AG |
| VW | 03C 105 209AG |
| VAG | 03C 105 209AG |
| AUDI | 03C 105 209AG |
| SEAT | 03C 109 088E |
| SKODA | 03C 109 088E |
| VW | 03C 109 088E |
| VAG | 03C 109 088E |
| AUDI | 03C 109 088E |
| SEAT | 03C 109 158A |
| SKODA | 03C 109 158A |
| VW | 03C 109 158A |
| VAG | 03C 109 158A |
| AUDI | 03C 109 158A |
| SEAT | 03C 109 287G |
| SKODA | 03C 109 287G |
| VW | 03C 109 287G |
| VAG | 03C 109 287G |
| AUDI | 03C 109 287G |
| SEAT | 03C 109 293 |
| SKODA | 03C 109 293 |
| VW | 03C 109 293 |
| VAG | 03C 109 293 |
| AUDI | 03C 109 293 |
| SEAT | 03C 109 469K |
| SKODA | 03C 109 469K |
| VW | 03C 109 469K |
| VAG | 03C 109 469K |
| AUDI | 03C 109 469K |
| SEAT | 03C 109 507AH |
| SKODA | 03C 109 507AH |
| VW | 03C 109 507AH |
| VAG | 03C 109 507AH |
| AUDI | 03C 109 507AH |
| SEAT | 03C 109 509P |
| SKODA | 03C 109 509P |
| VW | 03C 109 509P |
| VAG | 03C 109 509P |
| AUDI | 03C 109 509P |
| SEAT | 03C 109 571F |
| SKODA | 03C 109 571F |
| VW | 03C 109 571F |
| VAG | 03C 109 571F |
| AUDI | 03C 109 571F |
| SEAT | N 902 562 02 |
| SKODA | N 902 562 02 |
| VW | N 902 562 02 |
| VAG | N 902 562 02 |
| AUDI | N 902 562 02 |
| SEAT | N 902 889 01 |
| SKODA | N 902 889 01 |
| VW | N 902 889 01 |
| VAG | N 902 889 01 |
| AUDI | N 902 889 01 |
| SEAT | N 910 486 01 |
| SKODA | N 910 486 01 |
| VW | N 910 486 01 |
| VAG | N 910 486 01 |
| AUDI | N 910 486 01 |
| SEAT | N 911 970 01 |
| SKODA | N 911 970 01 |
| VW | N 911 970 01 |
| VAG | N 911 970 01 |
| AUDI | N 911 970 01 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59182 | 1 | |
| Guides, timing chain | 59251 | 1 | |
| Guides, timing chain | 59253 | 1 | |
| Tensioner, timing chain | 59285 | 1 | |
| Camshaft Adjuster | 59780 | 03C 109 088E | 1 |
| Gear, camshaft | 59774 | 1 | |
| Gear, crankshaft | 60390 | 1 | |
| Screw, camshaft gear | 59340 | 1 | |
| Bolt, crankshaft gear | 59783 | 1 | |
| Screw Plug, oil sump | 61448 | 1 | |
| Screw | 59791 | 1 | |
| Sleeve | 59792 | 1 | |
| Gasket, timing case | 59323 | 1 | |
| Seal Ring | 59328 | 2 |
