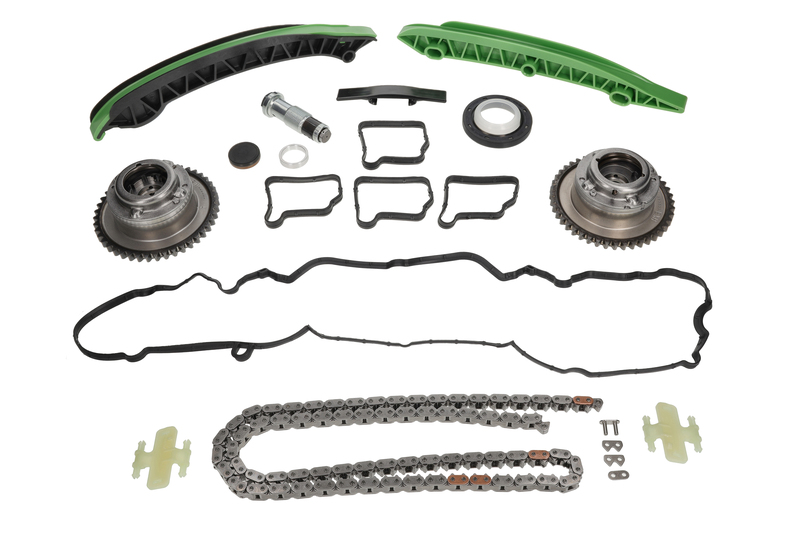

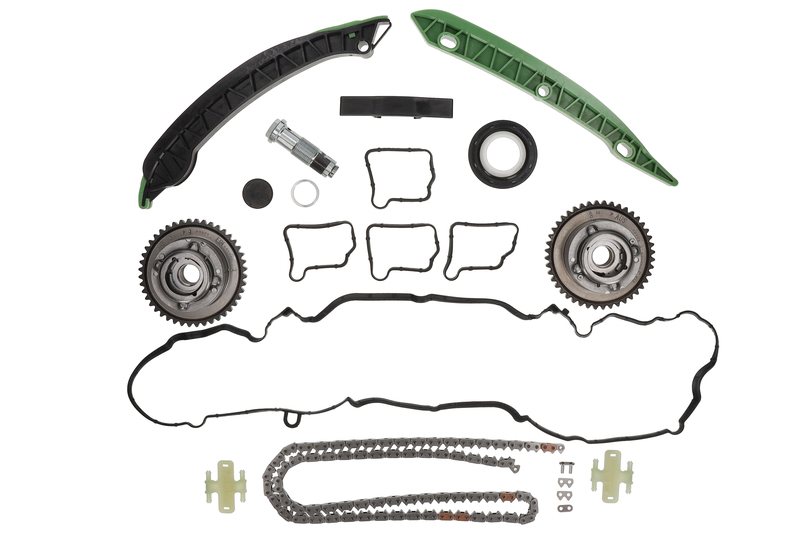

Timing Chain Kit
77216Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft adjuster,with cylinder head cover gasket,with cover for camshaft,with crankshaft seal,Check and replace gears if necessary |
| Number of chain links: | 142 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Silent Chain,Open chain,with chain lock |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| MAYBACH | / | / | 32799 | |||
| MAYBACH | / | / | 32798 | |||
| MAYBACH | / | / | 57283 | |||
| MAYBACH | / | / | 10036 | |||
| MAYBACH | / | / | 32162 | |||
| MAYBACH | / | / | 32956 | |||
| MAYBACH | / | / | 32949 | |||
| MERCEDES | C-KLASSE (W204) | 05/2011 | 01/2014 | 14024 | 0137 |
| Manufacturer | Comparison number |
|---|---|
| MERCE | 000 993 1078 |
| MERCE | 000 997 6220 |
| MERCE | 023 997 8447 |
| MERCE | 271 016 1221 |
| MERCE | 271 016 1321 |
| MERCE | 271 050 0116 |
| MERCE | 271 050 0911 |
| MERCE | 271 050 1400 |
| MERCE | 271 050 1500 |
| MERCE | 271 052 1416 |
| MERCE | 271 052 1516 |
| MERCE | 271 052 1616 |
| MERCE | A000 993 1078 |
| MERCE | A000 997 6220 |
| MERCE | A023 997 8447 |
| MERCE | A271 016 1221 |
| MERCE | A271 016 1321 |
| MERCE | A271 050 0116 |
| MERCE | A271 050 0911 |
| MERCE | A271 050 1400 |
| MERCE | A271 050 1500 |
| MERCE | A271 052 1416 |
| MERCE | A271 052 1516 |
| MERCE | A271 052 1616 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59173 | 1 | |
| Locking Cover, camshaft | 59330 | 1 | |
| Tensioner, timing chain | 59279 | 1 | |
| Guides, timing chain | 59235 | 1 | |
| Guides, timing chain | 59239 | 1 | |
| Guides, timing chain | 59240 | 1 | |
| Camshaft Adjuster | 76885 | 271 050 1500 | 1 |
| Camshaft Adjuster | 76886 | 271 050 1400 | 1 |
| Seal, spark plug stem | 61459 | 4 | |
| Gasket Set, cylinder head cover | 60188 | 1 | |
| Shaft Seal, crankshaft | 60294 | 1 | |
| Guides, timing chain | 60327 | 2 |
