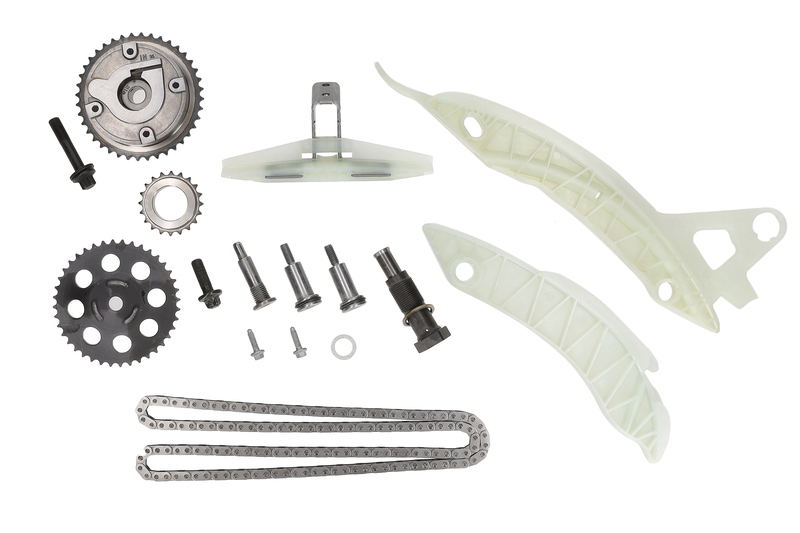

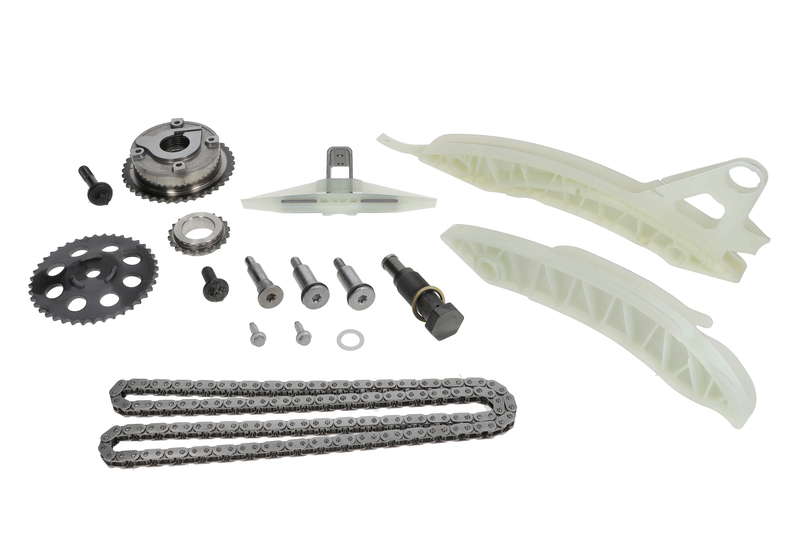

Timing Chain Kit

Timing Chain Kit

Timing Chain KitTiming Chain KitTiming Chain Kit
77347Set
Quality iwis original OEM quality, Made in Germany
Supplementary Article/Supplementary Info: with slide rails,with chain tensioner,with camshaft adjuster,with camshaft sprocket,with crankshaft gear,Check and replace gears if necessary
Supplementary Article/Supplementary Info 2: with bolts/screws
Number of chain links: 144
Guarantee: 5 years guarantee or up to 100,000 km
Chain Type: Simplex,Closed chain
Unit 1
Vehicle list
Manufacturer Model Motorcode Built from to K-type KW
CITROEN DS5 06/2012 07/2015 108053 0121
CITROEN C4 SPACETOURER (3D_) 04/2018 / 131191 0121
CITROEN GRAND C4 SPACETOURER (3A_, 3E_) 04/2018 / 131199 0121
CITROEN C4 I (LC_) 5FT (EP6DT) 07/2008 07/2011 28591 0103
CITROEN C4 I (LC_) 5FX (EP6DT) 07/2008 07/2011 28590 0110
CITROEN C4 II (NC_) 5FV (EP6CDT) 11/2009 12/2016 467 0115
CITROEN C4 PICASSO I Großraumlimousine (UD_) 5FX (EP6DT) 07/2008 08/2013 32969 0110
CITROEN C4 PICASSO I Großraumlimousine (UD_) 5FV (EP6CDT) 09/2010 08/2013 6440 0115
CITROEN C4 PICASSO II 5FV (EP6CDT) 02/2013 / 59021 0115
CITROEN C4 PICASSO II 5GZ (EP6FDT) 07/2014 / 108156 0121
CITROEN C4 GRAND PICASSO I (UA_) 5FX (EP6DT) 10/2008 08/2013 31193 0110
CITROEN C4 GRAND PICASSO II (DA_, DE_) 5FV (EP6CDT) 09/2013 / 53217 0115
CITROEN C4 GRAND PICASSO I (UA_) 5FV (EP6CDT) 09/2010 08/2013 6634 0115
CITROEN C4 GRAND PICASSO II (DA_, DE_) 5GZ (EP6FDT) 07/2014 / 108158 0121
CITROEN C5 III (RD_) 5FV (EP6CDT) 04/2009 07/2016 32793 0115
CITROEN C5 III Break (RW_) 5FV (EP6CDT) 04/2009 07/2016 32795 0115
CITROEN DS3 Cabriolet 5FV (EP6CDT) 01/2013 07/2015 58585 0115
CITROEN DS3 Cabriolet 5GZ (EP6FDT) 10/2014 07/2015 109321 0121
CITROEN DS3 (SA_) 5FX (EP6DT), 5FN (EP6CDT) 01/2010 07/2015 12290 0110
CITROEN DS3 (SA_) 5GZ (EP6FDT) 10/2014 06/2015 109261 0121
CITROEN DS4 (NX_) 5FV (EP6CDT) 04/2011 07/2015 6349 0115
CITROEN DS4 (NX_) 5FM (EP6DT) 04/2012 07/2015 55402 0120
CITROEN DS4 (NX_) 5FM (EP6DT), 5GZ (EP6FDT) 01/2012 07/2015 49684 0121
CITROEN DS4 (NX_) 5FU (EP6DTX) 04/2011 07/2015 6360 0147
CITROEN DS5 5FV (EP6CDT) 11/2011 07/2015 10877 0115
CITROEN DS5 5FM (EP6DT), 5GZ (EP6FDT) 01/2012 07/2015 51869 0121
DS DS 3 (SA_) 07/2015 07/2019 118005 0121
DS DS 3 Cabriolet (SB_) 07/2015 07/2019 118009 0121
DS DS 4 / DS 4 CROSSBACK (NX_) 07/2015 12/2018 118013 0121
DS DS 5 (KF_) 07/2015 12/2018 118607 0121
DS DS 3 (SA_) 07/2015 07/2019 130496 0120
PEUGEOT 5008 (0U_, 0E_) EP6CDT 09/2009 03/2017 31734 0115
PEUGEOT 5008 (0U_, 0E_) 5GZ (EP6FDT) 02/2012 03/2017 117933 0121
PEUGEOT 207/207+ (WA_, WC_) 08/2008 12/2013 13007 0079
PEUGEOT 5008 (0U_, 0E_) 02/2012 03/2017 108056 0120
PEUGEOT 508 SW I (8E_) 02/2012 12/2018 109335 0121
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 06/2014 06/2021 110760 0120
PEUGEOT 207/207+ (WA_, WC_) NFU (TU5JP4) 02/2006 10/2013 19350 0080
PEUGEOT 208 I (CA_, CC_) EP6CDT, 5FV (EP6DT) 03/2012 12/2019 8683 0115
PEUGEOT 208 I (CA_, CC_) 03/2015 12/2019 112328 0121
PEUGEOT 308 I (4A_, 4C_) 5FT (EP6DT) 09/2007 10/2014 30846 0103
PEUGEOT 308 I (4A_, 4C_) 5FX (EP6DT) 09/2007 10/2014 23381 0110
PEUGEOT 308 I (4A_, 4C_) EP6CDT 10/2009 10/2014 33269 0115
PEUGEOT 308 SW I (4E_, 4H_) 5FT (EP6DT) 09/2007 10/2014 31166 0103
PEUGEOT 308 SW I (4E_, 4H_) 5FX (EP6DT) 09/2007 10/2014 26612 0110
PEUGEOT 308 SW I (4E_, 4H_) EP6CDT 10/2009 10/2014 33272 0115
PEUGEOT 308 CC (4B_) EP6CDT 06/2009 12/2014 32806 0115
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 5FV (EP6DT) 09/2013 06/2021 59724 0115
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 5FV (EP6DT) 03/2014 06/2021 100645 0115
PEUGEOT 508 I (8D_) EP6CDT 11/2010 12/2018 711 0115
PEUGEOT 508 I (8D_) 5GZ (EP6FDT) 01/2012 12/2018 55284 0120
PEUGEOT 508 I (8D_) 09/2011 12/2018 56438 0121
PEUGEOT 3008 I Großraumlimousine (0U_) 5FV (EP6DT) 06/2009 08/2016 31524 0115
PEUGEOT 3008 I Großraumlimousine (0U_) 5GZ (EP6FDT) 05/2014 08/2016 106340 0121
Reference list
Manufacturer Comparison number
CITRO 0250.57
DS 0250.57
PEUGE 0250.57
CITRO 0513.C8
DS 0513.C8
PEUGE 0513.C8
CITRO 0805.H5
DS 0805.H5
PEUGE 0805.H5
CITRO 0805.H6
DS 0805.H6
PEUGE 0805.H6
CITRO 0805.K1
DS 0805.K1
PEUGE 0805.K1
CITRO 0805.K3
DS 0805.K3
PEUGE 0805.K3
CITRO 0806.78
DS 0806.78
PEUGE 0806.78
CITRO 0816.H9
DS 0816.H9
PEUGE 0816.H9
CITRO 0818.30
DS 0818.30
PEUGE 0818.30
CITRO 0818.31
DS 0818.31
PEUGE 0818.31
CITRO 0818.35
DS 0818.35
PEUGE 0818.35
CITRO 0818.41
DS 0818.41
PEUGE 0818.41
CITRO 0820.26
DS 0820.26
PEUGE 0820.26
CITRO 0820.27
DS 0820.27
PEUGE 0820.27
CITRO 0820.28
CITRO 0829.E1
DS 0829.E1
PEUGE 0829.E1
CITRO 0829.G3
DS 0829.G3
PEUGE 0829.G3
CITRO 16 828 025 80
DS 16 828 025 80
PEUGE 16 828 025 80
CITRO 98 160 585 80
DS 98 160 585 80
PEUGE 98 160 585 80
CITRO 98 228 271 80
DS 98 228 271 80
PEUGE 98 228 271 80
CITRO 98 248 158 80
DS 98 248 158 80
PEUGE 98 248 158 80
CITRO 98 248 314 80
DS 98 248 314 80
PEUGE 98 248 314 80
CITRO 98 337 025 80
DS 98 337 025 80
PEUGE 98 337 025 80
CITRO V8 618 317 80
DS V8 618 317 80
PEUGE V8 618 317 80
Parts list
Description Article number OE comparison number Amount
Timing Chain 59166 1
Guides, timing chain 59216 1
Guides, timing chain 59219 1
Guides, timing chain 59221 1
Tensioner, timing chain 59270 1
Camshaft Adjuster 60456 1136 7 545 862 1
Gear, camshaft 59574 1
Gear, crankshaft 59305 1
Sliding Rail Bolts, timing chain 60248 2
Sliding Rail Bolts, timing chain 60249 1
Screw, camshaft gear 60197 1
Screw 60203 2
Seal Ring 60251 1
