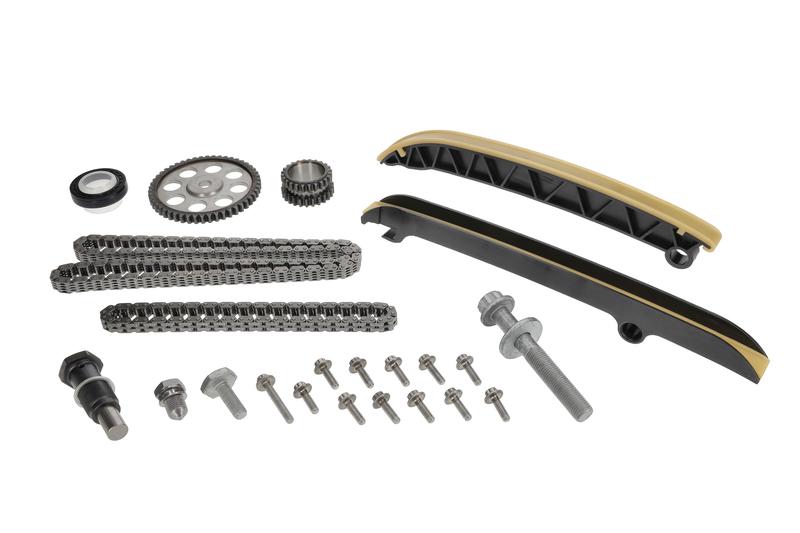

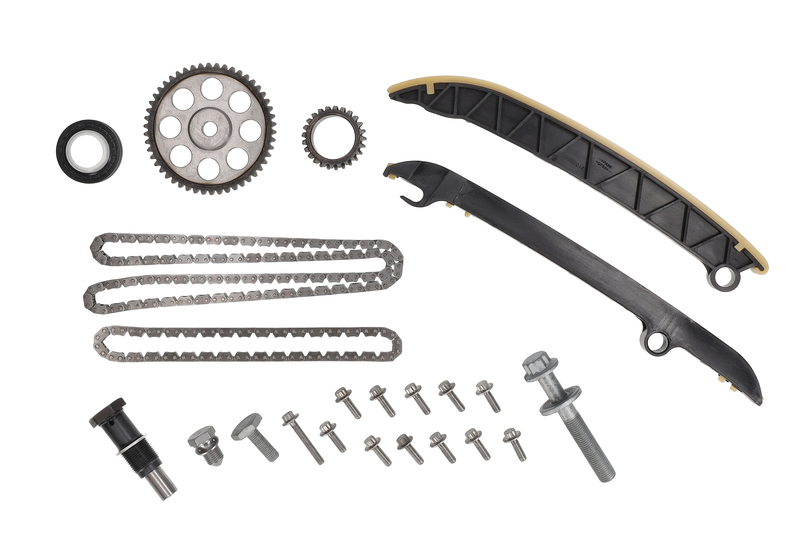

Timing Chain Kit
77356Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft sprocket,with crankshaft gear,with crankshaft seal,Check and replace gears if necessary |
| Supplementary Article/Supplementary Info 2: | with bolts/screws |
| Number of chain links: | 150,70 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Silent Chain,Closed chain |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| SKODA | FABIA II Combi (545) | CBZA | 03/2010 | 12/2014 | 33312 | 0063 |
| SKODA | FABIA II Combi (545) | CBZB | 03/2010 | 12/2014 | 33244 | 0077 |
| SKODA | OCTAVIA II (1Z3) | CBZB | 02/2010 | 06/2013 | 33245 | 0077 |
| SKODA | OCTAVIA II Combi (1Z5) | CBZB | 02/2010 | 04/2013 | 33246 | 0077 |
| SKODA | RAPID (NH3, NK3, NK6) | CBZA | 07/2012 | 05/2015 | 56162 | 0063 |
| SKODA | RAPID (NH3, NK3, NK6) | CBZB | 07/2012 | 05/2015 | 56165 | 0077 |
| SKODA | RAPID Spaceback (NH1) | CBZA | 07/2012 | 05/2015 | 39229 | 0063 |
| SKODA | RAPID Spaceback (NH1) | CBZB | 07/2012 | 05/2015 | 39231 | 0077 |
| SKODA | ROOMSTER (5J7) | CBZA | 03/2010 | 05/2015 | 33313 | 0063 |
| SKODA | ROOMSTER (5J7) | CBZB | 03/2010 | 05/2015 | 33247 | 0077 |
| SKODA | ROOMSTER Praktik (5J) | CBZA | 03/2010 | 05/2015 | 9958 | 0063 |
| SKODA | YETI (5L) | CBZB | 09/2009 | 05/2015 | 32750 | 0077 |
| SKODA | FABIA II (542) | CBZA | 03/2010 | 12/2014 | 33311 | 0063 |
| SKODA | FABIA II (542) | CBZB | 03/2010 | 12/2014 | 33243 | 0077 |
| VW | CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) | CBZA | 09/2010 | 05/2015 | 34947 | 0063 |
| VW | CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) | CBZB | 09/2010 | 05/2015 | 34948 | 0077 |
| VW | POLO V (6R1, 6C1) | CBZC | 05/2011 | 05/2014 | 11896 | 0066 |
| VW | POLO V (6R1, 6C1) | CBZB | 11/2009 | 05/2022 | 32813 | 0077 |
| VW | CADDY III Kasten/Großraumlimousine (2KA, 2KH, 2CA, 2CH) | CBZA | 09/2010 | 05/2015 | 34953 | 0063 |
| VW | CADDY III Kasten/Großraumlimousine (2KA, 2KH, 2CA, 2CH) | CBZB | 09/2010 | 05/2015 | 34954 | 0077 |
| VW | TOURAN (1T3) | CBZB | 05/2010 | 05/2015 | 2477 | 0077 |
| VW | BJALLA (5C1, 5C2) | CBZB | 07/2011 | 07/2019 | 11293 | 0077 |
| VW | BEETLE Cabriolet (5C7, 5C8) | CBZB, CYVD | 12/2011 | 07/2019 | 56783 | 0077 |
| VW | GOLF VI Van (5K1) | 05/2010 | 11/2012 | 133507 | 0063 | |
| VW | GOLF VI Van (5K1) | 05/2009 | 11/2012 | 133509 | 0077 | |
| VW | POLO V Kasten/Schrägheck (6R1, 6C1) | 11/2009 | 05/2014 | 133522 | 0077 | |
| VW | GOLF VAN VI Variant (AJ5) | 09/2009 | 05/2014 | 133528 | 0077 | |
| VW | GOLF PLUS Van (521) | 11/2009 | 08/2014 | 133533 | 0077 | |
| VW | GOLF VI Estate (AJ5) | CBZA | 07/2010 | 07/2013 | 34793 | 0063 |
| VW | GOLF VI Estate (AJ5) | CBZB | 07/2009 | 07/2013 | 32621 | 0077 |
| VW | GOLF VI Cabriolet (517) | CBZB | 03/2011 | 05/2016 | 8207 | 0077 |
| VW | GOLF PLUS V (5M1, 521) | CBZA | 05/2010 | 12/2013 | 7752 | 0063 |
| VW | GOLF PLUS V (5M1, 521) | CBZB | 11/2009 | 12/2013 | 32630 | 0077 |
| VW | JETTA IV (162, 163, AV3, AV2) | CBZB | 10/2010 | 12/2017 | 5941 | 0077 |
| AUDI | A3 Sportback (8PA) | CBZB | 04/2010 | 03/2013 | 33252 | 0077 |
| AUDI | A1 Sportback (8XA, 8XF) | CBZA | 01/2012 | 04/2015 | 11782 | 0063 |
| AUDI | A1 (8X1, 8XK) | CBZA | 05/2010 | 04/2015 | 33303 | 0063 |
| AUDI | A3 (8P1) | CBZB | 04/2010 | 08/2012 | 33251 | 0077 |
| SEAT | ALTEA XL (5P5, 5P8) | CBZB | 04/2010 | 07/2015 | 33249 | 0077 |
| SEAT | IBIZA Mk IV (6J5, 6P1) | CBZA | 08/2012 | 05/2015 | 57425 | 0063 |
| SEAT | IBIZA Mk IV (6J5, 6P1) | CBZB | 09/2010 | 03/2012 | 33689 | 0077 |
| SEAT | IBIZA Mk IV SC (6J1, 6P5) | CBZA | 08/2012 | 05/2015 | 100024 | 0063 |
| SEAT | IBIZA Mk IV SC (6J1, 6P5) | CBZB | 09/2010 | 05/2015 | 33690 | 0077 |
| SEAT | IBIZA Mk IV ST (6J8, 6P8) | CBZA | 09/2012 | 05/2015 | 57427 | 0063 |
| SEAT | IBIZA Mk IV ST (6J8, 6P8) | CBZB | 09/2010 | 05/2015 | 33325 | 0077 |
| SEAT | LEON (1P1) | CBZB | 02/2010 | 12/2012 | 33250 | 0077 |
| SEAT | TOLEDO IV (KG3) | CBZA | 07/2012 | 06/2015 | 57523 | 0063 |
| SEAT | TOLEDO IV (KG3) | CBZB | 07/2012 | 06/2015 | 57524 | 0077 |
| SEAT | ALTEA (5P1) | CBZB | 04/2010 | 07/2015 | 33248 | 0077 |
| Manufacturer | Comparison number |
|---|---|
| SEAT | 038 103 058A |
| SKODA | 038 103 058A |
| VW | 038 103 058A |
| VAG | 038 103 058A |
| AUDI | 038 103 058A |
| SEAT | 038 103 085C |
| SKODA | 038 103 085C |
| VW | 038 103 085C |
| VAG | 038 103 085C |
| AUDI | 038 103 085C |
| SEAT | 038 103 085D |
| SKODA | 038 103 085D |
| VW | 038 103 085D |
| VAG | 038 103 085D |
| AUDI | 038 103 085D |
| SEAT | 03D 105 171B |
| SKODA | 03D 105 171B |
| VW | 03D 105 171B |
| VAG | 03D 105 171B |
| AUDI | 03D 105 171B |
| SEAT | 03F 105 209G |
| SKODA | 03F 105 209G |
| VW | 03F 105 209G |
| VAG | 03F 105 209G |
| AUDI | 03F 105 209G |
| SEAT | 03F 109 158G |
| SKODA | 03F 109 158G |
| VW | 03F 109 158G |
| VAG | 03F 109 158G |
| AUDI | 03F 109 158G |
| SEAT | 03F 109 158J |
| SKODA | 03F 109 158J |
| VW | 03F 109 158J |
| VAG | 03F 109 158J |
| AUDI | 03F 109 158J |
| SEAT | 03F 109 469E |
| SKODA | 03F 109 469E |
| VW | 03F 109 469E |
| VAG | 03F 109 469E |
| AUDI | 03F 109 469E |
| SEAT | 03F 109 507D |
| SKODA | 03F 109 507D |
| VW | 03F 109 507D |
| VAG | 03F 109 507D |
| AUDI | 03F 109 507D |
| SEAT | 03F 109 507F |
| SKODA | 03F 109 507F |
| VW | 03F 109 507F |
| VAG | 03F 109 507F |
| AUDI | 03F 109 507F |
| SEAT | 03F 109 509F |
| SKODA | 03F 109 509F |
| VW | 03F 109 509F |
| VAG | 03F 109 509F |
| AUDI | 03F 109 509F |
| SEAT | 03F 109 571F |
| SKODA | 03F 109 571F |
| VW | 03F 109 571F |
| VAG | 03F 109 571F |
| AUDI | 03F 109 571F |
| SEAT | 03F 115 225 |
| SKODA | 03F 115 225 |
| VW | 03F 115 225 |
| VAG | 03F 115 225 |
| AUDI | 03F 115 225 |
| SEAT | 03F 198 229B |
| SKODA | 03F 198 229B |
| VW | 03F 198 229B |
| VAG | 03F 198 229B |
| AUDI | 03F 198 229B |
| SEAT | N 104 416 01 |
| SKODA | N 104 416 01 |
| VW | N 104 416 01 |
| VAG | N 104 416 01 |
| AUDI | N 104 416 01 |
| SEAT | N 104 416 02 |
| SKODA | N 104 416 02 |
| VW | N 104 416 02 |
| VAG | N 104 416 02 |
| AUDI | N 104 416 02 |
| SEAT | N 107 344 01 |
| SKODA | N 107 344 01 |
| VW | N 107 344 01 |
| VAG | N 107 344 01 |
| AUDI | N 107 344 01 |
| SEAT | N 107 345 01 |
| SKODA | N 107 345 01 |
| VW | N 107 345 01 |
| VAG | N 107 345 01 |
| AUDI | N 107 345 01 |
| SEAT | N 902 562 01 |
| SKODA | N 902 562 01 |
| VW | N 902 562 01 |
| VAG | N 902 562 01 |
| AUDI | N 902 562 01 |
| SEAT | N 902 562 02 |
| SKODA | N 902 562 02 |
| VW | N 902 562 02 |
| VAG | N 902 562 02 |
| AUDI | N 902 562 02 |
| SEAT | N 907 575 01 |
| SKODA | N 907 575 01 |
| VW | N 907 575 01 |
| VAG | N 907 575 01 |
| AUDI | N 907 575 01 |
| SEAT | N 908 132 01 |
| SKODA | N 908 132 01 |
| VW | N 908 132 01 |
| VAG | N 908 132 01 |
| AUDI | N 908 132 01 |
| SEAT | N 908 132 02 |
| SKODA | N 908 132 02 |
| VW | N 908 132 02 |
| VAG | N 908 132 02 |
| AUDI | N 908 132 02 |
| SEAT | N 909 873 01 |
| SKODA | N 909 873 01 |
| VW | N 909 873 01 |
| VAG | N 909 873 01 |
| AUDI | N 909 873 01 |
| SEAT | N 909 873 02 |
| SKODA | N 909 873 02 |
| VW | N 909 873 02 |
| VAG | N 909 873 02 |
| AUDI | N 909 873 02 |
| SKODA | N 911 014 01 |
| VW | N 911 014 01 |
| VAG | N 911 014 01 |
| AUDI | N 911 014 01 |
| SEAT | SEAT (104) SEAT |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59957 | 1 | |
| Chain, oil pump drive | 59014 | 03F 115 225 | 1 |
| Guides, timing chain | 59978 | 1 | |
| Guides, timing chain | 59979 | 1 | |
| Tensioner, timing chain | 60158 | 1 | |
| Gear, camshaft | 60177 | 1 | |
| Gear, crankshaft | 61462 | 1 | |
| Shaft Seal, crankshaft | 59327 | 1 | |
| Screw, camshaft gear | 59340 | 1 | |
| Bolt, crankshaft gear | 59338 | 1 | |
| Screw | 60207 | 1 | |
| Screw | 60208 | 12 | |
| Screw Plug, oil sump | 60209 | 1 |
