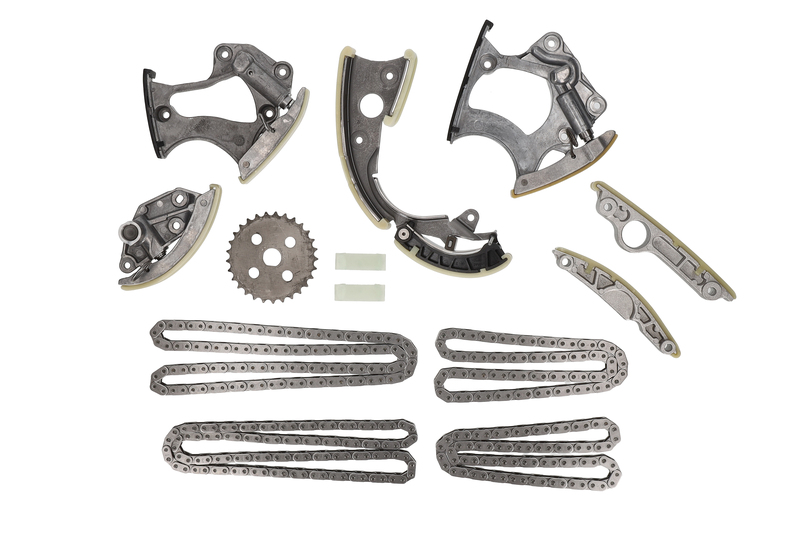

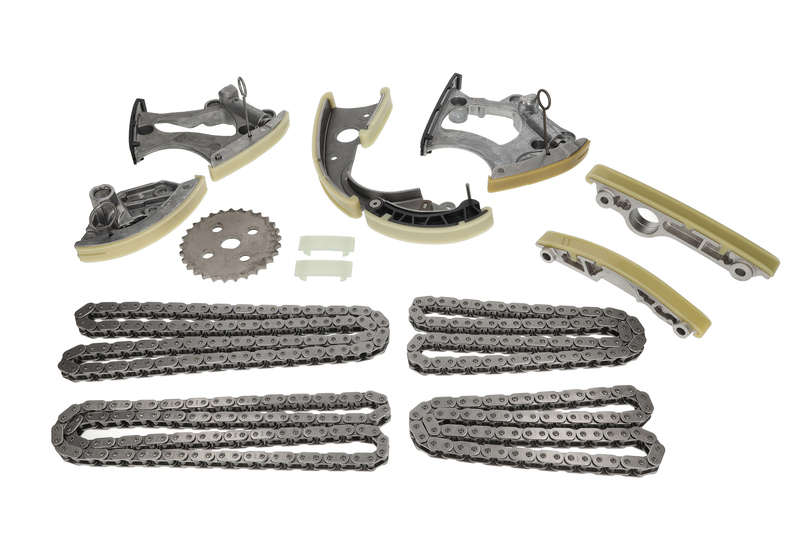

Timing Chain Kit
77532Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with oil pump gears,Check and replace gears if necessary |
| Number of chain links: | 108,104,78,74 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Number of chains: | 4 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| AUDI | A4 B8 (8K2) | CMUA, CRED | 02/2012 | 12/2015 | 16042 | 0200 |
| AUDI | A4 B8 (8K2) | CAKA, CCBA , CGWC , CGXC , CTUB , CREC | 11/2008 | 12/2015 | 30001 | 0245 |
| AUDI | A4 B8 Avant (8K5) | CMUA, CRED | 02/2012 | 12/2015 | 20116 | 0200 |
| AUDI | A4 B8 Avant (8K5) | CAKA, CCBA , CGWC , CTUB , CGXC , CREC | 11/2008 | 12/2015 | 30005 | 0245 |
| AUDI | A5 (8T3) | CMUA, CRED | 12/2011 | 01/2017 | 22836 | 0200 |
| AUDI | A5 (8T3) | CAKA, CGXC , CTUB , CGWC , CTDA , CREC | 10/2011 | 01/2017 | 11997 | 0245 |
| AUDI | A5 Sportback (8TA) | CMUA, CRED | 12/2011 | 01/2017 | 15677 | 0200 |
| AUDI | A5 Sportback (8TA) | CAKA, CGWC , CGXC , CTUB , CTDA , CREC | 01/2010 | 01/2017 | 33411 | 0245 |
| AUDI | A5 Cabriolet (8F7) | CMUA, CRED | 11/2011 | 01/2017 | 22808 | 0200 |
| AUDI | A5 Cabriolet (8F7) | CAKA, CCBA , CGWC , CTUB , CGXC , CTDA , CREC | 06/2009 | 01/2017 | 30988 | 0245 |
| Manufacturer | Comparison number |
|---|---|
| VW | 06E 109 217AB |
| VAG | 06E 109 217AB |
| AUDI | 06E 109 217AB |
| VW | 06E 109 217AD |
| VAG | 06E 109 217AD |
| AUDI | 06E 109 217AD |
| VW | 06E 109 217AH |
| VAG | 06E 109 217AH |
| AUDI | 06E 109 217AH |
| VW | 06E 109 217AM |
| VAG | 06E 109 217AM |
| AUDI | 06E 109 217AM |
| VW | 06E 109 218AC |
| VAG | 06E 109 218AC |
| AUDI | 06E 109 218AC |
| VW | 06E 109 218AJ |
| VAG | 06E 109 218AJ |
| AUDI | 06E 109 218AJ |
| VW | 06E 109 218AP |
| VAG | 06E 109 218AP |
| AUDI | 06E 109 218AP |
| VW | 06E 109 465AD |
| VAG | 06E 109 465AD |
| AUDI | 06E 109 465AD |
| VW | 06E 109 465AM |
| VAG | 06E 109 465AM |
| VW | 06E 109 465AS |
| VAG | 06E 109 465AS |
| AUDI | 06E 109 465AS |
| VW | 06E 109 465AT |
| VAG | 06E 109 465AT |
| AUDI | 06E 109 465AT |
| VW | 06E 109 465BC |
| VAG | 06E 109 465BC |
| AUDI | 06E 109 465BC |
| VW | 06E 109 465BH |
| VAG | 06E 109 465BH |
| AUDI | 06E 109 465BH |
| VW | 06E 109 465BJ |
| VAG | 06E 109 465BJ |
| AUDI | 06E 109 465BJ |
| VW | 06E 109 465BK |
| VAG | 06E 109 465BK |
| AUDI | 06E 109 465BK |
| VW | 06E 109 465 |
| VAG | 06E 109 465 |
| AUDI | 06E 109 465 |
| VW | 06E 109 507C |
| VAG | 06E 109 507C |
| AUDI | 06E 109 507C |
| VW | 06E 109 507D |
| VAG | 06E 109 507D |
| AUDI | 06E 109 507D |
| VW | 06E 109 570B |
| VAG | 06E 109 570B |
| AUDI | 06E 109 570B |
| VW | 079 109 469AL |
| VAG | 079 109 469AL |
| AUDI | 079 109 469AL |
| VW | 079 109 469AM |
| VAG | 079 109 469AM |
| AUDI | 079 109 469AM |
| VW | 079 109 470 |
| VAG | 079 109 470 |
| AUDI | 079 109 470 |
| VW | 079 109 507AP |
| VAG | 079 109 507AP |
| AUDI | 079 109 507AP |
| VW | 079 109 507T |
| VAG | 079 109 507T |
| AUDI | 079 109 507T |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 60759 | 1 | |
| Timing Chain | 61477 | 1 | |
| Timing Chain | 61478 | 1 | |
| Chain, oil pump drive | 60314 | 1 | |
| Guides, timing chain | 60826 | 1 | |
| Guides, timing chain | 60827 | 1 | |
| Guides, timing chain | 61479 | 2 | |
| Tensioner, timing chain | 61480 | 1 | |
| Tensioner, timing chain | 61481 | 1 | |
| Tensioner, timing chain | 61482 | 1 | |
| Chain Tensioner, oil pump drive | 60341 | 1 | |
| Sprocket/Gear, oil pump | 60347 | 1 |
