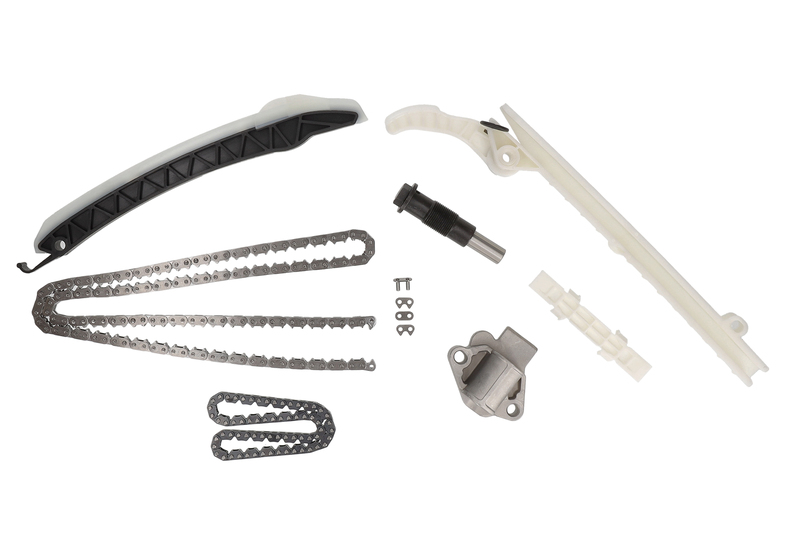

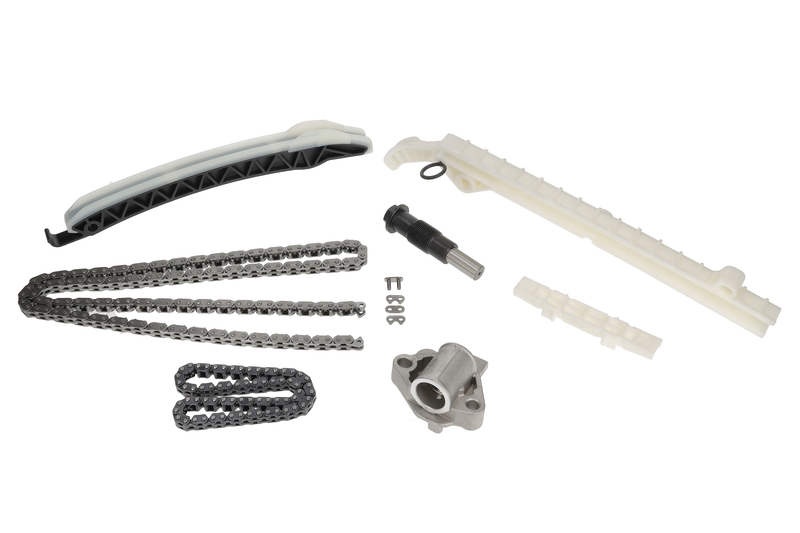

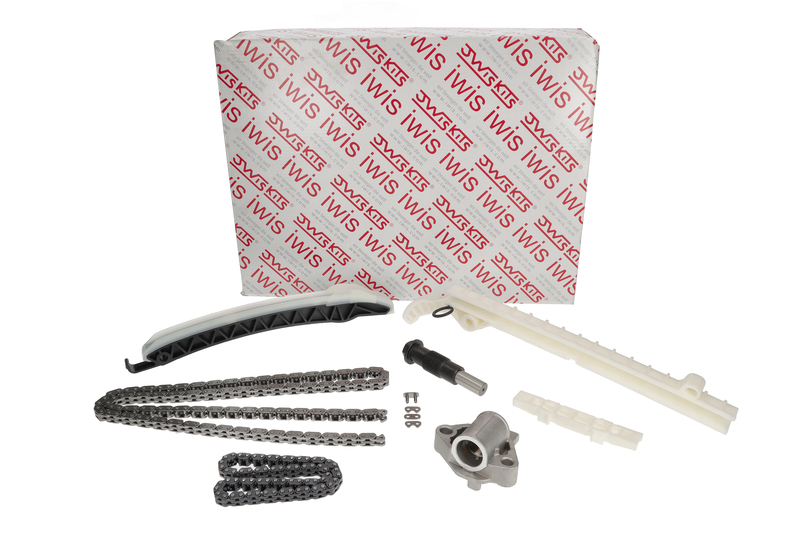

Timing Chain Kit
78258Set
| Quality | iwis or |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,Check and replace gears if necessary |
| Number of chain links: | 140,66 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Silent Chain,Open chain,with chain lock,Closed chain |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| MAYBACH | A-KLASSE (W177) | 03/2018 | / | 13059 | 0165 | |
| MAYBACH | A-KLASSE (W177) | 07/2018 | / | 13198 | 0165 | |
| MAYBACH | A-KLASSE (W177) | 07/2018 | 10/2019 | 13198 | 0140 | |
| MAYBACH | A-KLASSE (W177) | 07/2018 | / | 13212 | 0140 | |
| MAYBACH | A-KLASSE (W177) | 09/2018 | / | 13286 | 0225 | |
| MAYBACH | A-KLASSE Stufen | 09/2018 | / | 13244 | 0140 | |
| MAYBACH | A-KLASSE Stufen | 09/2018 | / | 13244 | 0165 | |
| MAYBACH | A-KLASSE Stufen | 09/2018 | / | 13244 | 0165 | |
| MAYBACH | B-KLASSE Sports | 01/2019 | / | 13532 | 0165 | |
| MAYBACH | B-KLASSE Sports | 01/2019 | / | 13532 | 0165 | |
| MAYBACH | B-KLASSE Sports | 01/2019 | / | 13532 | 0140 | |
| MAYBACH | B-KLASSE Sports | 04/2019 | / | 13608 | 0140 | |
| MAYBACH | CLA (C118) | 03/2019 | / | 13569 | 0140 | |
| MAYBACH | CLA (C118) | 03/2019 | / | 13569 | 0140 | |
| MAYBACH | CLA (C118) | 03/2019 | / | 13569 | 0165 | |
| MAYBACH | CLA (C118) | 03/2019 | / | 13569 | 0165 | |
| MAYBACH | A-KLASSE Stufen | 01/2019 | / | 13607 | 0140 | |
| MAYBACH | CLA Shooting Br | 06/2019 | / | 13652 | 0165 | |
| MAYBACH | CLA Shooting Br | 06/2019 | / | 13652 | 0165 | |
| MAYBACH | CLA Shooting Br | 06/2019 | / | 13652 | 0140 | |
| MAYBACH | CLA (C118) | 04/2019 | / | 13594 | 0225 | |
| MAYBACH | CLA Shooting Br | 06/2019 | / | 13652 | 0225 | |
| MAYBACH | A-KLASSE Stufen | 03/2019 | / | 13594 | 0225 | |
| MAYBACH | GLB (X247) | 08/2019 | / | 13760 | 0165 | |
| MERCEDES | GLB (X247) | 08/2019 | / | 13760 | 0225 | |
| MERCEDES | GLB (X247) | 12/2019 | / | 13876 | 0165 | |
| MERCEDES | GLA (H247) | 02/2020 | / | 13965 | 0165 | |
| MERCEDES | GLA (H247) | 02/2020 | / | 13965 | 0165 | |
| MERCEDES | GLA (H247) | 06/2020 | / | 14077 | 0225 | |
| MERCEDES | GLA (H247) | 08/2020 | / | 14635 | 0140 | |
| MERCEDES | GLB (X247) | 03/2023 | / | 15455 | 0225 |
| Manufacturer | Comparison number |
|---|---|
| MERCE | 000 993 0778 |
| MERCE | 000 993 2178 |
| MERCE | 000 993 3978 |
| MERCE | 000 993 4178 |
| MERCE | 000 993 5002 |
| MERCE | 264 050 0300 |
| MERCE | 270 052 0216 |
| MERCE | 270 052 0500 |
| MERCE | 270 052 1000 |
| MERCE | 270 052 1300 |
| MERCE | 274 050 1600 |
| MERCE | A000 993 0778 |
| MERCE | A000 993 2178 |
| MERCE | A000 993 3978 |
| MERCE | A000 993 4178 |
| MERCE | A000 993 5002 |
| MERCE | A264 050 0300 |
| MERCE | A270 052 0216 |
| MERCE | A270 052 0500 |
| MERCE | A270 052 1000 |
| MERCE | A270 052 1300 |
| MERCE | A274 050 1600 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 61493 | 1 | |
| Chain, oil pump drive | 61526 | 1 | |
| Guides, timing chain | 61495 | 1 | |
| Guides, timing chain | 61498 | 1 | |
| Guides, timing chain | 61527 | 1 | |
| Tensioner, timing chain | 61528 | 1 | |
| Holder, timing chain tensioner | 61500 | 1 |
