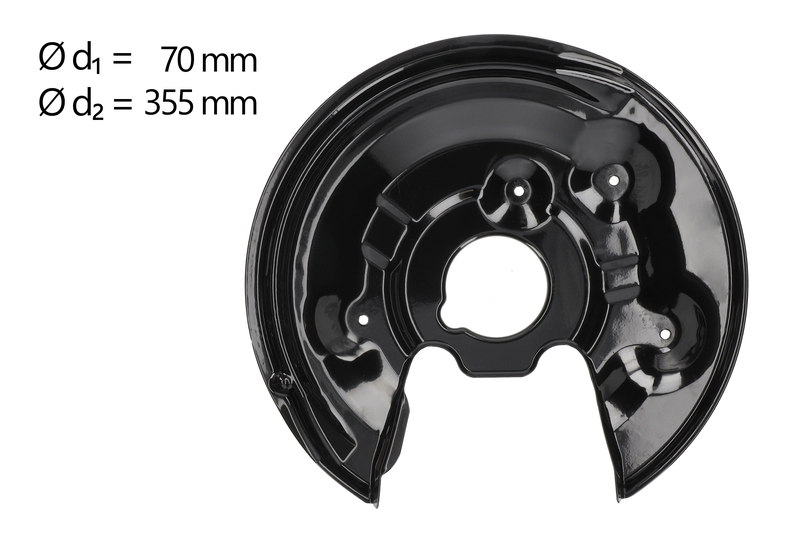

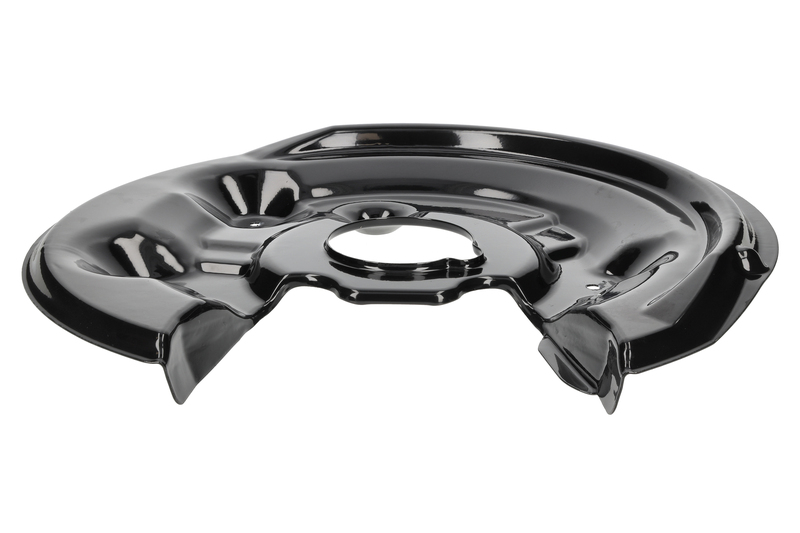

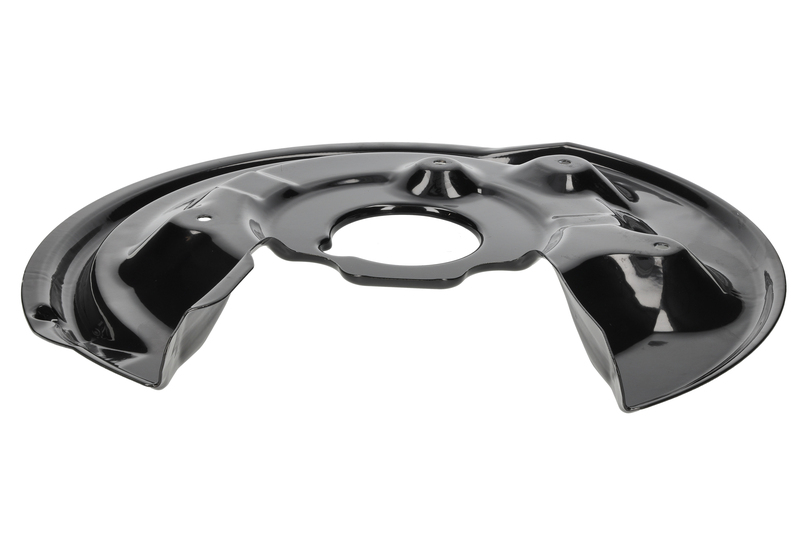

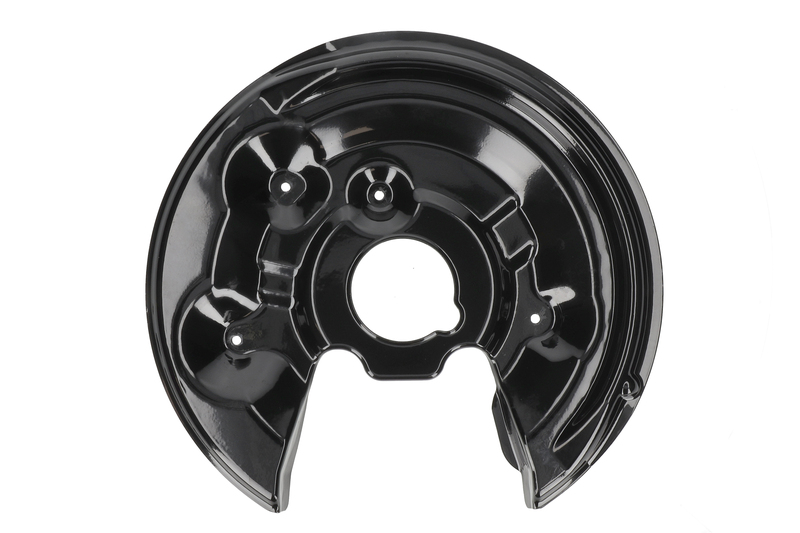

Splash Panel, brake disc
56162
| Quality | Original AIC quality |
| Fitting Position: | Rear Axle Right |
| Material: | Aluminium |
| Inner Diameter [mm]: | 70 mm |
| Outer Diameter [mm]: | 355 mm |
| Surface: | painted,Cathodic Painting |
| for brake disc diameter [mm]: | 282,286 mm |
| Guarantee: | 5 years guarantee or up to 75,000km |
| paired article number: | 56161 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| VW | PASSAT B6 (3C2) | CAXA | 05/2007 | 07/2010 | 27544 | 0090 |
| VW | PASSAT B6 (3C2) | BSF, BSE | 05/2005 | 07/2010 | 19216 | 0075 |
| VW | PASSAT B6 (3C2) | BLF | 03/2005 | 06/2008 | 18520 | 0085 |
| VW | PASSAT B6 (3C2) | BZB, CDAA | 05/2007 | 07/2010 | 27545 | 0118 |
| VW | PASSAT B6 (3C2) | BVZ, BLY , BVY , BLR | 03/2005 | 07/2010 | 18521 | 0110 |
| VW | PASSAT B6 (3C2) | AXX, BWA , BPY , CBFA , CCTA , CAWB , CCZA | 07/2005 | 07/2010 | 19395 | 0147 |
| VW | PASSAT B6 (3C2) | BLS, BKC , BXE | 03/2005 | 07/2010 | 18522 | 0077 |
| VW | PASSAT B6 (3C2) | BMA, CBAA | 03/2005 | 11/2010 | 27547 | 0100 |
| VW | PASSAT B6 (3C2) | BMP | 03/2005 | 05/2009 | 19957 | 0103 |
| VW | PASSAT B6 (3C2) | BMP | 03/2005 | 05/2009 | 19958 | 0103 |
| VW | PASSAT B6 (3C2) | BKP, CBAB | 03/2005 | 07/2010 | 18523 | 0103 |
| VW | PASSAT B6 (3C2) | BKP, CBAB | 03/2005 | 08/2010 | 19630 | 0103 |
| VW | PASSAT B6 (3C2) | BUZ | 08/2005 | 05/2009 | 24259 | 0120 |
| VW | PASSAT B6 (3C2) | BMR, CBBB | 08/2005 | 07/2010 | 18671 | 0125 |
| VW | PASSAT B6 Estate (3C5) | CAXA | 05/2007 | 11/2010 | 27540 | 0090 |
| VW | PASSAT ALLTRACK B7 Variant (365) | CCZB | 01/2012 | 12/2014 | 29304 | 0155 |
| VW | PASSAT B6 Estate (3C5) | BSF, BSE | 08/2005 | 11/2010 | 18730 | 0075 |
| VW | PASSAT B6 Estate (3C5) | BLF | 08/2005 | 06/2008 | 18726 | 0085 |
| VW | PASSAT B6 Estate (3C5) | BZB, CDAA | 05/2007 | 10/2011 | 27541 | 0118 |
| VW | PASSAT B6 Estate (3C5) | BLR, BVZ , BLY , BVY | 08/2005 | 11/2010 | 18727 | 0110 |
| VW | PASSAT B6 Estate (3C5) | BWA, AXX , BPY , CCTA , CAWB , CBFA , CCZA | 08/2005 | 11/2010 | 19396 | 0147 |
| VW | PASSAT B6 Estate (3C5) | BLS, BKC , BXE | 08/2005 | 11/2010 | 18728 | 0077 |
| VW | PASSAT B6 Estate (3C5) | BMA, CBAA | 08/2005 | 11/2010 | 18732 | 0100 |
| VW | PASSAT B6 Estate (3C5) | BMP | 08/2005 | 05/2009 | 19959 | 0103 |
| VW | PASSAT B6 Estate (3C5) | BMP | 08/2005 | 05/2009 | 19960 | 0103 |
| VW | PASSAT B6 Estate (3C5) | BKP, CBAB | 08/2005 | 11/2010 | 18729 | 0103 |
| VW | PASSAT B6 Estate (3C5) | BKP, CBAB | 08/2005 | 11/2010 | 19632 | 0103 |
| VW | PASSAT B6 Estate (3C5) | BUZ | 08/2005 | 05/2009 | 28570 | 0120 |
| VW | PASSAT B6 Estate (3C5) | BMR, CBBB | 08/2005 | 11/2010 | 19200 | 0125 |
| VW | CC B7 (358) | CZDA | 05/2015 | 12/2016 | 115197 | 0110 |
| VW | PASSAT CC B6 (357) | CKMA | 01/2011 | 01/2012 | 11258 | 0118 |
| VW | CC B7 (358) | CTHD | 11/2011 | 12/2016 | 56902 | 0118 |
| VW | PASSAT CC B6 (357) | BZB, CDAA | 06/2008 | 01/2012 | 26607 | 0118 |
| VW | CC B7 (358) | CKMA | 11/2011 | 12/2016 | 108119 | 0118 |
| VW | PASSAT CC B6 (357) | CAWB, CBFA, CCTA, CCZA | 06/2008 | 01/2012 | 28284 | 0147 |
| VW | CC B7 (358) | CDAA | 11/2011 | 12/2016 | 27347 | 0118 |
| VW | PASSAT CC B6 (357) | CCZB | 11/2010 | 01/2012 | 11255 | 0155 |
| VW | CC B7 (358) | CCZB | 11/2011 | 12/2016 | 26740 | 0155 |
| VW | PASSAT CC B6 (357) | CBAA, CFFA | 06/2008 | 05/2011 | 28285 | 0100 |
| VW | PASSAT CC B6 (357) | CBAB, CFFB | 06/2008 | 01/2012 | 26609 | 0103 |
| VW | PASSAT CC B6 (357) | CBAB, CFFB | 08/2009 | 01/2012 | 31974 | 0103 |
| VW | CC B7 (358) | CFFB | 11/2011 | 12/2016 | 26752 | 0103 |
| VW | PASSAT CC B6 (357) | CBAC | 05/2009 | 11/2010 | 31972 | 0105 |
| VW | PASSAT CC B6 (357) | CBBB, CLLA , CFGB | 06/2008 | 01/2012 | 28283 | 0125 |
| VW | CC B7 (358) | CUVC | 05/2015 | 12/2016 | 115198 | 0110 |
| VW | CC B7 (358) | CFGB, CLLA | 11/2011 | 12/2016 | 26732 | 0125 |
| VW | PASSAT CC B6 (357) | CBBB, CFGB | 11/2009 | 01/2012 | 32797 | 0125 |
| VW | CC B7 (358) | CFGC | 12/2012 | 12/2016 | 56901 | 0130 |
| VW | CC B7 (358) | CFGC | 12/2012 | 12/2016 | 59367 | 0130 |
| VW | CC B7 (358) | CUWA | 05/2015 | 12/2016 | 115199 | 0135 |
| VW | PASSAT B7 (362) | CAXA | 08/2010 | 12/2014 | 214 | 0090 |
| VW | PASSAT B7 (362) | CDGA | 08/2010 | 12/2014 | 315 | 0110 |
| VW | PASSAT B7 (362) | CTHD | 11/2012 | 12/2014 | 57298 | 0118 |
| VW | PASSAT B7 (362) | CKMA | 11/2010 | 12/2014 | 10577 | 0118 |
| VW | PASSAT B7 (362) | CDAA | 08/2010 | 12/2014 | 269 | 0118 |
| VW | PASSAT B7 (362) | CCZB | 11/2010 | 12/2014 | 276 | 0155 |
| VW | PASSAT B7 (362) | CAYC | 08/2010 | 12/2014 | 293 | 0077 |
| VW | PASSAT B7 (362) | CFFA | 08/2010 | 12/2014 | 11228 | 0100 |
| VW | PASSAT B7 (362) | CFFB | 08/2010 | 12/2014 | 294 | 0103 |
| VW | PASSAT B7 (362) | CFFB | 08/2010 | 12/2014 | 295 | 0103 |
| VW | PASSAT B7 (362) | CLLA, CFGB | 08/2010 | 12/2014 | 296 | 0125 |
| VW | PASSAT B7 (362) | CFGB | 08/2010 | 01/2013 | 314 | 0125 |
| VW | PASSAT B7 (362) | CFGC | 12/2012 | 12/2014 | 56872 | 0130 |
| VW | PASSAT B7 (362) | CFGC | 01/2013 | 12/2014 | 59396 | 0130 |
| VW | PASSAT B7 Estate (365) | CAXA | 08/2010 | 12/2014 | 317 | 0090 |
| VW | PASSAT B7 Estate (365) | CDGA | 08/2010 | 12/2014 | 361 | 0110 |
| VW | PASSAT B7 Estate (365) | CTHD | 11/2012 | 12/2014 | 57348 | 0118 |
| VW | PASSAT B7 Estate (365) | CKMA | 11/2010 | 12/2014 | 10586 | 0118 |
| VW | PASSAT B7 Estate (365) | CDAA | 08/2010 | 12/2014 | 326 | 0118 |
| VW | PASSAT B7 Estate (365) | CCZB | 11/2010 | 12/2015 | 346 | 0155 |
| VW | PASSAT B7 Estate (365) | CAYC | 08/2010 | 12/2014 | 327 | 0077 |
| VW | PASSAT B7 Estate (365) | CFFA | 08/2010 | 12/2014 | 11233 | 0100 |
| VW | PASSAT B7 Estate (365) | CFFB | 08/2010 | 12/2014 | 356 | 0103 |
| VW | PASSAT B7 Estate (365) | CFFB | 08/2010 | 12/2014 | 357 | 0103 |
| VW | PASSAT B7 Estate (365) | CFGB, CLLA | 08/2010 | 12/2014 | 358 | 0125 |
| VW | PASSAT B7 Estate (365) | CFGB | 08/2010 | 01/2013 | 359 | 0125 |
| VW | PASSAT B7 Estate (365) | CFGC | 12/2012 | 12/2014 | 56871 | 0130 |
| VW | PASSAT B7 Estate (365) | CFGC | 01/2013 | 12/2014 | 59387 | 0130 |
| VW | SHARAN (7N1, 7N2) | CAVA, CNWB , CTHA | 05/2010 | 11/2015 | 33434 | 0110 |
| VW | SHARAN (7N1, 7N2) | CZDA | 05/2015 | 11/2022 | 115204 | 0110 |
| VW | SHARAN (7N1, 7N2) | CCZA | 12/2010 | 11/2015 | 6021 | 0147 |
| VW | SHARAN (7N1, 7N2) | DEDA | 05/2015 | 12/2020 | 115205 | 0162 |
| VW | SHARAN (7N1, 7N2) | DFLD, CFFE , CUVA | 05/2011 | 07/2019 | 12089 | 0085 |
| VW | SHARAN (7N1, 7N2) | CFFA | 05/2010 | 11/2015 | 34975 | 0100 |
| VW | SHARAN (7N1, 7N2) | CFFB | 05/2010 | 11/2015 | 33435 | 0103 |
| VW | SHARAN (7N1, 7N2) | CFFB | 05/2011 | 11/2015 | 10876 | 0103 |
| VW | SHARAN (7N1, 7N2) | DFLA, CUVC | 05/2015 | 10/2020 | 115206 | 0110 |
| VW | SHARAN (7N1, 7N2) | CFGB | 05/2010 | 01/2013 | 33675 | 0125 |
| VW | SHARAN (7N1, 7N2) | CFGC | 01/2013 | 06/2022 | 59444 | 0130 |
| VW | SHARAN (7N1, 7N2) | DFMA, CUWA | 05/2015 | 07/2018 | 115208 | 0135 |
| VW | TIGUAN (5N_) | CAXA | 08/2010 | 07/2018 | 33673 | 0090 |
| VW | TIGUAN (5N_) | CZDB | 05/2015 | 07/2018 | 113334 | 0092 |
| VW | TIGUAN (5N_) | BWK, CAVA , CTHA | 05/2008 | 07/2018 | 29996 | 0110 |
| VW | TIGUAN (5N_) | BWK, CAVA , CTHA | 09/2007 | 07/2018 | 23182 | 0110 |
| VW | TIGUAN (5N_) | CAVD, CTHD | 05/2011 | 07/2018 | 10929 | 0118 |
| VW | TIGUAN (5N_) | CAVD, CTHD | 05/2011 | 07/2018 | 10932 | 0118 |
| VW | TIGUAN (5N_) | CZDA | 05/2015 | 07/2018 | 116130 | 0110 |
| VW | TIGUAN (5N_) | CFFD | 05/2010 | 07/2018 | 33674 | 0081 |
| VW | TIGUAN (5N_) | CBAB, CFFB | 03/2008 | 07/2018 | 29997 | 0103 |
| VW | TIGUAN (5N_) | CBAB, CLJA , CFFB | 09/2007 | 07/2018 | 23178 | 0103 |
| VW | TIGUAN (5N_) | CUVC | 05/2015 | 07/2018 | 112955 | 0110 |
| VW | EOS (1F7, 1F8) | CAXA | 11/2007 | 08/2015 | 31096 | 0090 |
| VW | EOS (1F7, 1F8) | CAVD, CTHD | 05/2008 | 08/2015 | 31100 | 0118 |
| VW | EOS (1F7, 1F8) | BLF | 06/2006 | 05/2008 | 18971 | 0085 |
| VW | EOS (1F7, 1F8) | BVY, BVZ | 03/2006 | 05/2008 | 18974 | 0110 |
| VW | EOS (1F7, 1F8) | BWA, BPY, CCTA, CBFA, CAWB , BPY, CCZA | 03/2006 | 08/2015 | 18976 | 0147 |
| VW | EOS (1F7, 1F8) | CCZB | 11/2009 | 08/2015 | 32160 | 0155 |
| VW | EOS (1F7, 1F8) | BUB, CBRA | 06/2006 | 05/2009 | 18985 | 0184 |
| VW | EOS (1F7, 1F8) | CDVA | 05/2009 | 11/2010 | 31105 | 0191 |
| VW | EOS (1F7, 1F8) | BMM | 06/2006 | 05/2008 | 18989 | 0103 |
| VW | EOS (1F7, 1F8) | CBAB, CFFB | 05/2008 | 08/2015 | 33645 | 0103 |
| VW | CC B7 (358) | 11/2011 | 12/2016 | 56900 | 0100 | |
| VW | SHARAN Kasten/Großraumlimousine (7N1, 7N2) | 05/2010 | 11/2015 | 143004 | 0110 | |
| VW | SHARAN Kasten/Großraumlimousine (7N1, 7N2) | 12/2010 | 11/2015 | 143005 | 0147 | |
| VW | SHARAN Kasten/Großraumlimousine (7N1, 7N2) | 05/2011 | 11/2015 | 143006 | 0085 | |
| VW | SHARAN Kasten/Großraumlimousine (7N1, 7N2) | 05/2010 | 05/2011 | 143007 | 0100 | |
| VW | SHARAN Kasten/Großraumlimousine (7N1, 7N2) | 05/2010 | 11/2015 | 143008 | 0103 | |
| VW | SHARAN Kasten/Großraumlimousine (7N1, 7N2) | 08/2010 | 01/2013 | 143009 | 0125 | |
| VW | TIGUAN VAN (5N_) | 08/2010 | 05/2011 | 143019 | 0090 | |
| VW | TIGUAN VAN (5N_) | 05/2008 | 05/2010 | 143020 | 0110 | |
| VW | TIGUAN VAN (5N_) | 09/2012 | 07/2018 | 143021 | 0118 | |
| VW | TIGUAN VAN (5N_) | 05/2010 | 07/2011 | 143040 | 0081 | |
| VW | TIGUAN VAN (5N_) | 11/2009 | 07/2018 | 143041 | 0103 | |
| VW | PASSAT B7 Kasten/Kombi (365) | 08/2010 | 12/2014 | 152989 | 0112 | |
| VW | PASSAT B7 Kasten/Kombi (365) | 08/2010 | 12/2014 | 152990 | 0100 | |
| VW | PASSAT B7 Kasten/Kombi (365) | 08/2010 | 12/2014 | 152991 | 0130 | |
| AUDI | Q3 (8UB, 8UG) | CZDB | 07/2016 | 10/2018 | 120595 | 0092 |
| AUDI | Q3 (8UB, 8UG) | CHPB, CZEA , CZDA | 10/2013 | 10/2018 | 100035 | 0110 |
| AUDI | Q3 (8UB, 8UG) | CULB | 05/2015 | 10/2018 | 113345 | 0132 |
| AUDI | Q3 (8UB, 8UG) | CULB | 11/2014 | 10/2018 | 110615 | 0132 |
| AUDI | Q3 (8UB, 8UG) | 11/2014 | 10/2018 | 109423 | 0162 | |
| AUDI | Q3 (8UB, 8UG) | CUVD | 03/2015 | 10/2018 | 112266 | 0088 |
| AUDI | Q3 (8UB, 8UG) | CFFA | 09/2011 | 10/2018 | 12035 | 0100 |
| AUDI | Q3 (8UB, 8UG) | CFFB, CLJA | 09/2011 | 10/2018 | 11793 | 0103 |
| AUDI | Q3 (8UB, 8UG) | CFFB | 01/2012 | 10/2018 | 14761 | 0103 |
| AUDI | Q3 (8UB, 8UG) | DBBA, DFTA , CUVC | 11/2014 | 10/2018 | 109420 | 0110 |
| AUDI | Q3 (8UB, 8UG) | DFTA, CUVC | 11/2014 | 10/2018 | 109421 | 0110 |
| AUDI | Q3 (8UB, 8UG) | CFGC | 06/2011 | 04/2015 | 59273 | 0130 |
| AUDI | Q3 (8UB, 8UG) | CFGC, CLLB | 06/2011 | 10/2018 | 11791 | 0130 |
| AUDI | Q3 (8UB, 8UG) | CUWA | 05/2015 | 10/2018 | 113346 | 0135 |
| AUDI | Q3 (8UB, 8UG) | CYLA, CUWA | 11/2014 | 10/2018 | 109422 | 0135 |
| SEAT | ALHAMBRA (710, 711) | CAVA, CNWB , CTHA | 06/2010 | 04/2015 | 519 | 0110 |
| SEAT | ALHAMBRA (710, 711) | CCZA | 11/2010 | 05/2012 | 6029 | 0147 |
| SEAT | ALHAMBRA (710, 711) | CUVA, CFFE | 05/2011 | 12/2022 | 10615 | 0085 |
| SEAT | ALHAMBRA (710, 711) | CFFA | 06/2010 | 05/2011 | 10625 | 0100 |
| SEAT | ALHAMBRA (710, 711) | CFFB | 06/2010 | 04/2015 | 520 | 0103 |
| SEAT | ALHAMBRA (710, 711) | CFFB | 05/2011 | 04/2015 | 10621 | 0103 |
| SEAT | ALHAMBRA (710, 711) | CFGB | 06/2010 | 02/2013 | 521 | 0125 |
| SEAT | ALHAMBRA (710, 711) | CFGC | 11/2012 | 12/2022 | 58359 | 0130 |
| SEAT | ALHAMBRA (710, 711) | 11/2012 | 04/2015 | 59056 | 0118 |
| Manufacturer | Comparison number |
|---|---|
| SEAT | 3C0 615 612H |
| SKODA | 3C0 615 612H |
| VW | 3C0 615 612H |
| VAG | 3C0 615 612H |
| AUDI | 3C0 615 612H |
| SEAT | 5N0 615 612C |
| SKODA | 5N0 615 612C |
| VW | 5N0 615 612C |
| VAG | 5N0 615 612C |
| AUDI | 5N0 615 612C |
| SEAT | 5N0 615 612 |
| SKODA | 5N0 615 612 |
| VW | 5N0 615 612 |
| VAG | 5N0 615 612 |
| AUDI | 5N0 615 612 |
Jürgen Liebisch GmbH
Wilhelm-Bergner-Straße 11c
21509 Glinde
AIC Germany is a trademark of
Jürgen Liebisch GmbH.
Fon.: +49 40 253066-0
Fax: +49 40 253066-77
Email:
AIC products are exclusively distributed by wholesalers.
If you are a consumer or a car repair shop, please contact your local
vehicle parts dealer.
